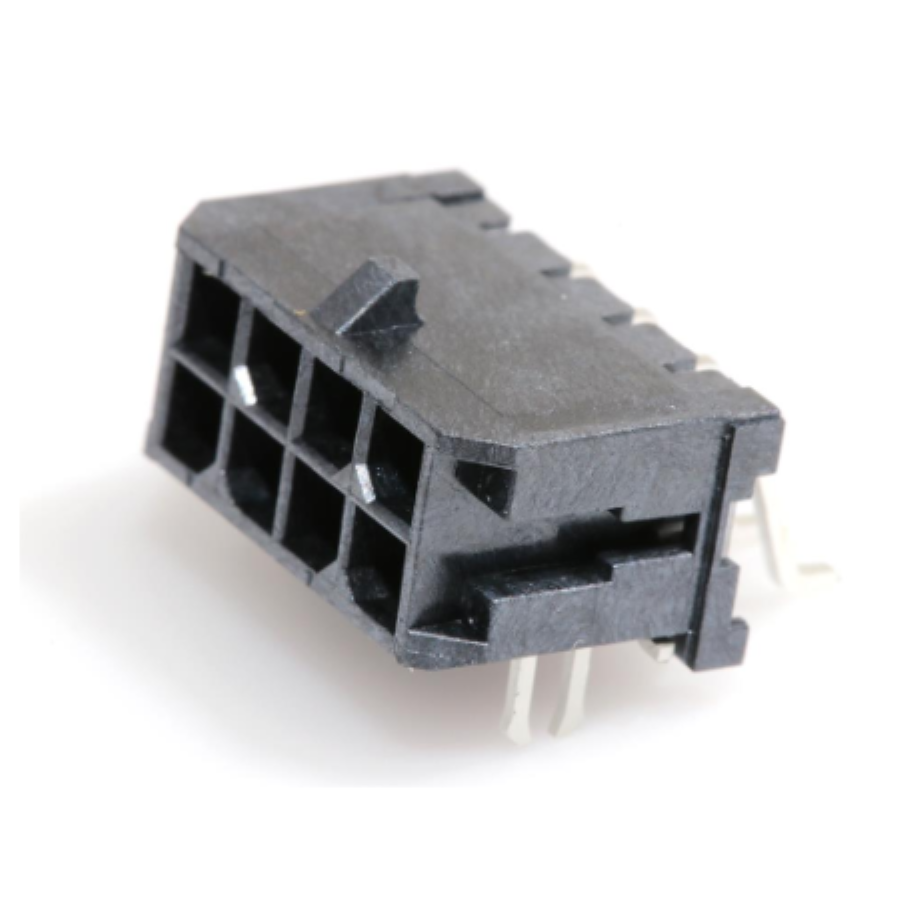

43045-0806
Manufacturer:
Molex
Mfr.Part #:
43045-0806
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Header Number of Positions:8 Pitch:3 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Reel |
| Voltage Rating | 600 V |
| Halogen Free | Low Halogen |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 3 mm |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 3 mm |
| Current Rating | 5 A |
| Max Voltage Rating (DC) | 250.25 kV |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 8 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Black |
| Gender | Pin (Male) |
| Number of Contacts | 8 |
| Connector Type | Header |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Row Spacing | 3 mm |
| Housing Material | Thermoplastic |
| Contact Resistance | 10 mΩ |
| Plating | Tin |
| glow wire compliant | Compliant |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
Stock: 2172
Distributors
pcbx
pcbxUnit Price$2.45280
Ext.Price$2.45280
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.45280 | $2.45280 |
| 10 | $2.08432 | $20.84320 |
| 25 | $1.93379 | $48.34475 |
| 50 | $1.79413 | $89.70650 |
| 100 | $1.66455 | $166.45500 |
| 300 | $1.57202 | $471.60600 |
| 500 | $1.48463 | $742.31500 |
| 1000 | $1.40209 | $1402.09000 |
