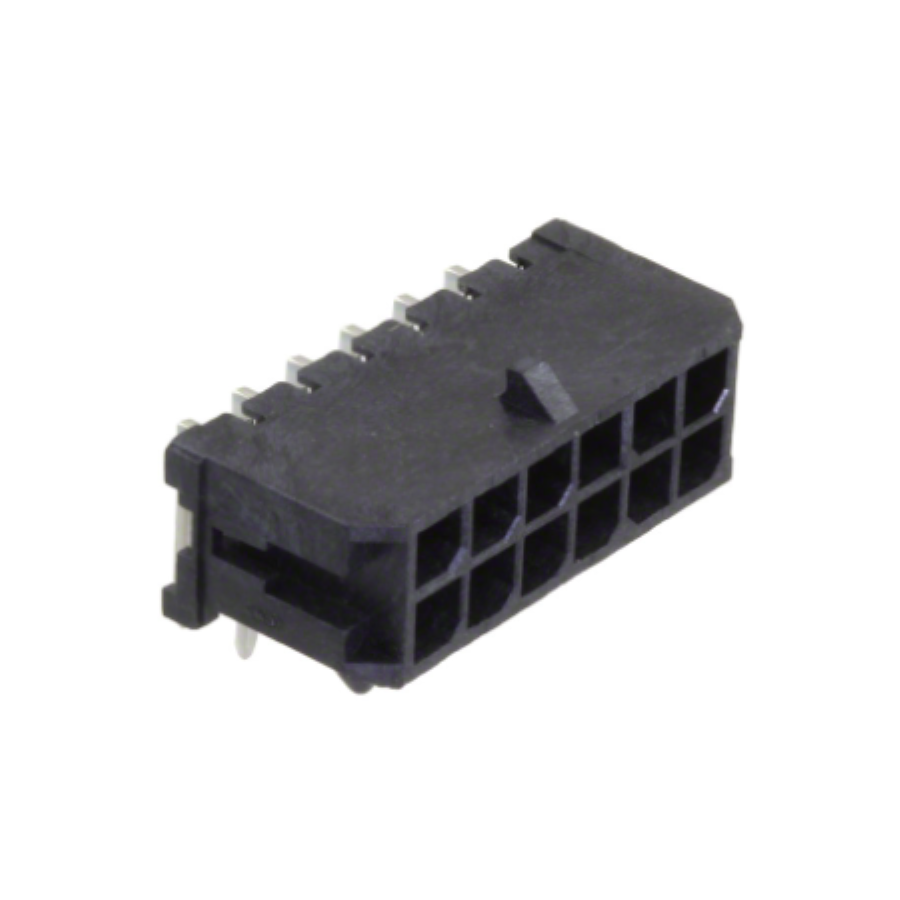

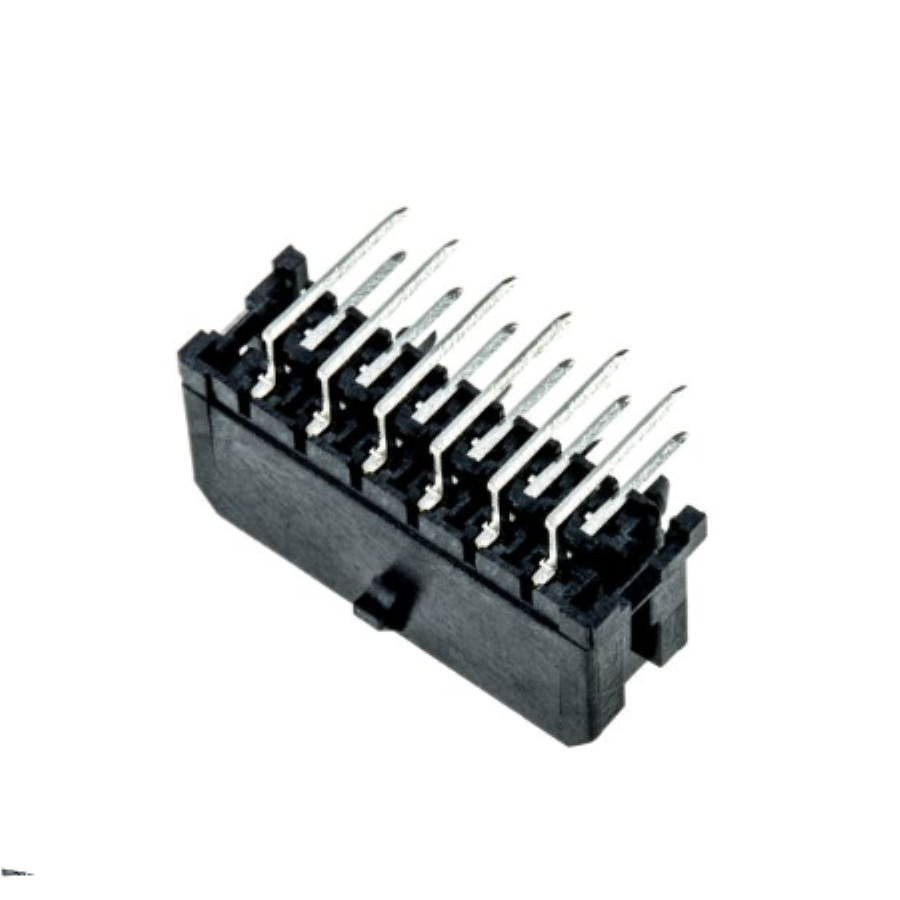

43045-1200
Manufacturer:
Molex
Mfr.Part #:
43045-1200
Datasheet:
Description:
Headers and Wire Housings Through Hole Shrouded Number of Positions:12 Pitch:3 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Length | 22.15 mm |
| Termination | Solder |
| Diameter | 3 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 250 V |
| Number of Pins | 12 |
| Height | 8.77 mm |
| Material | Polyester |
| Packaging | Bulk |
| Voltage Rating | 600 V |
| Depth | 12.2 mm |
| Halogen Free | Low Halogen |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 3 mm |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass, Tin |
| Pitch | 3 mm |
| Current Rating | 5 A |
| Max Current Rating | 5 A |
| Max Voltage Rating (DC) | 250.25 kV |
| Working Voltage | 250 V |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA, TUV, UL |
| Number of Circuits | 12 |
| Orientation | Right Angle, Vertical |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Black |
| Gender | Male |
| Number of Contacts | 12 |
| Number of Poles | 12 |
| Connector Type | Shrouded |
| Number of Positions | 12 |
| Number of Rows | 2 |
| Row Spacing | 3 mm |
| Housing Material | Thermoplastic |
| Contact Resistance | 10 mΩ |
| Housing Color | Black |
| Plating | Tin |
| glow wire compliant | Compliant |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
Stock: 732
Distributors
pcbx
pcbxUnit Price$1.12680
Ext.Price$1.12680
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.12680 | $1.12680 |
| 10 | $1.06353 | $10.63530 |
| 25 | $1.04674 | $26.16850 |
| 50 | $1.03022 | $51.51100 |
| 100 | $1.01394 | $101.39400 |
