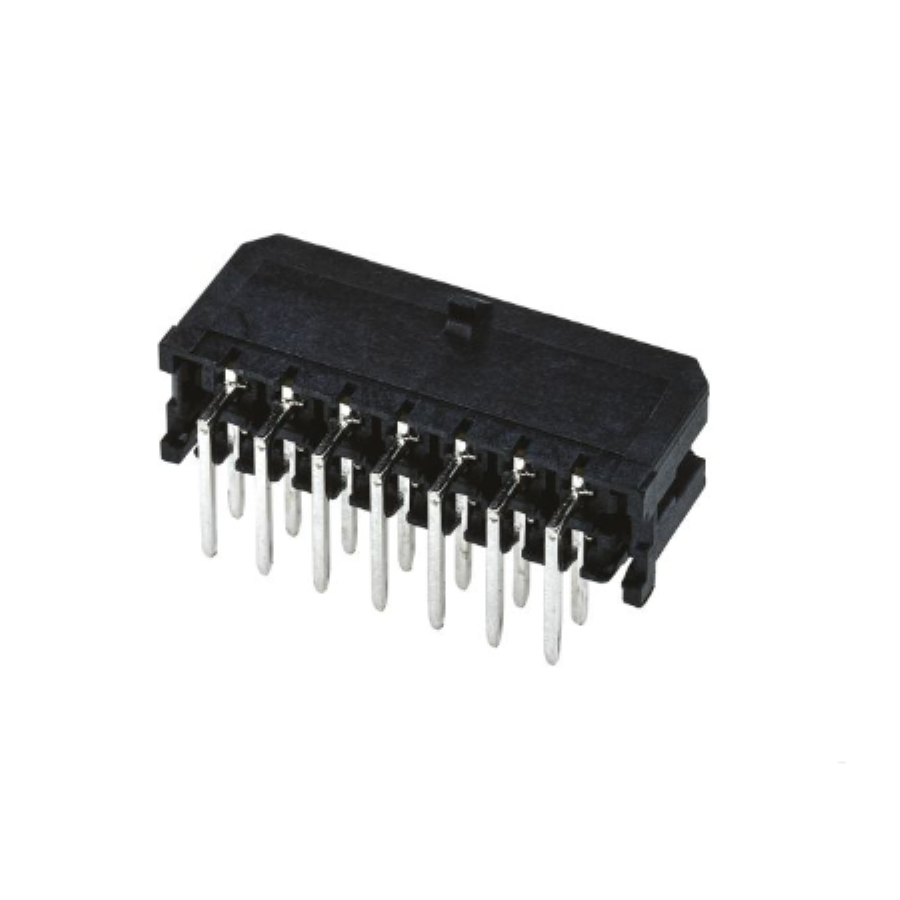

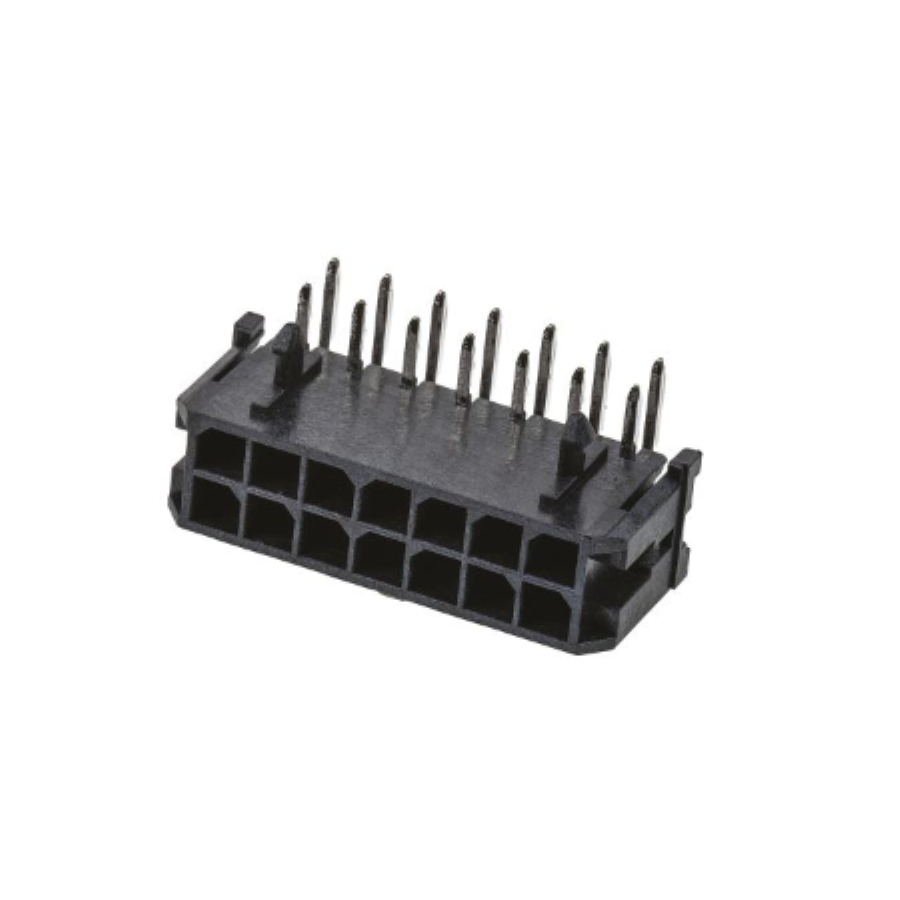

43045-1400
Manufacturer:
Molex
Mfr.Part #:
43045-1400
Datasheet:
Description:
Headers and Wire Housings Through Hole Plug, Socket Number of Positions:14 Pitch:3 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Length | 25.15 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 250 V |
| Number of Pins | 14 |
| Height | 8.77 mm |
| Material | Polyester |
| Packaging | Tray |
| Voltage Rating | 600 V |
| Depth | 12.2 mm |
| Halogen Free | Low Halogen |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 3 mm |
| Insulation Resistance | 1 GΩ |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 3 mm |
| Current Rating | 5 A |
| Max Current Rating | 5 A |
| Max Voltage Rating (DC) | 250.25 kV |
| Working Voltage | 250 V |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA, TUV, UL |
| Number of Circuits | 14 |
| Orientation | Right Angle, Vertical |
| Operating Supply Voltage | 250 V |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Black |
| Gender | Male |
| Number of Contacts | 14 |
| Number of Poles | 14 |
| Connector Type | Plug, Socket |
| Number of Positions | 14 |
| Number of Rows | 2 |
| Row Spacing | 3 mm |
| Housing Material | Thermoplastic |
| Contact Resistance | 10 mΩ |
| Housing Color | Black |
| Plating | Tin |
| glow wire compliant | Compliant |
| Contact Gender | Male |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
Stock: 3995
Distributors
pcbx
pcbxUnit Price$2.42800
Ext.Price$2.42800
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.42800 | $2.42800 |
| 10 | $1.98344 | $19.83440 |
| 25 | $1.91504 | $47.87600 |
| 50 | $1.58333 | $79.16650 |
| 100 | $1.50211 | $150.21100 |
| 300 | $1.46400 | $439.20000 |
| 500 | $1.42687 | $713.43500 |
