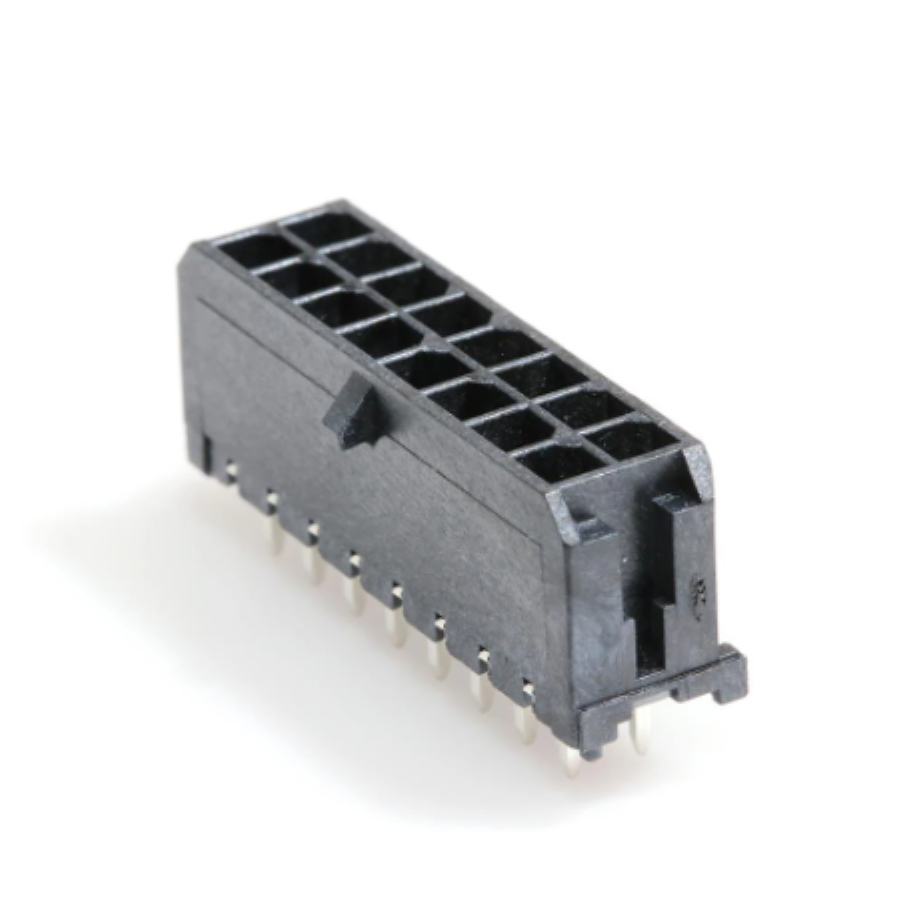

43045-1627
Manufacturer:
Molex
Mfr.Part #:
43045-1627
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:16 Pitch:3 mm
| Parameter | Value |
|---|---|
| Length | 28.15 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Height | 10.16 mm |
| Packaging | Tray |
| Voltage Rating | 600 V |
| Depth | 8.77 mm |
| RoHS | Compliant |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 3 mm |
| Number of Terminals | 16 |
| Current Rating | 5 A |
| Number of Circuits | 16 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Black |
| Gender | Pin (Male) |
| Number of Contacts | 16 |
| Connector Type | Header |
| Number of Positions | 16 |
| Number of Rows | 2 |
| Row Spacing | 3 mm |
| Housing Material | Polymer |
| Number of Ports | 1 |
| Fastening Type | Ramp |
| Contact Resistance | 10 mΩ |
| Housing Color | Black |
| Plating | Tin |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
| Termination Post Length | 3.18 mm |
