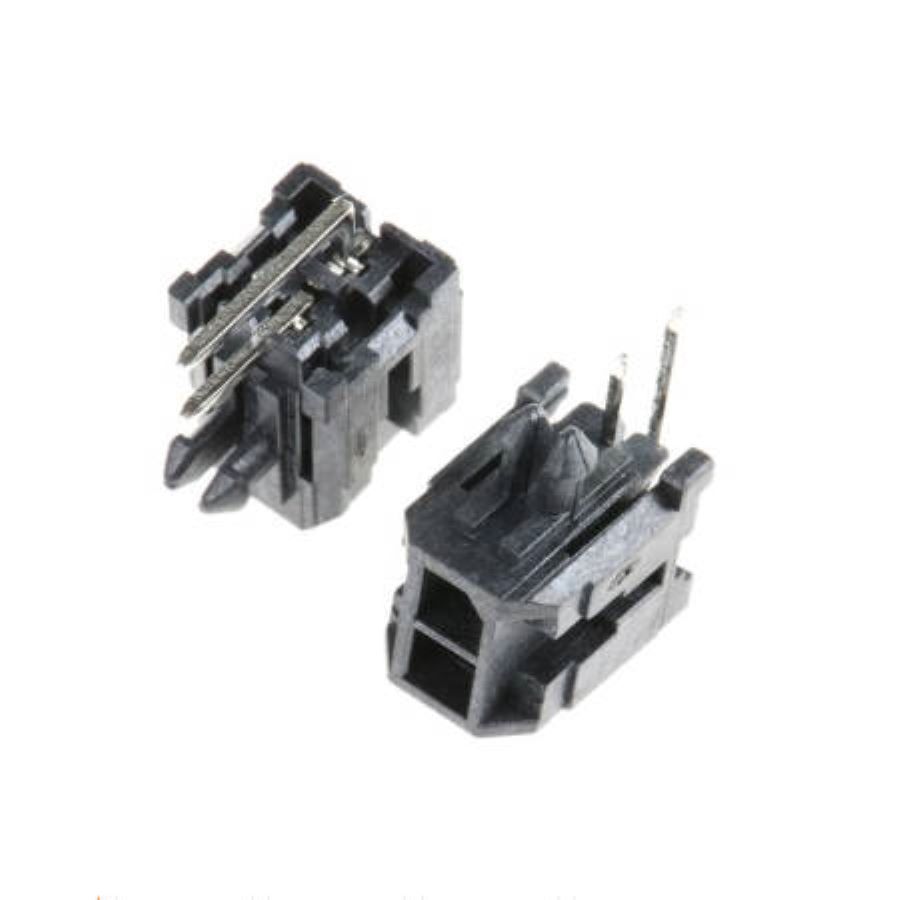

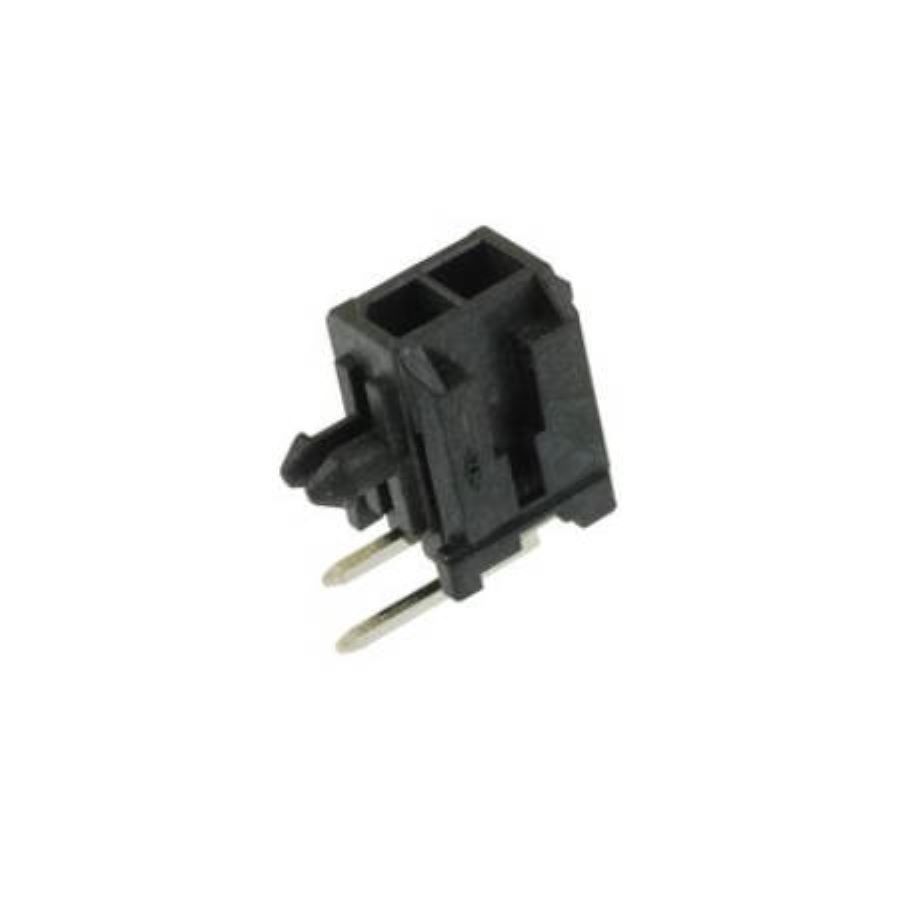

430450200
Manufacturer:
Molex
Mfr.Part #:
430450200
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:2 Pitch:3 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Termination | Through Hole |
| Diameter | 3 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 250 V |
| Number of Pins | 2 |
| Height | 9.27 mm |
| Material | Thermoplastic |
| Packaging | Tray |
| Voltage Rating | 600 V |
| Halogen Free | Low Halogen |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 3 mm |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass, Tin |
| Pitch | 3 mm |
| Current Rating | 5 A |
| Max Voltage Rating (DC) | 600 V |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA, TUV, UL |
| Number of Circuits | 2 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 8 months ago) |
| Color | Black |
| Gender | Male |
| Number of Contacts | 2 |
| Connector Type | Header |
| Number of Positions | 2 |
| Number of Rows | 2 |
| Row Spacing | 3 mm |
| Housing Material | Thermoplastic |
| Contact Resistance | 10 mΩ |
| Housing Color | Black |
| Plating | Tin |
| glow wire compliant | Compliant |
| Contact Gender | Male |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 8 months ago) |
| Country of Origin | US |
| Termination Post Length | 3.18 mm |
Stock: 21317
Distributors
pcbx
pcbxUnit Price$0.32602
Ext.Price$0.32602
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.32602 | $0.32602 |
| 10 | $0.29721 | $2.97210 |
| 50 | $0.27095 | $13.54750 |
| 100 | $0.24701 | $24.70100 |
| 500 | $0.22519 | $112.59500 |
| 1000 | $0.20529 | $205.29000 |
| 3000 | $0.18715 | $561.45000 |
| 5000 | $0.17062 | $853.10000 |
