430451000
Manufacturer:
Molex
Mfr.Part #:
430451000
Datasheet:
Description:

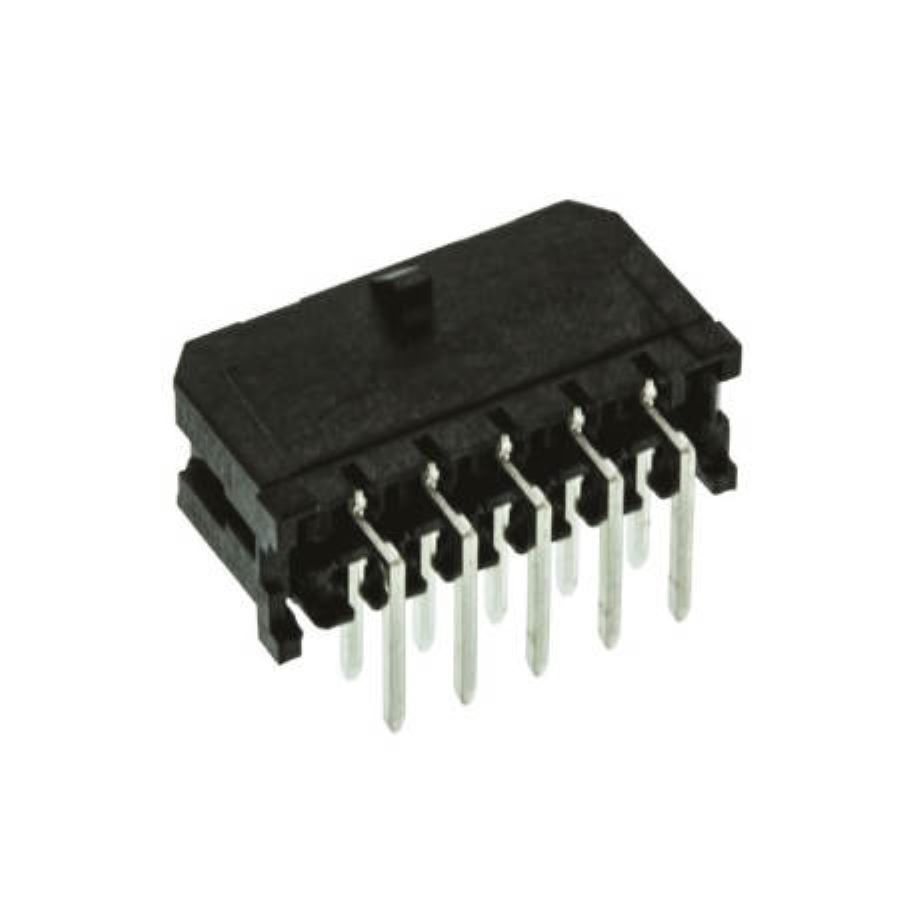

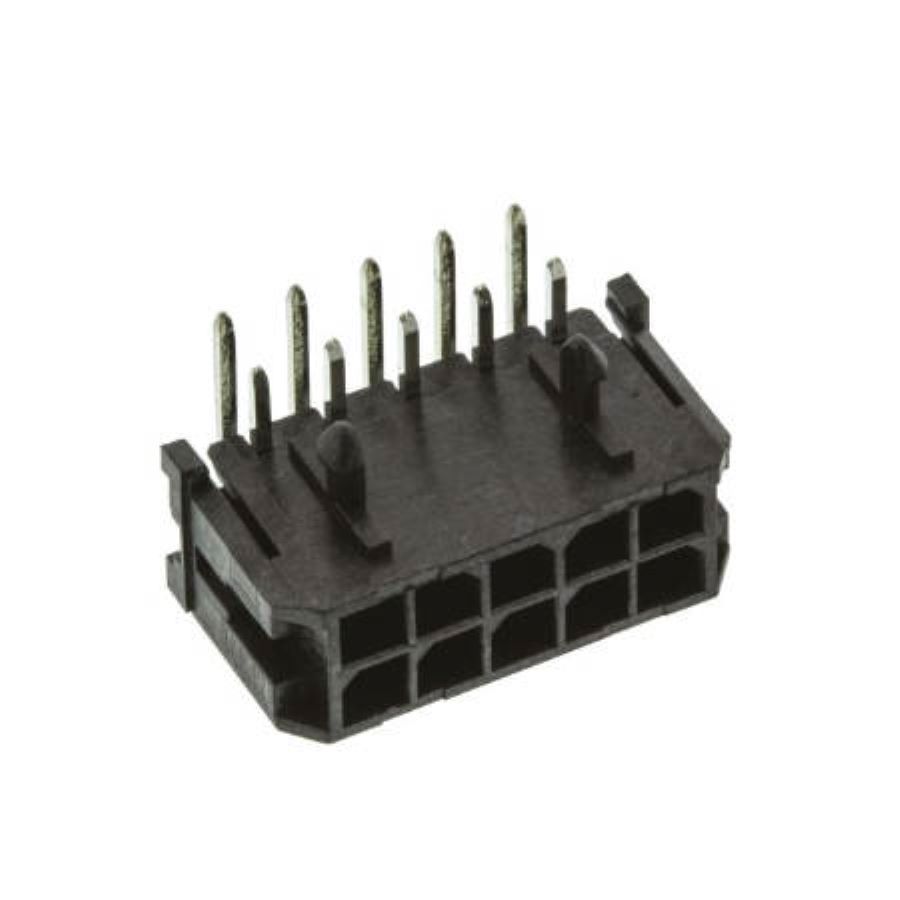

Headers and Wire Housings Through Hole Power, Rectangular Number of Positions:10 Pitch:3 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Length | 19.15 mm |
| Termination | Solder |
| Diameter | 3 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 250 V |
| Number of Pins | 10 |
| Height | 8.77 mm |
| Material | Polyester |
| Packaging | Tray |
| Voltage Rating | 250 V |
| Depth | 12.2 mm |
| Halogen Free | Low Halogen |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 3 mm |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 3 mm |
| Current Rating | 5 A |
| Max Current Rating | 5 A |
| Max Voltage Rating (DC) | 600 V |
| Working Voltage | 250 V |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA, TUV, UL |
| Number of Circuits | 10 |
| Orientation | Right Angle, Vertical |
| Lifecycle Status | Production (Last Updated: 8 months ago) |
| Color | Black |
| Gender | Male |
| Number of Contacts | 10 |
| Number of Poles | 10 |
| Connector Type | Power, Rectangular |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Row Spacing | 3 mm |
| Housing Material | Thermoplastic |
| Contact Resistance | 10 mΩ |
| Housing Color | Black |
| Plating | Tin |
| glow wire compliant | Compliant |
| Schedule B | 8536695050|8536694040|8536694040 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 8 months ago) |
| Country of Origin | US |
Stock: 3948
Distributors
pcbx
pcbxUnit Price$0.71578
Ext.Price$0.71578
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.71578 | $0.71578 |
| 10 | $0.58320 | $5.83200 |
| 25 | $0.54673 | $13.66825 |
| 50 | $0.51254 | $25.62700 |
| 100 | $0.48049 | $48.04900 |
| 300 | $0.45044 | $135.13200 |
| 500 | $0.42227 | $211.13500 |
| 1000 | $0.39586 | $395.86000 |
