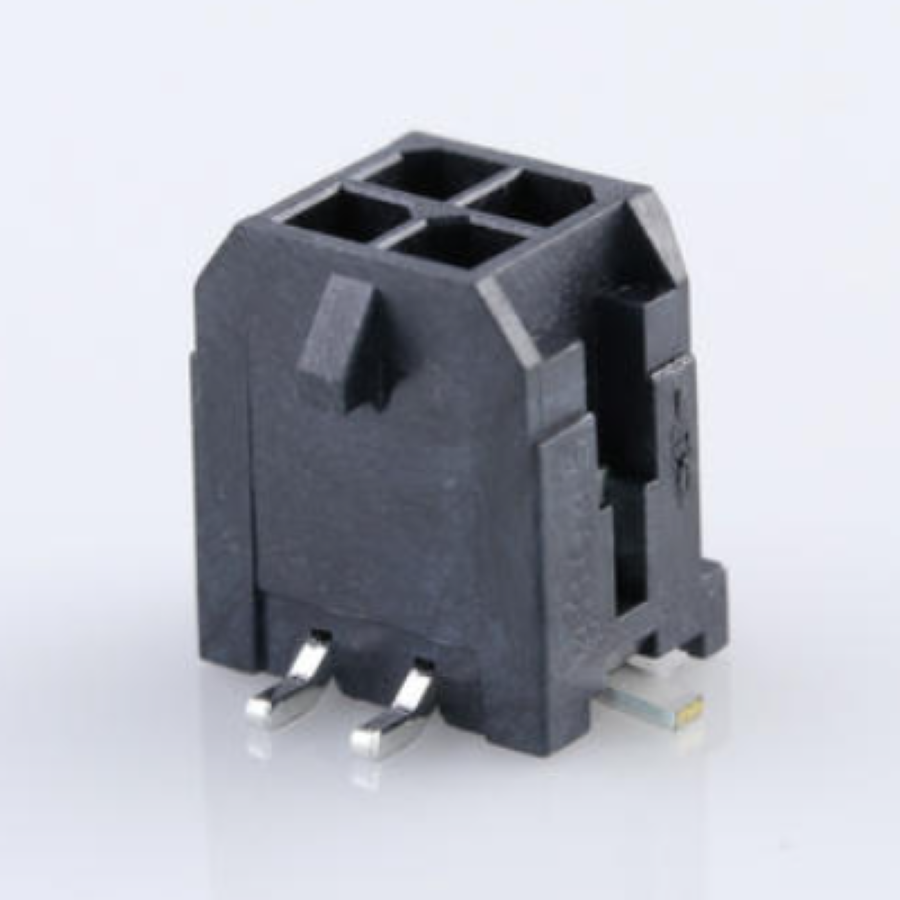

430451018
Manufacturer:
Molex
Mfr.Part #:
430451018
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Male Pin, Rectangular Number of Positions:10 Pitch:3 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Termination | Solder |
| Diameter | 3 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 250 V |
| Number of Pins | 10 |
| Material | Glass, Polymer |
| Packaging | Reel |
| Voltage Rating | 250 V |
| Halogen Free | Low Halogen |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 3 mm |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 3 mm |
| Current Rating | 5 A |
| Max Voltage Rating (DC) | 600 V |
| Working Voltage | 250 V |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 10 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 8 months ago) |
| Color | Black |
| Gender | Male |
| Number of Contacts | 10 |
| Number of Poles | 10 |
| Connector Type | Male Pin, Rectangular |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Row Spacing | 2.9972 mm |
| Housing Material | Thermoplastic |
| Fastening Type | Ramp |
| Contact Resistance | 10 mΩ |
| Housing Color | Black |
| Plating | Tin |
| glow wire compliant | Compliant |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 8 months ago) |
| Country of Origin | US |
Stock: 2601
Distributors
pcbx
pcbxUnit Price$0.47741
Ext.Price$0.47741
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.47741 | $0.47741 |
| 10 | $0.37987 | $3.79870 |
| 25 | $0.34649 | $8.66225 |
| 50 | $0.31605 | $15.80250 |
| 100 | $0.28828 | $28.82800 |
| 300 | $0.27589 | $82.76700 |
| 500 | $0.26403 | $132.01500 |
| 1000 | $0.25036 | $250.36000 |
