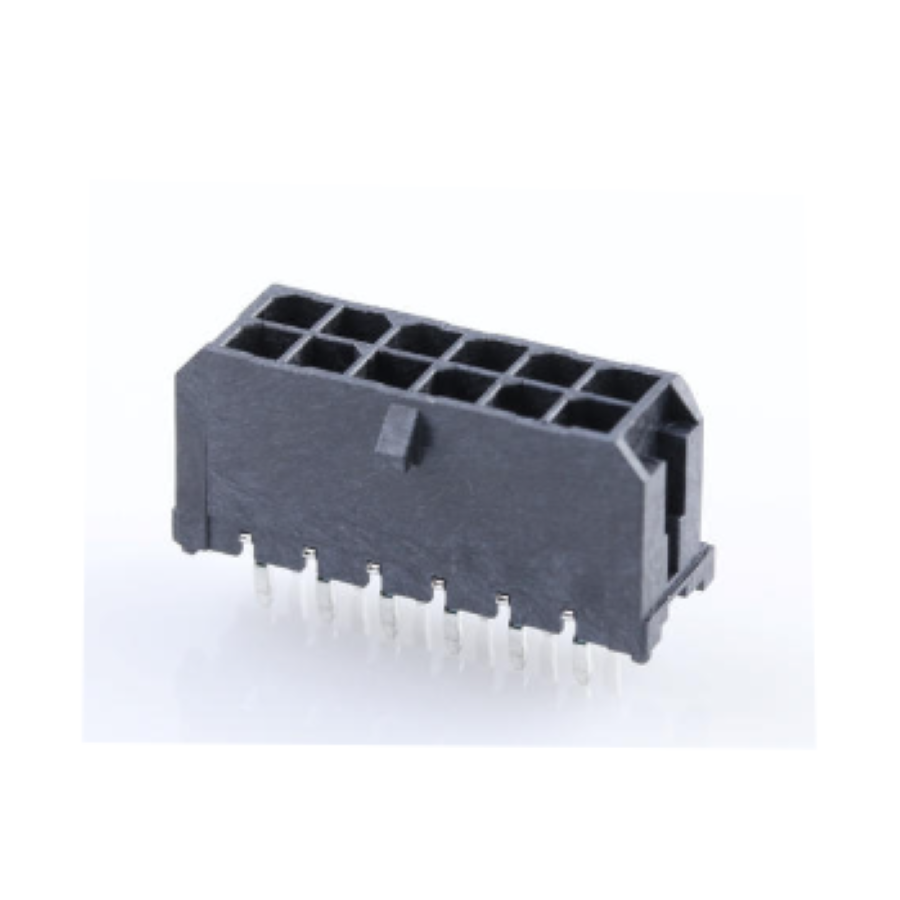

430452012
Manufacturer:
Molex
Mfr.Part #:
430452012
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:20 Pitch:3 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Length | 34.15 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 250 V |
| Number of Pins | 20 |
| Height | 9.91 mm |
| Material | Polyester |
| Packaging | Tray |
| Voltage Rating | 600 V |
| Depth | 8.77 mm |
| Halogen Free | Low Halogen |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 3 mm |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 3 mm |
| Current Rating | 5 A |
| Max Current Rating | 5 A |
| Max Voltage Rating (DC) | 600 V |
| Working Voltage | 250 V |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 20 |
| Orientation | Vertical, Right Angle |
| Operating Supply Voltage | 250 V |
| Lifecycle Status | Production (Last Updated: 8 months ago) |
| Color | Black |
| Gender | Male |
| Number of Contacts | 20 |
| Number of Poles | 20 |
| Connector Type | Header |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Row Spacing | 3 mm |
| Housing Material | Thermoplastic |
| Contact Resistance | 10 mΩ |
| Housing Color | Black |
| Plating | Tin |
| glow wire compliant | Compliant |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 8 months ago) |
| Country of Origin | US |
