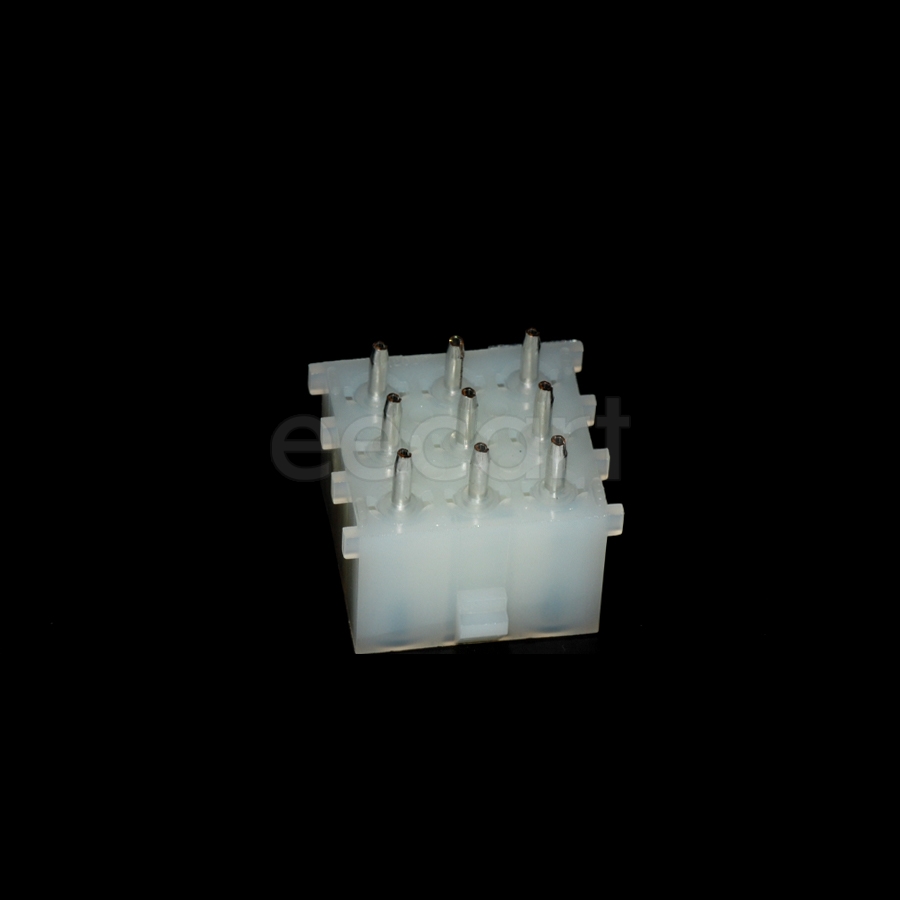

43255-0075
Manufacturer:
Molex
Mfr.Part #:
43255-0075
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:4 Pitch:6.35 mm
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Tray |
| Voltage Rating | 600 V |
| RoHS | Compliant |
| Lead Pitch | 6.35 mm |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 6.35 mm |
| Current Rating | 12 A |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 4 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Gender | Pin (Male) |
| Number of Contacts | 4 |
| Connector Type | Header |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Housing Material | Polyester |
| Max Voltage Rating (AC) | 600 V |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Contact Gender | Male |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | IN |
| Termination Post Length | 4.3 mm |
Stock: 4214
Distributors
pcbx
pcbxUnit Price$0.45653
Ext.Price$0.45653
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.45653 | $0.45653 |
| 10 | $0.33599 | $3.35990 |
| 25 | $0.32146 | $8.03650 |
| 50 | $0.30748 | $15.37400 |
| 100 | $0.29410 | $29.41000 |
| 300 | $0.27401 | $82.20300 |
| 500 | $0.25529 | $127.64500 |
| 1000 | $0.23785 | $237.85000 |
| 3000 | $0.22160 | $664.80000 |
| 5000 | $0.20646 | $1032.30000 |
| 10000 | $0.19236 | $1923.60000 |
