436450300
Manufacturer:
Molex
Mfr.Part #:
436450300
Datasheet:
Description:

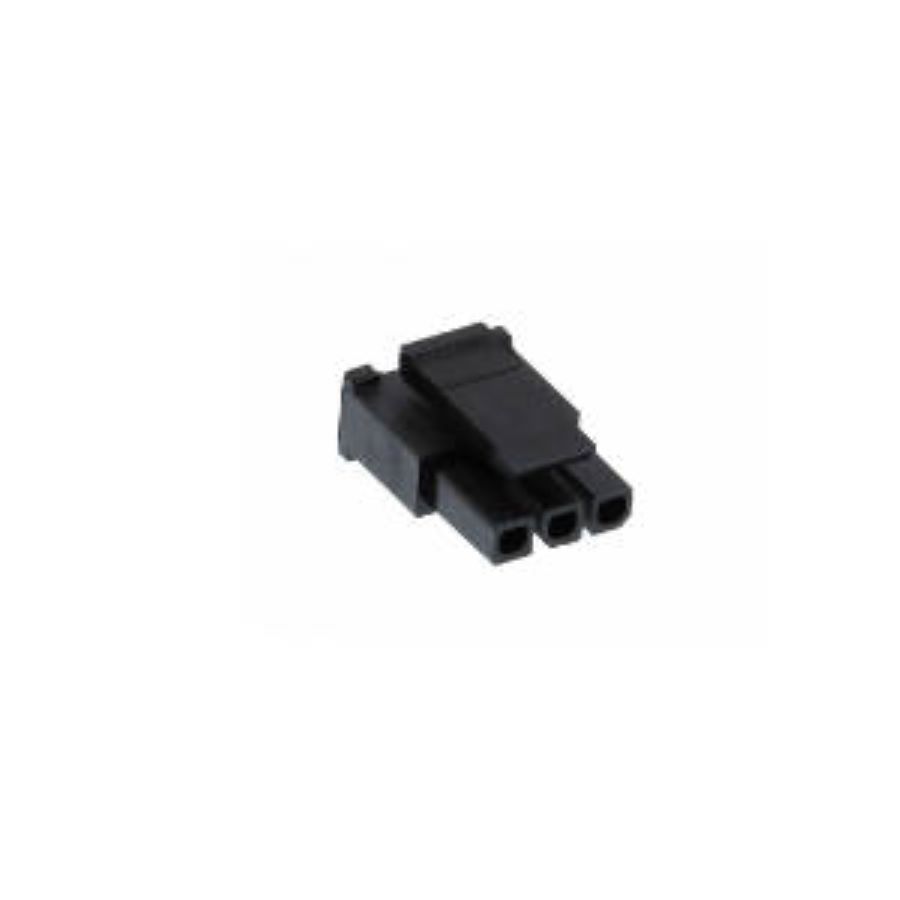

Headers and Wire Housings Free Hanging Power, Rectangular, Socket Number of Positions:3 Pitch:3 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Length | 9.85 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 250 V |
| Number of Pins | 3 |
| Height | 5.3 mm |
| Material | Polyester |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| Depth | 14 mm |
| Halogen Free | Low Halogen |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Nickel |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 3 mm |
| Current Rating | 5 A |
| Working Voltage | 250 V |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA, TUV, UL |
| Number of Circuits | 3 |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 8 months ago) |
| Color | Black |
| Gender | Receptacle |
| Number of Contacts | 3 |
| Number of Poles | 3 |
| Connector Type | Power, Rectangular, Socket |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Housing Material | Polyester |
| Contact Resistance | 10 mΩ |
| Housing Color | Black |
| glow wire compliant | Non-compliant |
| Schedule B | 8536695050 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 8 months ago) |
| Country of Origin | US |
Stock: 8902
Distributors
pcbx
pcbxUnit Price$0.12317
Ext.Price$0.12317
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.12317 | $0.12317 |
| 10 | $0.11030 | $1.10300 |
| 50 | $0.09878 | $4.93900 |
| 100 | $0.08788 | $8.78800 |
| 500 | $0.07818 | $39.09000 |
| 1000 | $0.07453 | $74.53000 |
| 3000 | $0.07105 | $213.15000 |
| 5000 | $0.06772 | $338.60000 |
