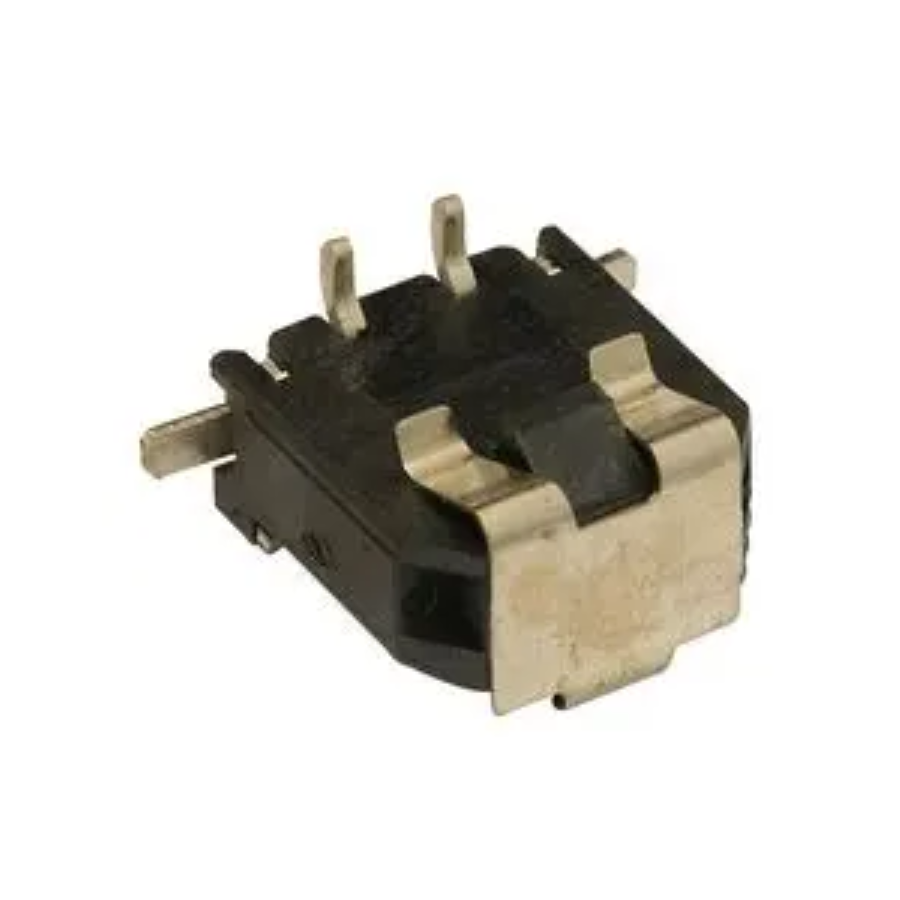

43650-0225
Manufacturer:
Molex
Mfr.Part #:
43650-0225
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Header Number of Positions:2 Pitch:3 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Length | 13.65 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Reel |
| Voltage Rating | 600 V |
| Depth | 5.57 mm |
| Halogen Free | Low Halogen |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 3 mm |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Brass |
| Pitch | 3 mm |
| Number of Terminals | 2 |
| Current Rating | 5 A |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 2 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 8 months ago) |
| Color | Black |
| Gender | Male |
| Number of Contacts | 2 |
| Connector Type | Header |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Thermoplastic |
| Number of Ports | 1 |
| Plating | Tin |
| glow wire compliant | Compliant |
| Mating Post Length | |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 8 months ago) |
| Country of Origin | US |
| Termination Post Length |
Stock: 8430
Distributors
pcbx
pcbxUnit Price$1.05755
Ext.Price$1.05755
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.05755 | $1.05755 |
| 10 | $1.04473 | $10.44730 |
| 25 | $1.02591 | $25.64775 |
| 50 | $0.99421 | $49.71050 |
| 100 | $0.96350 | $96.35000 |
| 300 | $0.96350 | $289.05000 |
| 500 | $0.96350 | $481.75000 |
| 1000 | $0.96350 | $963.50000 |
