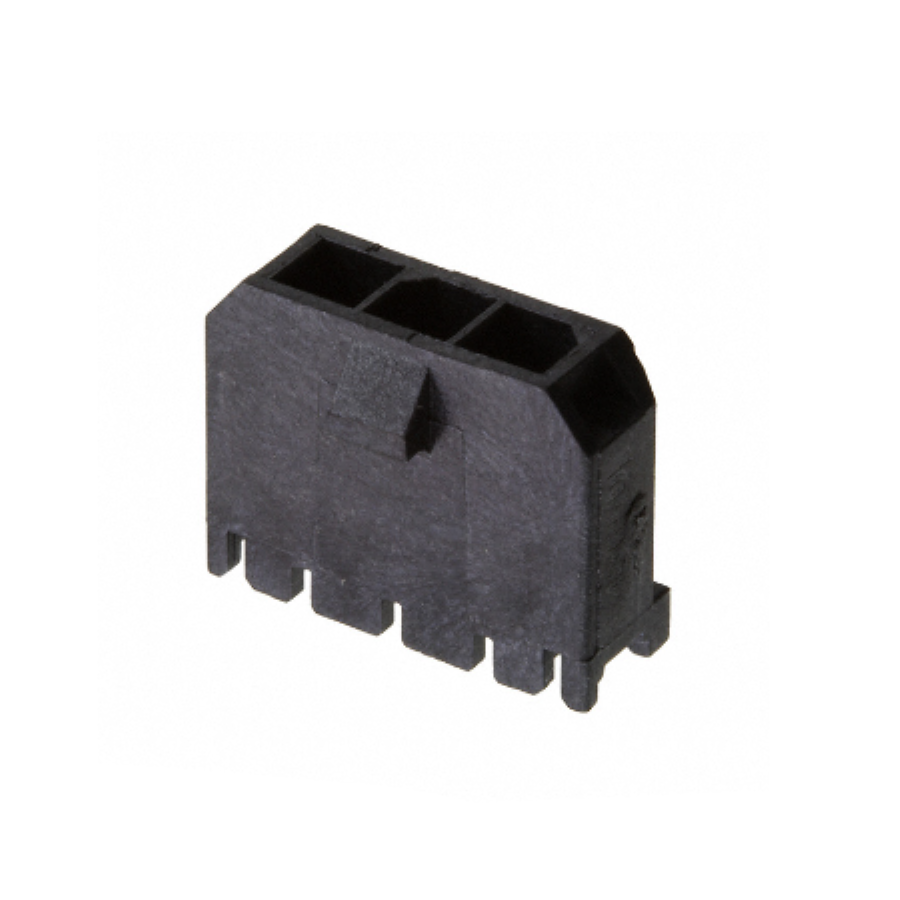

43650-0300
Manufacturer:
Molex
Mfr.Part #:
43650-0300
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:3 Pitch:3 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Length | 12.65 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 250 V |
| Number of Pins | 3 |
| Height | 6.07 mm |
| Packaging | Tray |
| Voltage Rating | 600 V |
| Depth | 9.9 mm |
| Halogen Free | Low Halogen |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 3 mm |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass, Tin |
| Pitch | 3 mm |
| Current Rating | 5 A |
| Max Current Rating | 5 A |
| Working Voltage | 250 V |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 3 |
| Orientation | Right Angle, Vertical |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Black |
| Gender | Pin (Male) |
| Number of Contacts | 3 |
| Number of Poles | 3 |
| Connector Type | Header |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Housing Material | Thermoplastic |
| Contact Resistance | 10 mΩ |
| Max Voltage Rating (AC) | 250 V |
| Housing Color | Black |
| Plating | Tin |
| glow wire compliant | Compliant |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
| Termination Post Length | 3.18 mm |
Stock: 3274
Distributors
pcbx
pcbxUnit Price$0.73182
Ext.Price$0.73182
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.73182 | $0.73182 |
| 10 | $0.57623 | $5.76230 |
| 25 | $0.47021 | $11.75525 |
| 50 | $0.46337 | $23.16850 |
| 100 | $0.43687 | $43.68700 |
| 300 | $0.40860 | $122.58000 |
| 500 | $0.38216 | $191.08000 |
