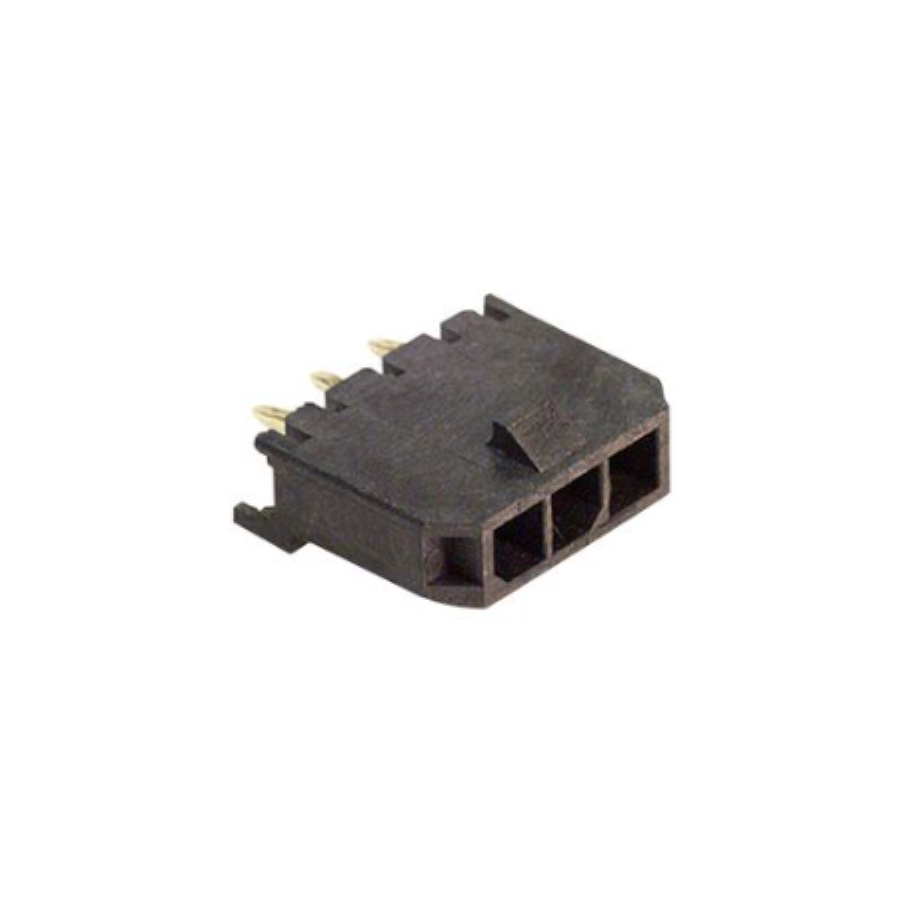

43650-0316
Manufacturer:
Molex
Mfr.Part #:
43650-0316
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:3 Pitch:3 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Length | 12.65 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Height | 17.81 mm |
| Packaging | Tray |
| Voltage Rating | 600 V |
| Depth | 5.57 mm |
| Halogen Free | Low Halogen |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 3 mm |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Brass |
| Pitch | 3 mm |
| Number of Terminals | 3 |
| Current Rating | 5 A |
| Max Voltage Rating (DC) | 250.25 kV |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 3 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Black |
| Gender | Pin (Male) |
| Number of Contacts | 3 |
| Connector Type | Header |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Housing Material | Thermoplastic |
| Number of Ports | 1 |
| Contact Resistance | 30 mΩ |
| Max Voltage Rating (AC) | 250 V |
| Housing Color | Black |
| Plating | Tin |
| glow wire compliant | Compliant |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
| Termination Post Length | 3.18 mm |
Stock: 3364
Distributors
pcbx
pcbxUnit Price$0.65060
Ext.Price$0.65060
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.65060 | $0.65060 |
| 10 | $0.49415 | $4.94150 |
| 25 | $0.42661 | $10.66525 |
| 50 | $0.42319 | $21.15950 |
| 100 | $0.40524 | $40.52400 |
| 300 | $0.40353 | $121.05900 |
