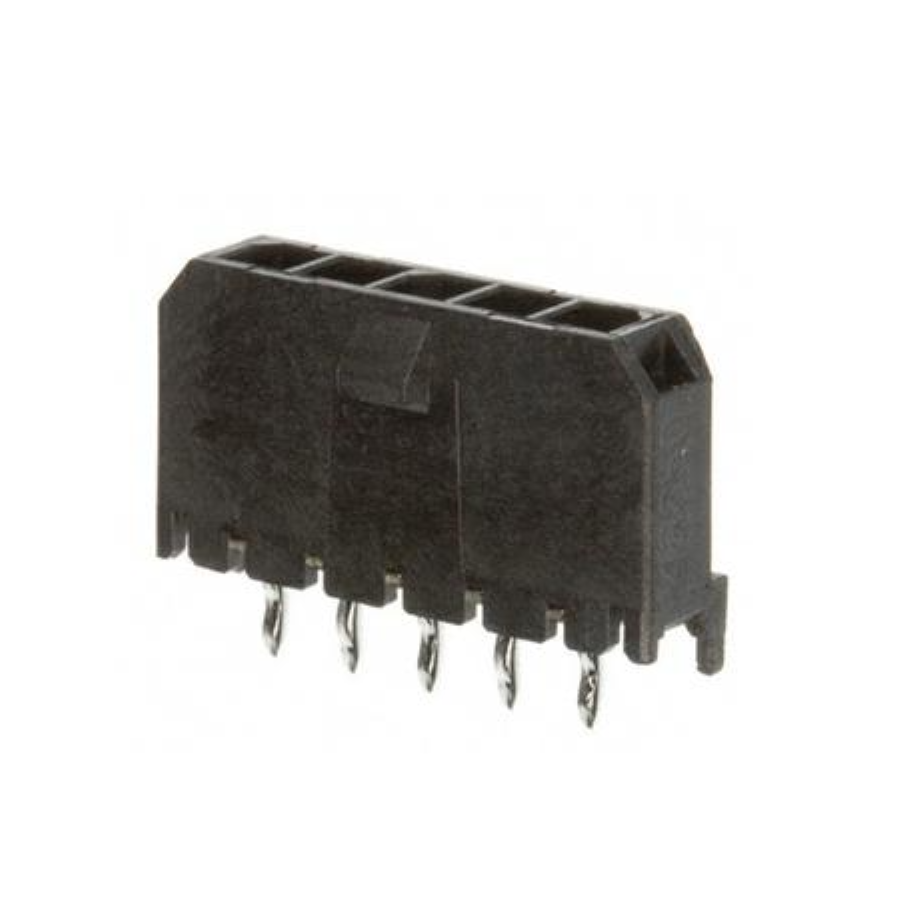

43650-0515
Manufacturer:
Molex
Mfr.Part #:
43650-0515
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:5 Pitch:3 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Tray |
| Voltage Rating | 600 V |
| Halogen Free | Low Halogen |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 3 mm |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 3 mm |
| Current Rating | 5 A |
| Max Voltage Rating (DC) | 250.25 kV |
| Number of Circuits | 5 |
| Orientation | Vertical, Right Angle |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Black |
| Gender | Pin (Male) |
| Number of Contacts | 5 |
| Connector Type | Header |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Housing Material | Thermoplastic |
| Housing Color | Black |
| Plating | Tin |
| glow wire compliant | Compliant |
| Contact Gender | Male |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
| Termination Post Length | 3.18 mm |
Stock: 883
Distributors
pcbx
pcbxUnit Price$0.67625
Ext.Price$0.67625
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.67625 | $0.67625 |
| 10 | $0.53091 | $5.30910 |
| 25 | $0.52150 | $13.03750 |
| 50 | $0.51637 | $25.81850 |
| 100 | $0.47265 | $47.26500 |
| 300 | $0.43264 | $129.79200 |
| 500 | $0.39601 | $198.00500 |
| 1000 | $0.36249 | $362.49000 |
