43814-6621
Manufacturer:
Molex
Mfr.Part #:
43814-6621
Datasheet:
Description:

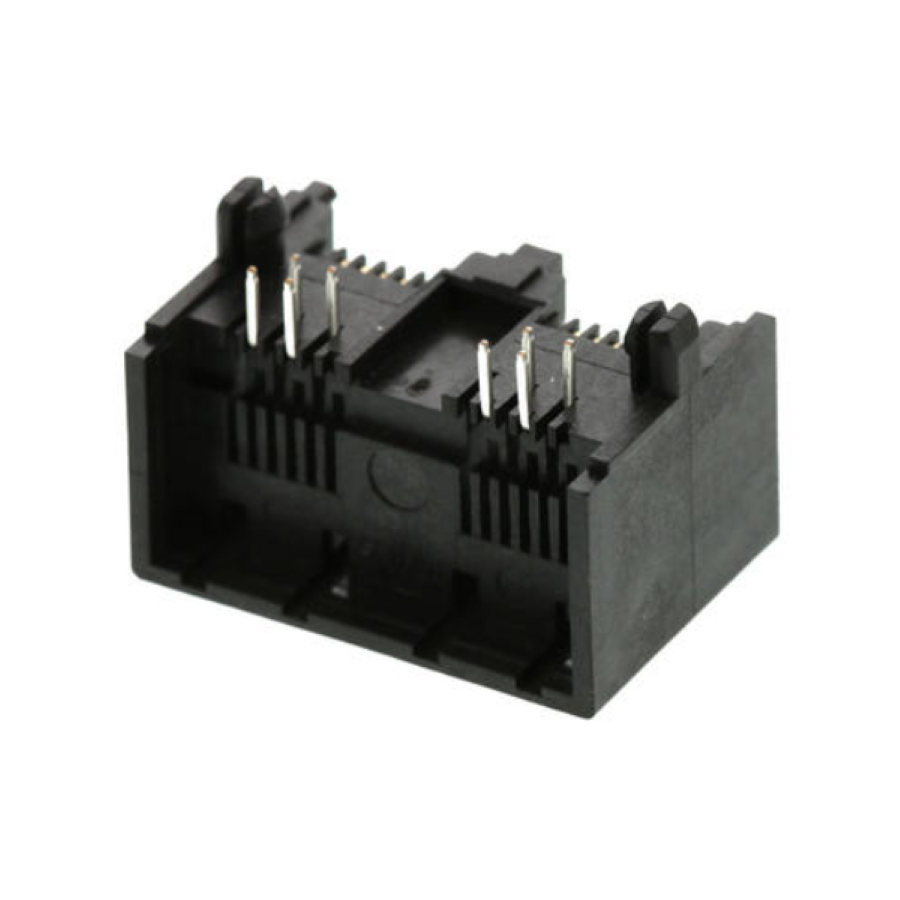

Modular / Ethernet Connectors Through Hole RJ11 Female Current Rating:1.5 A Voltage Rating:150 V
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 150 V |
| Length | 24.13 mm |
| Width | 16.51 mm |
| Termination | Through Hole |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 150 V |
| Height | 12.7 mm |
| Packaging | Reel |
| Voltage Rating | 150 V |
| Depth | 16.51 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 1.02 mm |
| Number of Terminals | 6 |
| Current Rating | 1.5 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Black |
| Gender | Female |
| Shielding | Unshielded |
| Number of Contacts | 6 |
| Direction(Counting Sequence) | Up |
| Connector Type | Socket |
| Number of Positions | 6 |
| Housing Material | Thermoplastic |
| Number of Ports | 2 |
| Max Voltage Rating (AC) | 150 V |
| Housing Color | Black |
| Plating | Tin |
| Number of Positions Loaded | 6 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
| Mounting Angle | Right Angle |
| Performance Category | Cat 3 |
| Accessory Type | |
| USOC Codes | RJ11 |
| Number of Positions/Contacts | 6P6C |
Stock: 5433
Distributors
pcbx
pcbxUnit Price$1.05156
Ext.Price$1.05156
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.05156 | $1.05156 |
| 10 | $0.84467 | $8.44670 |
| 25 | $0.80706 | $20.17650 |
| 50 | $0.74464 | $37.23200 |
| 100 | $0.72583 | $72.58300 |
| 300 | $0.69079 | $207.23700 |
| 500 | $0.65744 | $328.72000 |
| 1000 | $0.62153 | $621.53000 |
