43860-0002
Manufacturer:
Molex
Mfr.Part #:
43860-0002
Datasheet:
Description:

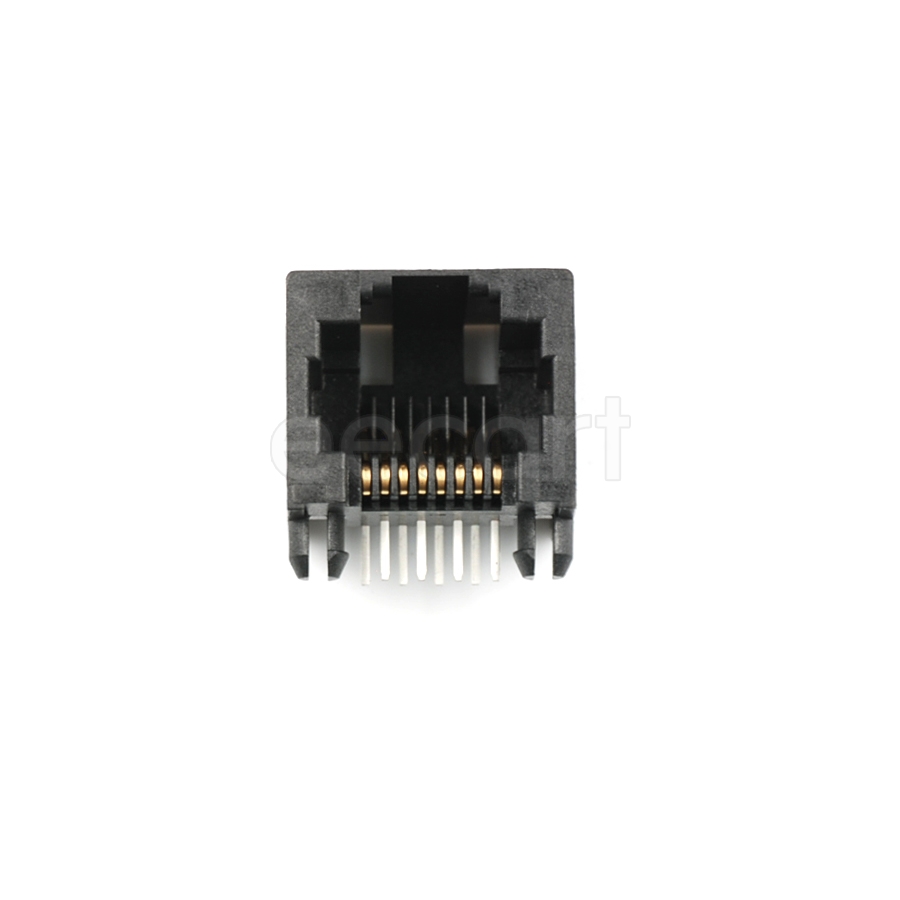

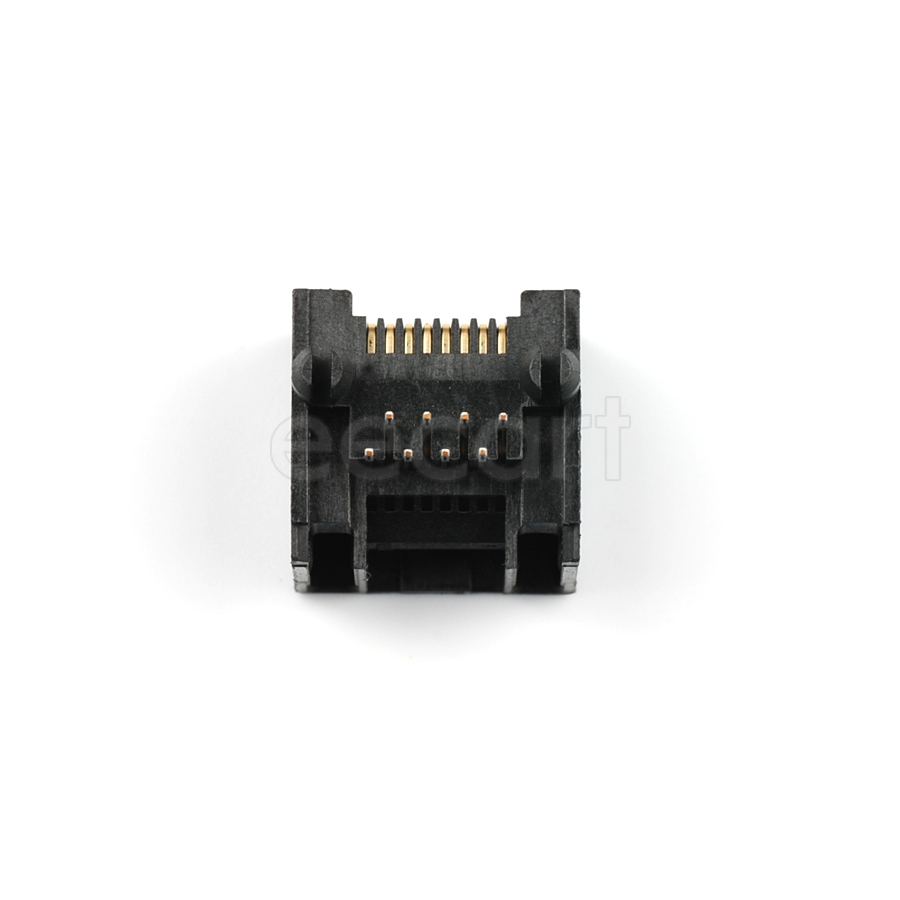

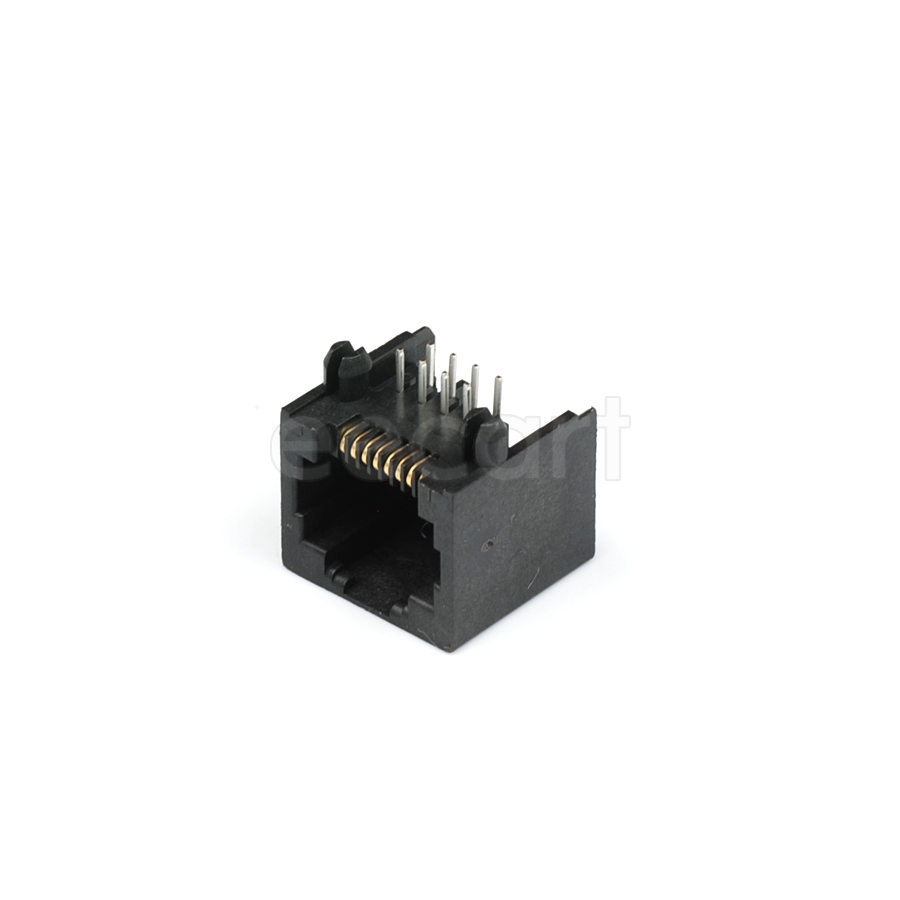

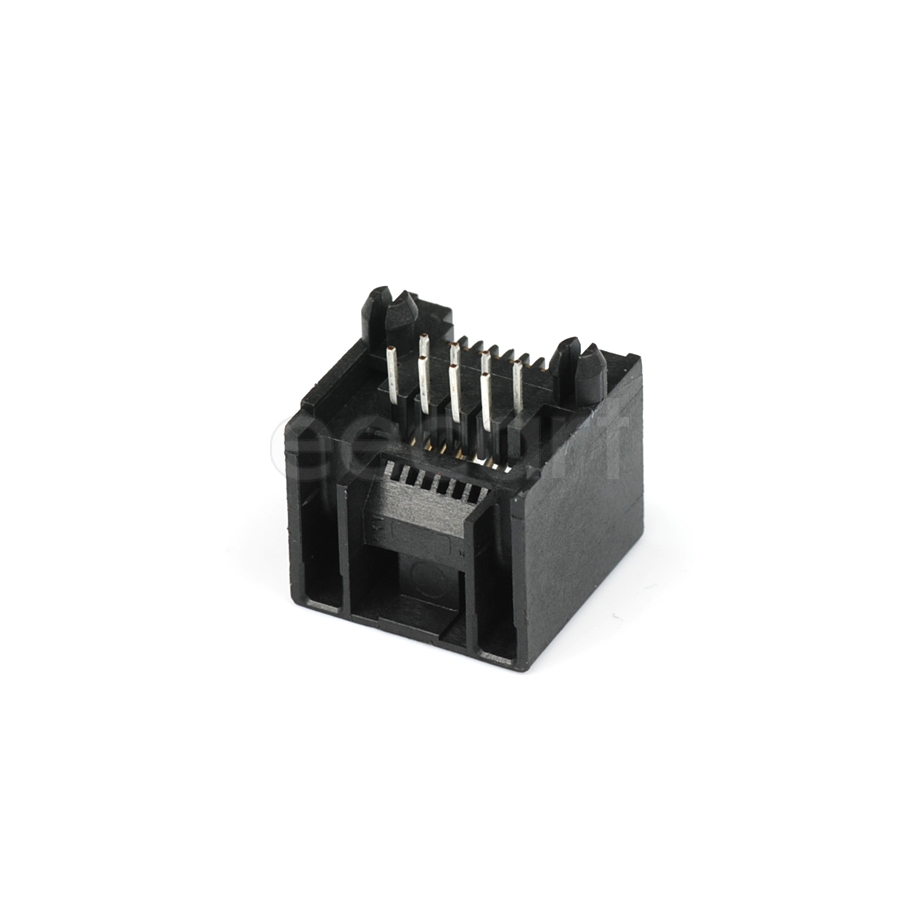

Modular / Ethernet Connectors Through Hole RJ11 Female Current Rating:1.5 A Voltage Rating:150 V
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 150 V |
| Length | 15.75 mm |
| Width | 13.21 mm |
| Termination | Through Hole |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 150 V |
| Number of Pins | 6 |
| Height | 13.208 mm |
| Packaging | Bulk |
| Voltage Rating | 150 V |
| Depth | 14.99 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.04 mm |
| Current Rating | 1.5 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA, UL |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Black |
| Gender | Female |
| Shielding | Unshielded |
| Number of Contacts | 6 |
| Direction(Counting Sequence) | Up |
| Connector Type | Socket |
| Number of Positions | 6 |
| Housing Material | Thermoplastic |
| Number of Ports | 1 |
| Contact Resistance | 20 mΩ |
| Housing Color | Black |
| Plating | Tin |
| Number of Positions Loaded | 6 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
| Mounting Angle | Right Angle |
| Performance Category | Cat 3 |
| Accessory Type | |
| USOC Codes | RJ11 |
| Number of Positions/Contacts | 6P6C |
