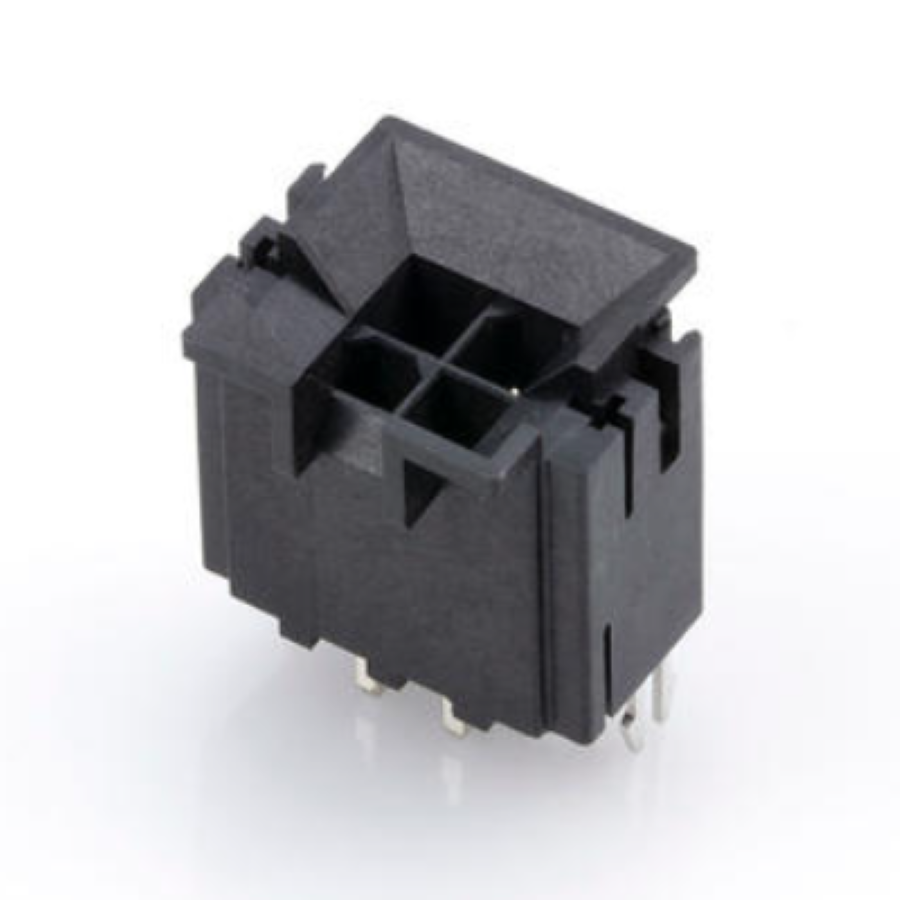

44068-0057
Manufacturer:
Molex
Mfr.Part #:
44068-0057
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:6 Pitch:4.2 mm
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Tray |
| Voltage Rating | 600 V |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Brass |
| Pitch | 4.2 mm |
| Current Rating | 13 A |
| Number of Circuits | 6 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Gender | Pin (Male) |
| Number of Contacts | 6 |
| Connector Type | Header |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Row Spacing | 4.2 mm |
| Housing Material | Thermoplastic |
| Plating | Gold |
| glow wire compliant | Non-compliant |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
| Termination Post Length | 4.5 mm |
Stock: 186
Distributors
pcbx
pcbxUnit Price$5.40059
Ext.Price$5.40059
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $5.40059 | $5.40059 |
| 10 | $3.98654 | $39.86540 |
| 25 | $3.83009 | $95.75225 |
| 50 | $3.76083 | $188.04150 |
| 100 | $3.63003 | $363.00300 |
| 300 | $3.40733 | $1022.19900 |
| 500 | $3.19829 | $1599.14500 |
