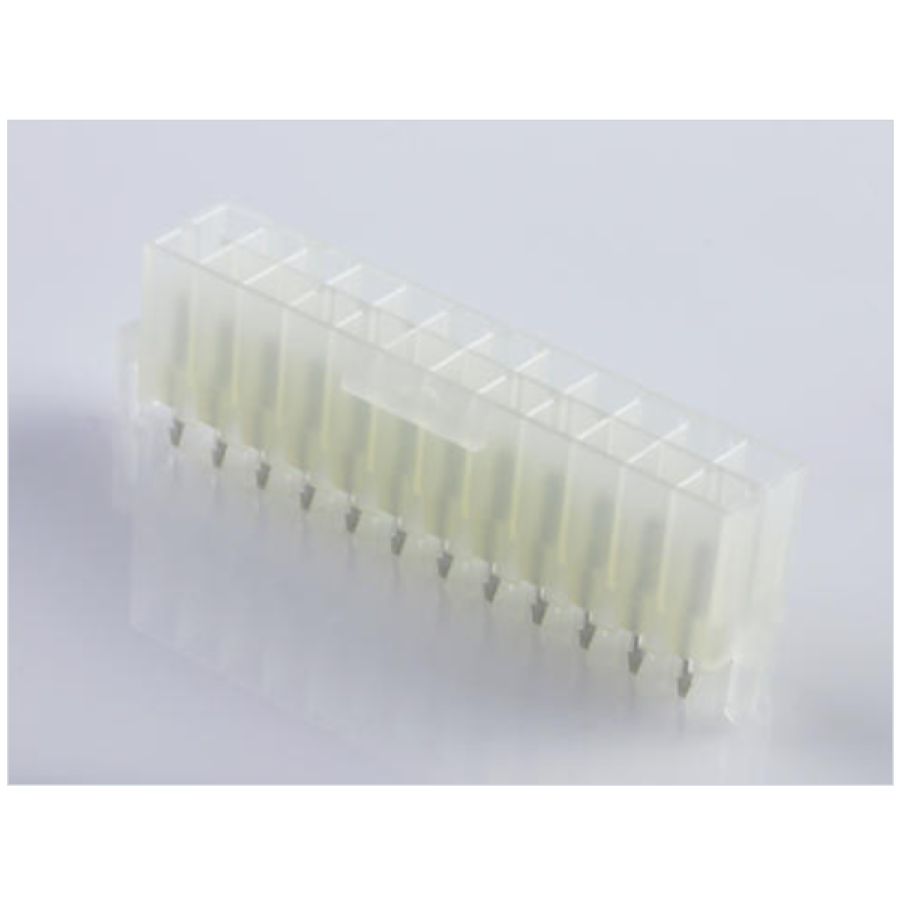

44206-0007
Manufacturer:
Molex
Mfr.Part #:
44206-0007
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:24 Pitch:4.2 mm
| Parameter | Value |
|---|---|
| Length | 6 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 24 |
| Height | 4.65 mm |
| Packaging | Tray |
| Voltage Rating | 600 V |
| Depth | 7.6 mm |
| Halogen Free | Low Halogen |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 4.2 mm |
| Number of Terminals | 24 |
| Current Rating | 6 A |
| Number of Circuits | 24 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Natural |
| Gender | Pin (Male) |
| Number of Contacts | 24 |
| Connector Type | Header |
| Number of Positions | 24 |
| Number of Rows | 2 |
| Row Spacing | 4.2 mm |
| Housing Material | Nylon |
| Number of Ports | 1 |
| Contact Resistance | 20 mΩ |
| Max Voltage Rating (AC) | 600 V |
| Housing Color | Natural |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Contact Gender | Male |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
| Termination Post Length | 3.5 mm |
