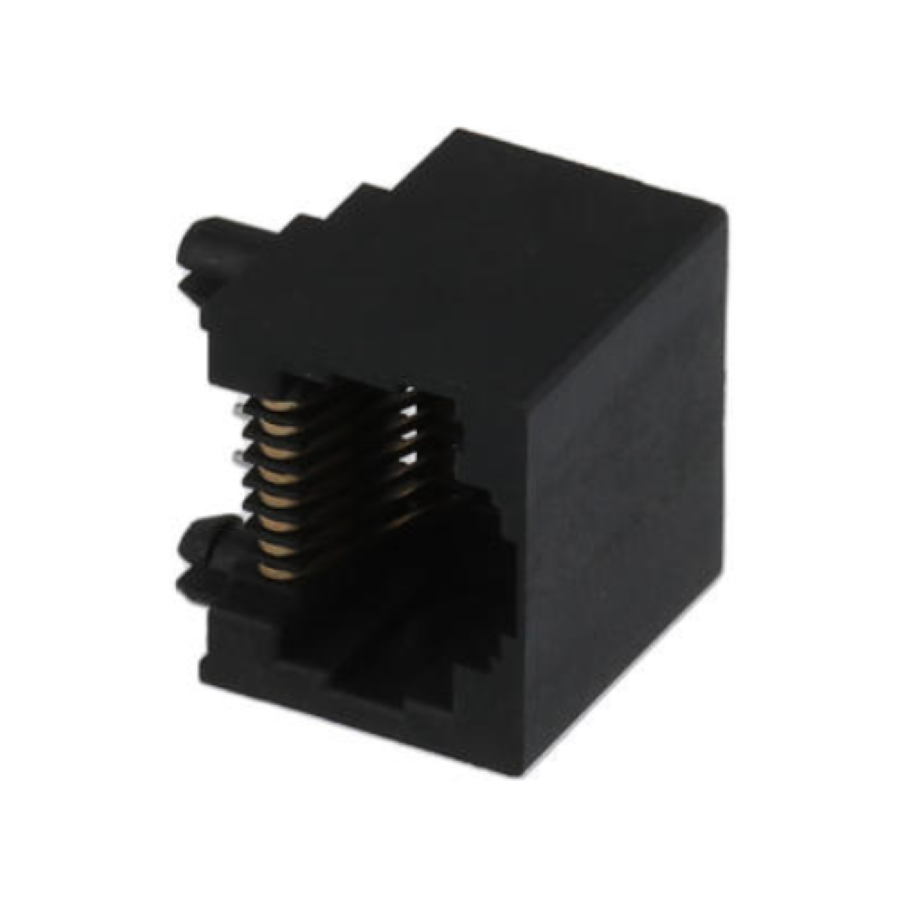

44620-0001
Manufacturer:
Molex
Mfr.Part #:
44620-0001
Datasheet:
Description:
Modular / Ethernet Connectors Through Hole RJ45 Female Current Rating:1.5 A Voltage Rating:150 V
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 150 V |
| Length | 15.75 mm |
| Termination | Through Hole |
| Max Operating Temperature | 80 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 150 V |
| Packaging | Reel |
| Voltage Rating | 150 V |
| Depth | 15.11 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.04 mm |
| Current Rating | 1.5 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Black |
| Gender | Female |
| Shielding | Unshielded |
| Number of Contacts | 8 |
| Direction(Counting Sequence) | Up |
| Connector Type | RJ45 |
| Number of Positions | 8 |
| Housing Material | Thermoplastic |
| Number of Ports | 1 |
| Contact Resistance | 20 mΩ |
| Max Voltage Rating (AC) | 150 V |
| Housing Color | Black |
| Plating | Tin |
| Number of Positions Loaded | 8 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
| Mounting Angle | Right Angle |
| Performance Category | Cat 3 |
| Accessory Type | |
| USOC Codes | RJ45 |
| Number of Positions/Contacts | 8P8C |
Stock: 763
Distributors
pcbx
pcbxUnit Price$0.81390
Ext.Price$0.81390
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.81390 | $0.81390 |
| 10 | $0.69506 | $6.95060 |
| 25 | $0.63180 | $15.79500 |
| 50 | $0.60101 | $30.05050 |
| 100 | $0.58392 | $58.39200 |
| 300 | $0.55138 | $165.41400 |
| 500 | $0.52065 | $260.32500 |
| 1000 | $0.49757 | $497.57000 |
