450BXW100MEFR18X30
Manufacturer:
Rubycon
Mfr.Part #:
450BXW100MEFR18X30
Datasheet:
Description:

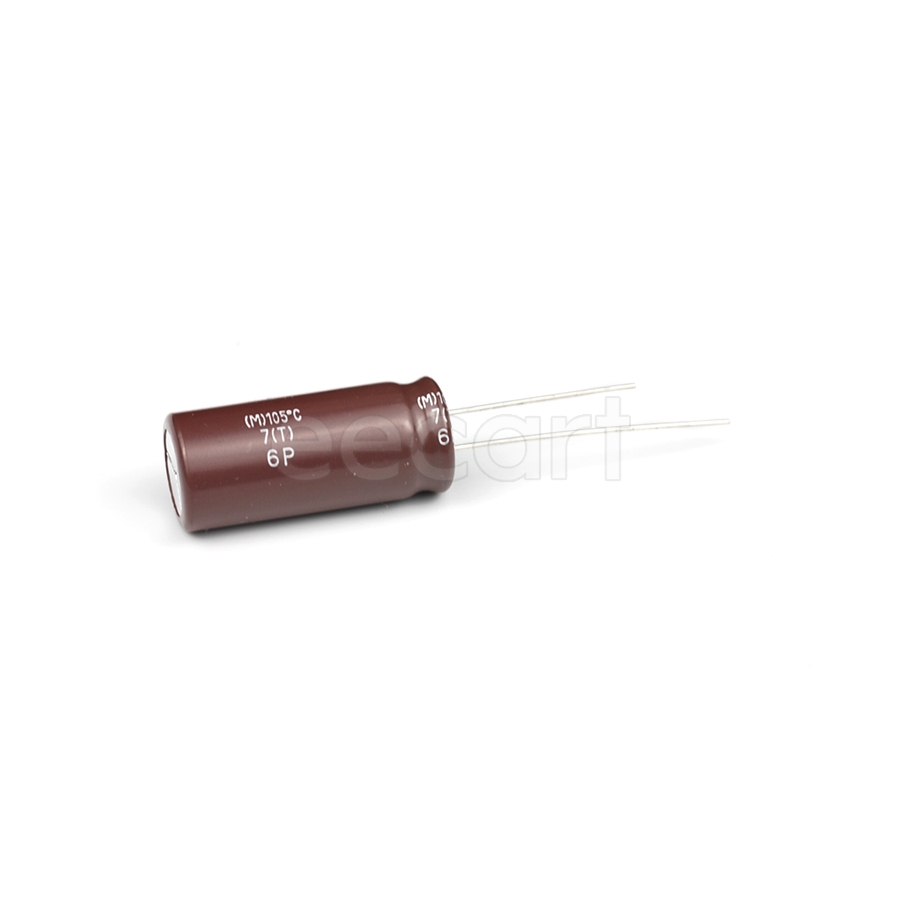

Aluminum Electrolytic Capacitors Radial,18.00mm×30.00mm Through Hole 100 µF 20 % 450 V
| Parameter | Value |
|---|---|
| Capacitance | 100 µF |
| Tolerance | 20 % |
| Life (Hours) | 12000 Hours |
| Ripple Current | 750 mA |
| Height - Seated (Max) | 32 mm |
| Diameter | 18 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Bulk |
| Voltage Rating | 450 V |
| RoHS | Non-Compliant |
| Polarity | Polar |
| Lead Pitch | 7.493 mm |
| Ripple Current @ Low Frequency | 750 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.688 A @ 100 kHz |
Stock: 8144
Distributors
pcbx
pcbxUnit Price$1.43338
Ext.Price$1.43338
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.43338 | $1.43338 |
| 10 | $1.20106 | $12.01060 |
| 25 | $1.10644 | $27.66100 |
| 50 | $1.01927 | $50.96350 |
| 100 | $0.93896 | $93.89600 |
| 300 | $0.84448 | $253.34400 |
| 500 | $0.75951 | $379.75500 |
| 1000 | $0.73031 | $730.31000 |
