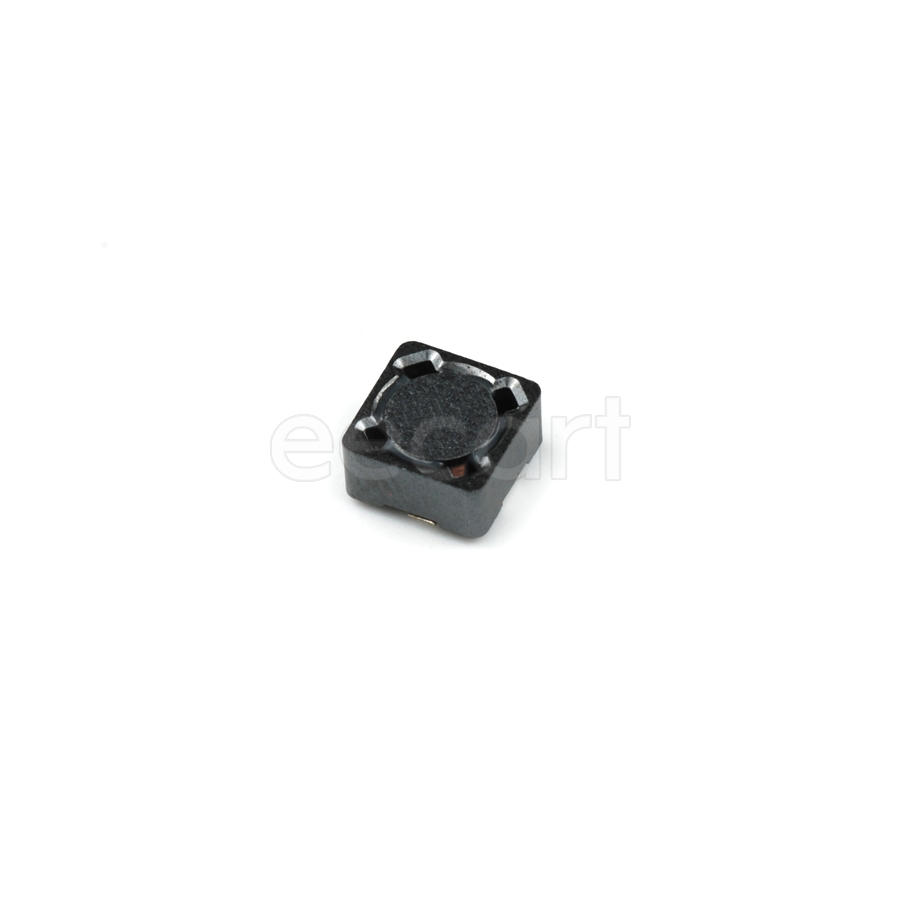

45682C
Manufacturer:
Murata
Mfr.Part #:
45682C
Datasheet:
Description:
Fixed Inductors 7.30mmL×7.30mmW×3.55mmH SMD/SMT 6.8 µH 30 % 2.6 A 66 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 30 % |
| Height - Seated (Max) | 3.556 mm |
| Length | 7.2898 mm |
| Width | 7.2898 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 2 |
| Composition(Kit Type) | Wirewound |
| Height | 3.55 mm |
| Packaging | Reel |
| Depth | 7.5 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Type | Wirewound |
| Current Rating | 2.6 A |
| DC Resistance (DCR) | 66 mΩ |
| Test Frequency | 10 kHz |
| Military Standard | Not |
| Shielding | Shielded |
| Inductance | 6.8 µH |
| inductance tolerance | 30 % |
| Max DC Current | 2.6 A |
| DC Current | 2.6 A |
| Schedule B | 8504500000 |
Stock: 1797
Distributors
pcbx
pcbxUnit Price$0.29410
Ext.Price$0.29410
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.29410 | $0.29410 |
| 10 | $0.29299 | $2.92990 |
| 25 | $0.29188 | $7.29700 |
| 50 | $0.29078 | $14.53900 |
| 100 | $0.28968 | $28.96800 |
| 300 | $0.28858 | $86.57400 |
| 500 | $0.28749 | $143.74500 |
| 1000 | $0.28640 | $286.40000 |
