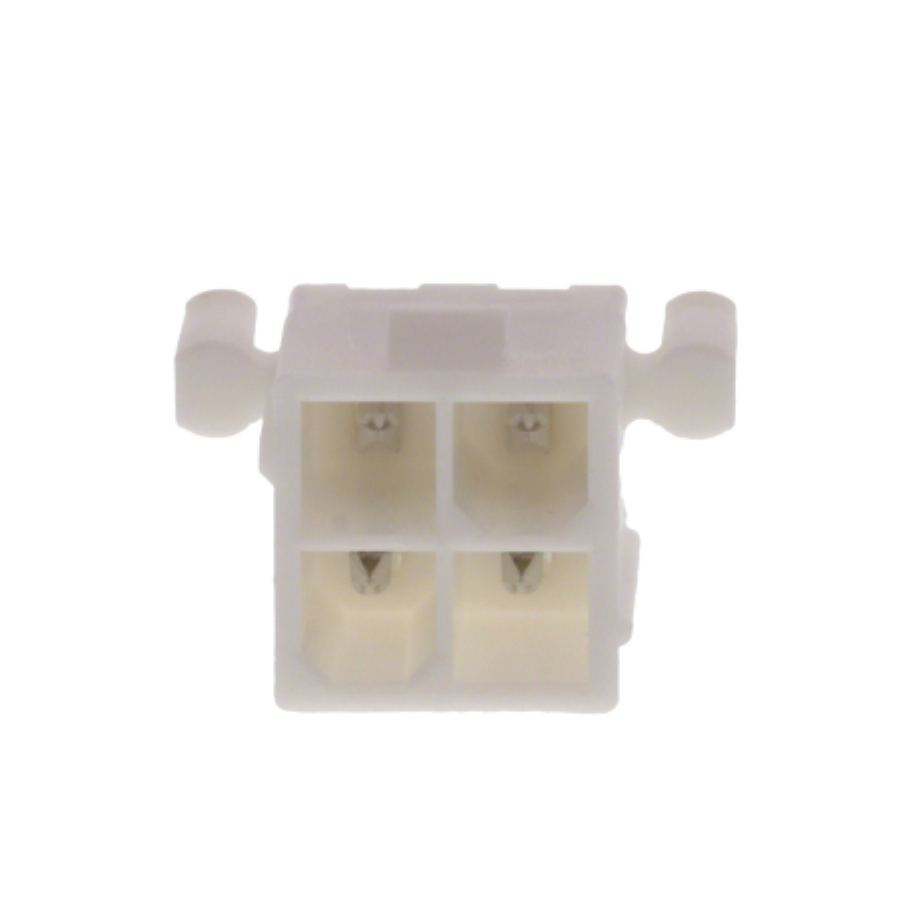

46015-0403
Manufacturer:
Molex
Mfr.Part #:
46015-0403
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:4 Pitch:4.2 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 600 V |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 600 V |
| Packaging | Tray |
| Voltage Rating | 600 V |
| Halogen Free | Low Halogen |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Copper |
| Pitch | 4.2 mm |
| Current Rating | 13 A |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 4 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Natural |
| Gender | Pin (Male) |
| Number of Contacts | 4 |
| Connector Type | Header |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Row Spacing | 4.2 mm |
| Housing Material | Nylon |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Contact Gender | Male |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | MX |
| Termination Post Length | 3.5 mm |
Stock: 2132
Distributors
pcbx
pcbxUnit Price$0.68223
Ext.Price$0.68223
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.68223 | $0.68223 |
| 10 | $0.57879 | $5.78790 |
| 25 | $0.54813 | $13.70325 |
| 50 | $0.51909 | $25.95450 |
| 100 | $0.49159 | $49.15900 |
| 300 | $0.46433 | $139.29900 |
| 500 | $0.43858 | $219.29000 |
| 1000 | $0.43345 | $433.45000 |
