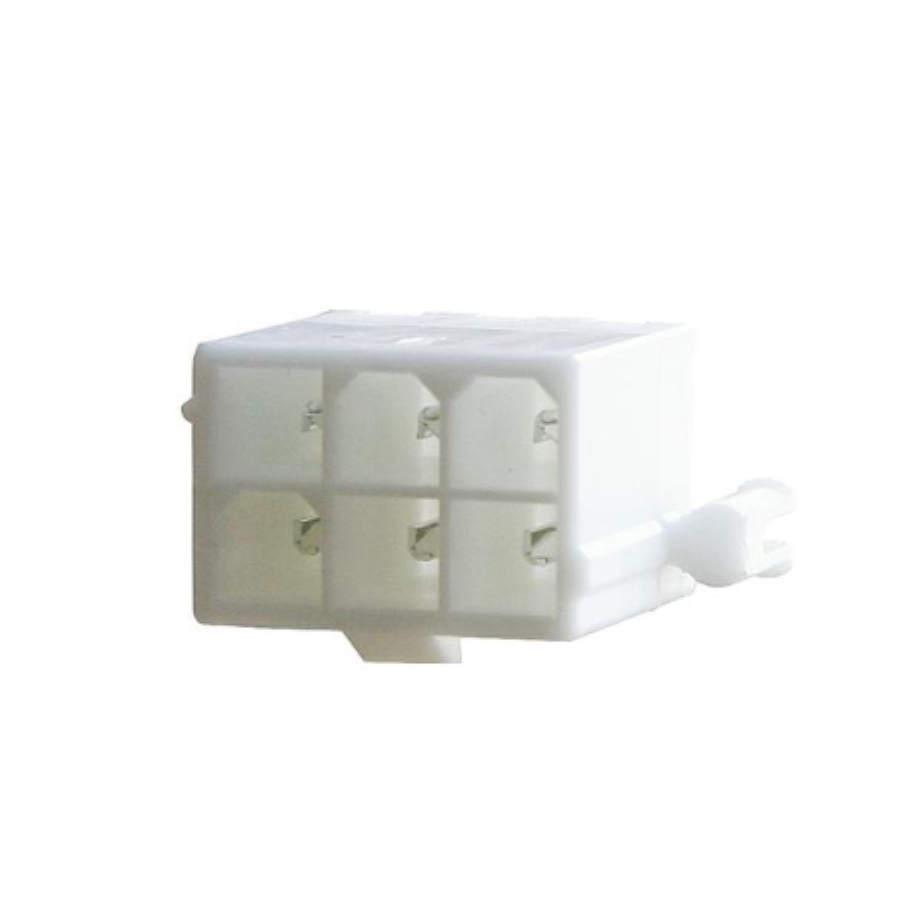

46015-0603
Manufacturer:
Molex
Mfr.Part #:
46015-0603
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:6 Pitch:4.2 mm
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 600 V |
| Packaging | Tray |
| Voltage Rating | 600 V |
| Halogen Free | Low Halogen |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Copper |
| Pitch | 4.2 mm |
| Current Rating | 13 A |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 6 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Natural |
| Gender | Pin (Male) |
| Number of Contacts | 6 |
| Connector Type | Header |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Row Spacing | 4.2 mm |
| Housing Material | Nylon |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Contact Gender | Male |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | MX |
| Termination Post Length | 3.5 mm |
Stock: 3600
Distributors
pcbx
pcbxUnit Price$0.89511
Ext.Price$0.89511
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.89511 | $0.89511 |
| 10 | $0.76345 | $7.63450 |
| 25 | $0.70847 | $17.71175 |
| 50 | $0.65744 | $32.87200 |
| 100 | $0.59560 | $59.56000 |
| 300 | $0.53958 | $161.87400 |
| 500 | $0.48883 | $244.41500 |
| 1000 | $0.44286 | $442.86000 |
