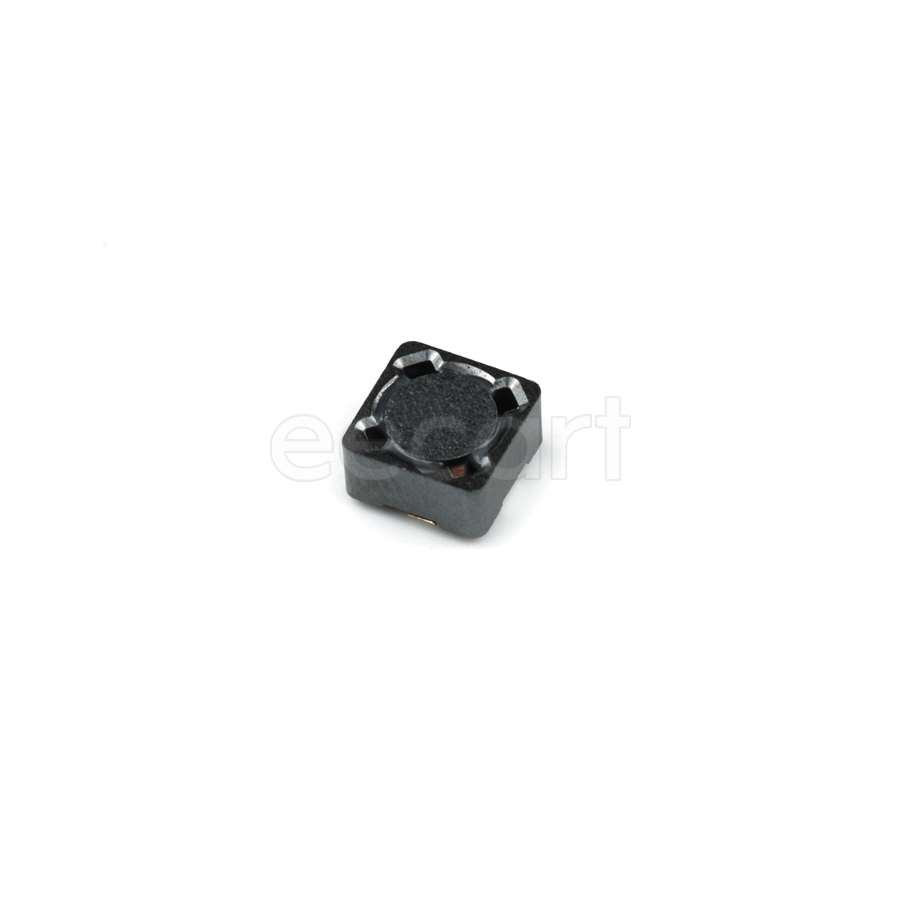

46103C
Manufacturer:
Murata
Mfr.Part #:
46103C
Datasheet:
Description:
Fixed Inductors 7.30mmL×7.30mmW×4.55mmH SMD/SMT 10 µH 20 % 2.4 A 66 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 4.57 mm |
| Length | 7.2898 mm |
| Width | 7.2898 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 2 |
| Composition(Kit Type) | Wirewound |
| Height | 4.55 mm |
| Packaging | Reel |
| Depth | 7.5 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Type | Wirewound |
| Current Rating | 2.4 A |
| DC Resistance (DCR) | 66 mΩ |
| Test Frequency | 10 kHz |
| Military Standard | Not |
| Shielding | Shielded |
| Inductance | 10 µH |
| RMS Current (Irms) | 2.4 A |
| inductance tolerance | 20 % |
| Max DC Current | 2.4 A |
| DC Current | 2.4 A |
| Schedule B | 8504500000 |
