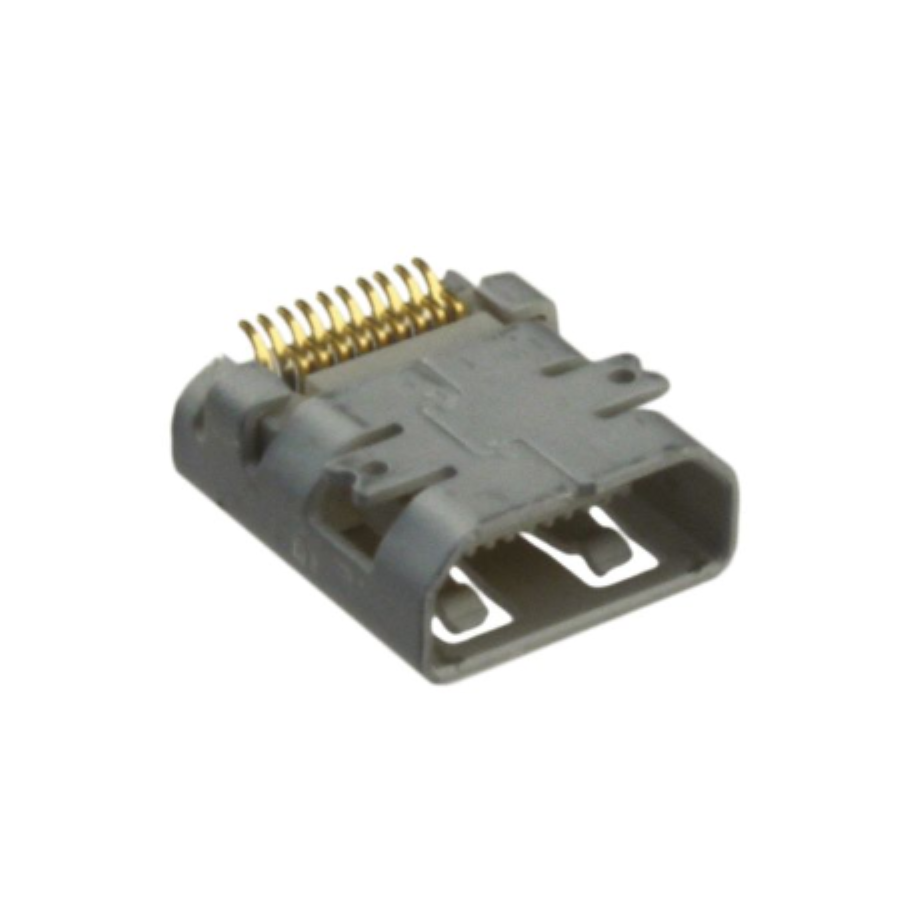

46765-0001
Manufacturer:
Molex
Mfr.Part #:
46765-0001
Datasheet:
Description:
Audio / Video Connectors SMD/SMT Female Number of Positions:19 Right Angle HDMI
| Parameter | Value |
|---|---|
| Width | 7 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -30 °C |
| Packaging | Reel |
| Voltage Rating | 30 V |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Brass |
| Pitch | 400 µm |
| Number of Terminals | 19 |
| Current Rating | 800 mA |
| Max Current Rating | 800 mA |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 19 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Gender | Female |
| Number of Contacts | 19 |
| Body Material | Metal |
| Connector Type | HDMI |
| Number of Positions | 19 |
| Number of Rows | 2 |
| Housing Material | Polymer |
| Number of Ports | 1 |
| Plating | Gold |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | SG |
Stock: 1746
Distributors
pcbx
pcbxUnit Price$1.71499
Ext.Price$1.71499
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.71499 | $1.71499 |
| 10 | $1.46450 | $14.64500 |
| 25 | $1.37045 | $34.26125 |
| 50 | $1.30804 | $65.40200 |
| 100 | $1.24563 | $124.56300 |
| 300 | $1.17480 | $352.44000 |
| 500 | $1.10799 | $553.99500 |
| 1000 | $1.00796 | $1007.96000 |
