47151-1001
Manufacturer:
Molex
Mfr.Part #:
47151-1001
Datasheet:
Description:

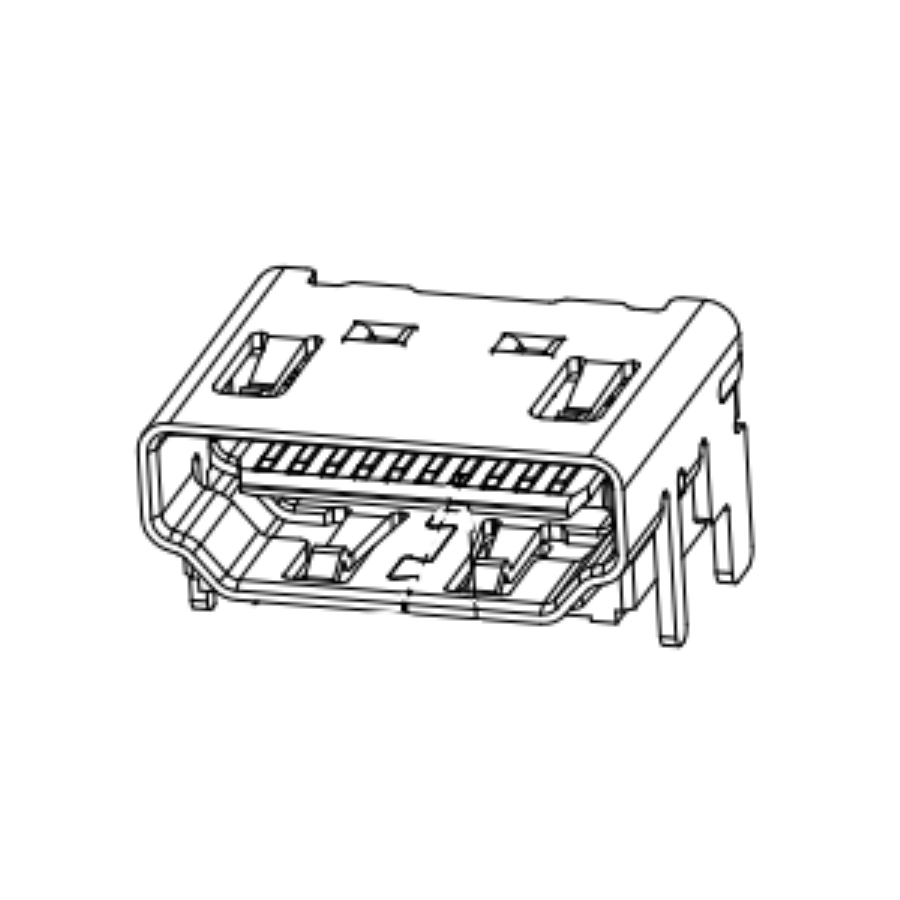

Audio / Video Connectors SMD/SMT Female Number of Positions:19 Right Angle HDMI
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 40 V |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -20 °C |
| Number of Pins | 19 |
| Packaging | Reel |
| Voltage Rating | 40 V |
| Halogen Free | Low Halogen |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 1 mm |
| REACH SVHC | Unknown |
| Weight | 2.197003 g |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Copper |
| Pitch | 500 µm |
| Number of Terminals | 19 |
| Current Rating | 500 mA |
| Max Voltage Rating (DC) | 40 V |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 19 |
| Orientation | Right Angle |
| Color | Black |
| Gender | Female |
| Shielding | Shielded |
| Number of Contacts | 19 |
| Body Material | Metal |
| Connector Type | HDMI |
| Number of Positions | 19 |
| Number of Rows | 2 |
| Housing Material | Thermoplastic |
| Number of Ports | 1 |
| Housing Color | Black |
| Schedule B | 8536695050 |
| Country of Origin | HK |
