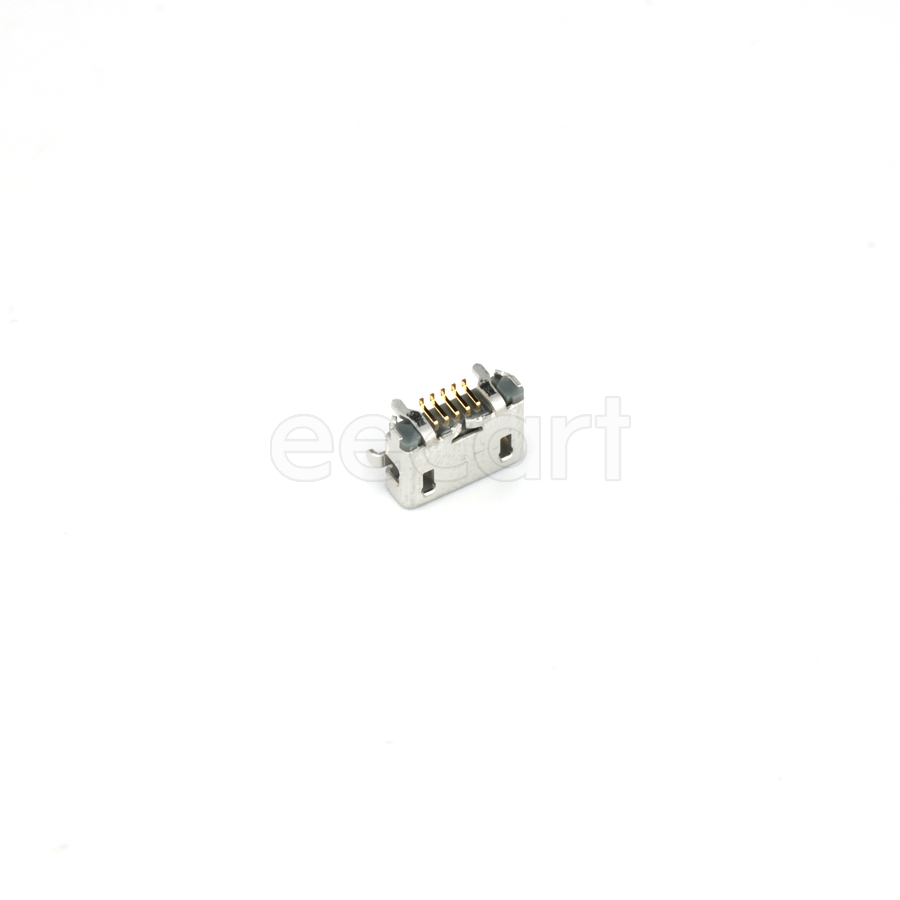

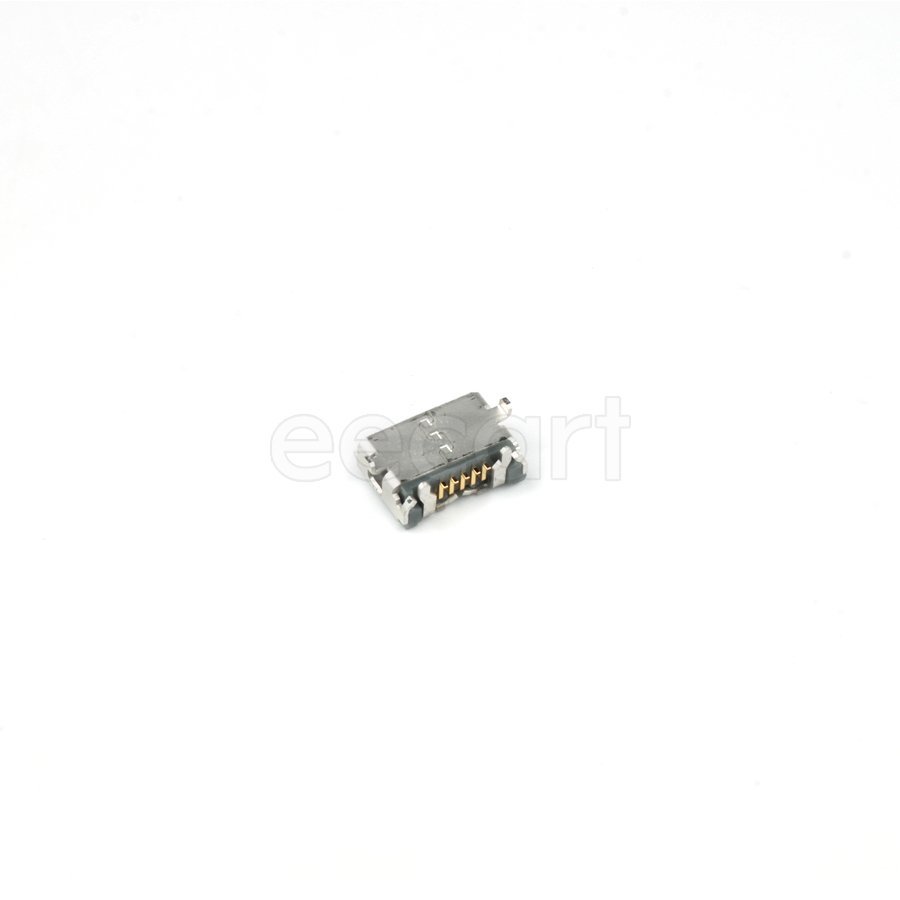

47346-1001
Manufacturer:
Molex
Mfr.Part #:
47346-1001
Datasheet:
Description:
USB Connectors SMD/SMT USB Connectors Female USB 2.0
| Parameter | Value |
|---|---|
| Length | 7.8 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -30 °C |
| Height | 3.19 mm |
| Packaging | Reel |
| Voltage Rating | 30 V |
| Halogen Free | Low Halogen |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Gold |
| Pitch | 650 µm |
| Type | USB Connectors |
| Current Rating | 1.8 A |
| Number of Circuits | 5 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Gender | Female |
| Number of Contacts | 5 |
| USB Standard | USB 2.0 |
| Number of Rows | 1 |
| Housing Material | Polymer |
| Number of Ports | 5 |
| Plating | Gold |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | CN |
| Mounting Angle | Right Angle |
