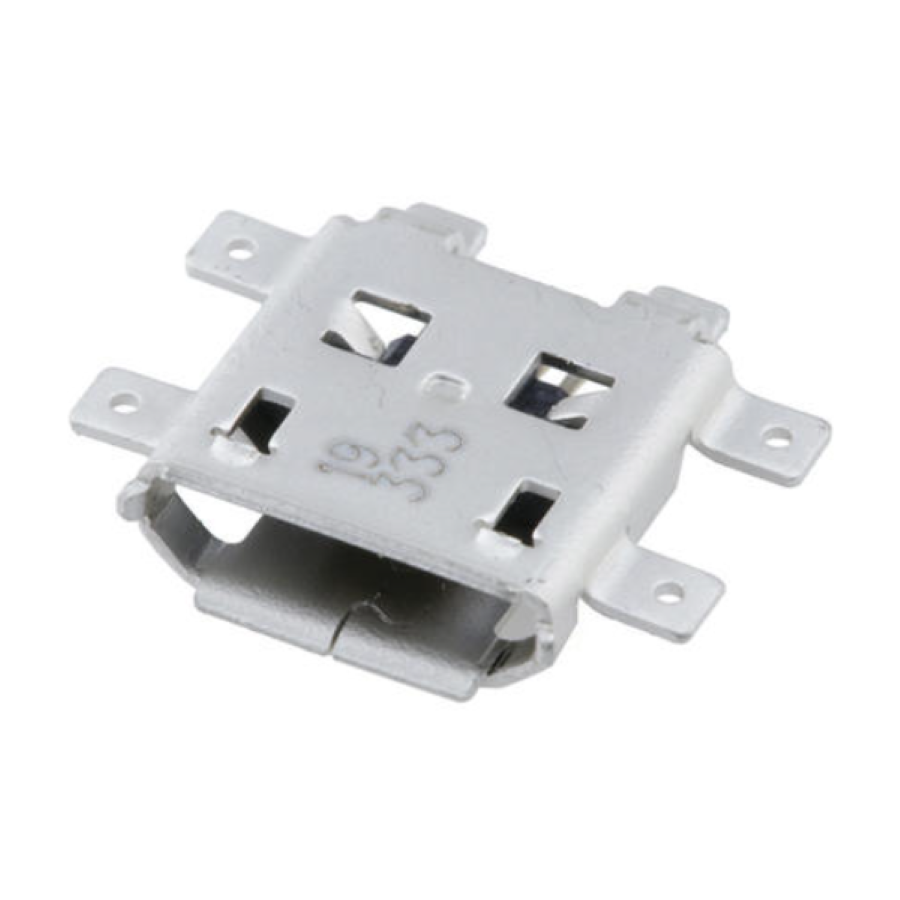

47491-0001
Manufacturer:
Molex
Mfr.Part #:
47491-0001
Datasheet:
Description:
USB Connectors SMD/SMT USB Connectors Female USB 2.0
| Parameter | Value |
|---|---|
| Length | 12.7 mm |
| Width | 12.7 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -30 °C |
| Voltage Rating (AC) | 30 V |
| Number of Pins | 5 |
| Height | 3.19 mm |
| Packaging | Reel |
| Voltage Rating | 30 V |
| Halogen Free | Low Halogen |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 650 µm |
| REACH SVHC | Unknown |
| Weight | 4.535924 g |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Copper, Stainless Steel |
| Pitch | 650 µm |
| Type | USB Connectors |
| Number of Terminals | 5 |
| Current Rating | 500 mA |
| Number of Circuits | 5 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Black |
| Gender | Female |
| Number of Contacts | 5 |
| USB Standard | USB 2.0 |
| Connector Type | Receptacle, USB |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Housing Material | Polymer |
| Number of Ports | 1 |
| Contact Resistance | 40 mΩ |
| Max Voltage Rating (AC) | 30 V |
| Plating | Gold |
| Schedule B | 8536695050 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | CN |
| Mounting Angle | Right Angle |
Stock: 4641
Distributors
pcbx
pcbxUnit Price$0.77627
Ext.Price$0.77627
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.77627 | $0.77627 |
| 10 | $0.65744 | $6.57440 |
| 25 | $0.61640 | $15.41000 |
| 50 | $0.58734 | $29.36700 |
| 100 | $0.55913 | $55.91300 |
| 300 | $0.52791 | $158.37300 |
| 500 | $0.49843 | $249.21500 |
| 1000 | $0.43773 | $437.73000 |
