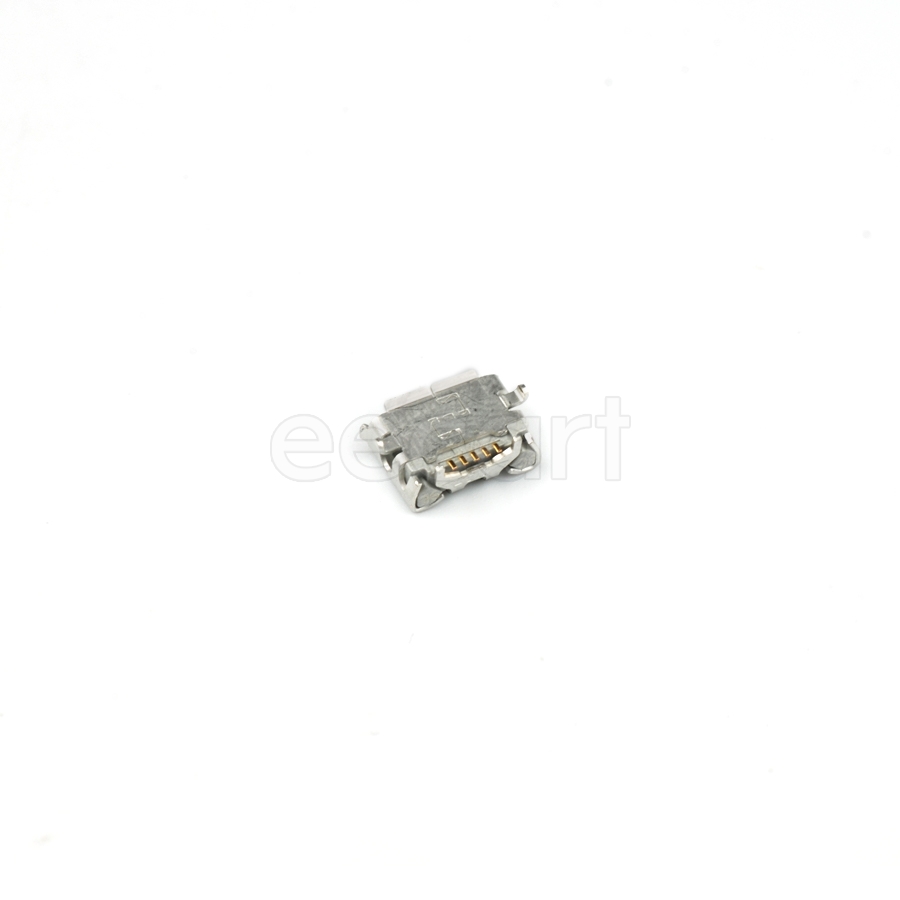

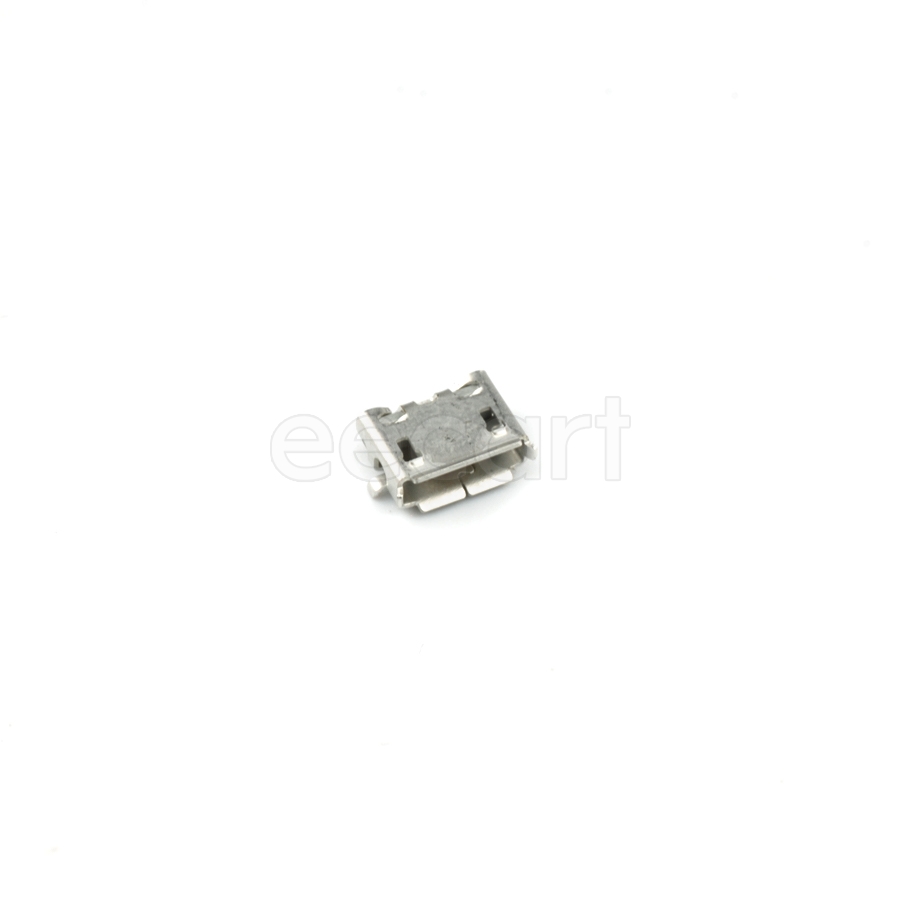

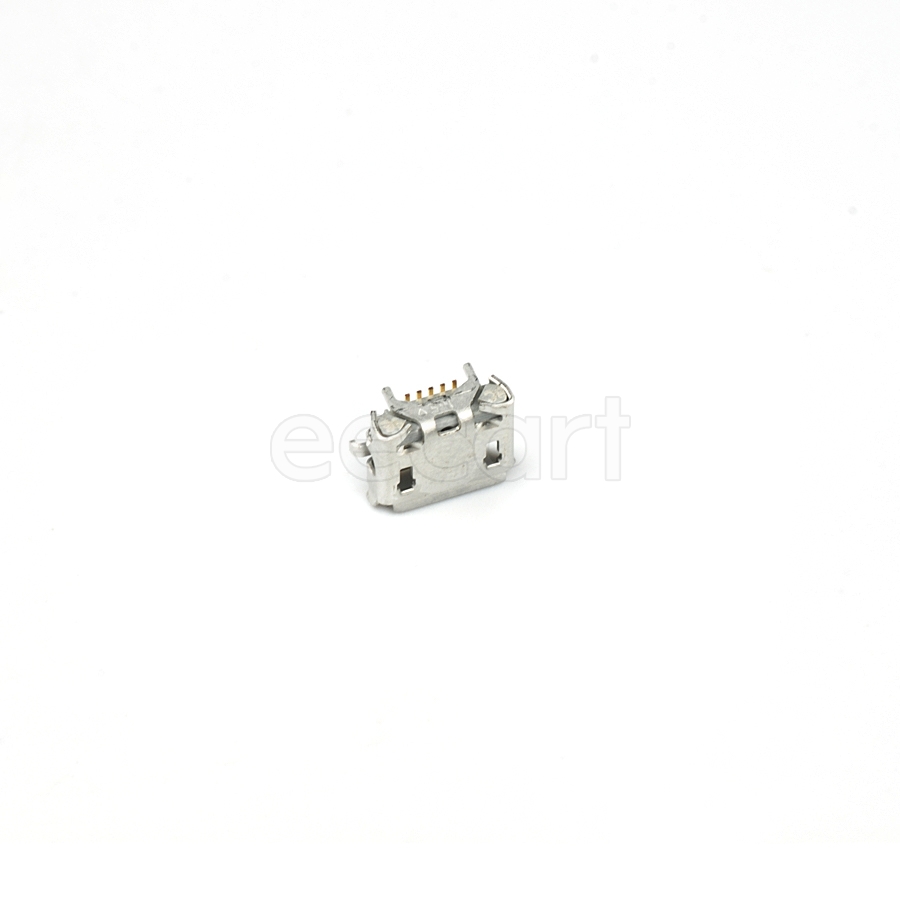

47589-0001
Manufacturer:
Molex
Mfr.Part #:
47589-0001
Datasheet:
Description:
USB Connectors SMD/SMT USB Connectors Female USB 2.0
| Parameter | Value |
|---|---|
| Length | 8.65 mm |
| Width | 6.35 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -30 °C |
| Voltage Rating (AC) | 30 V |
| Number of Pins | 5 |
| Height | 2.86 mm |
| Packaging | Reel |
| Voltage Rating | 30 V |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Weight | 4.535924 g |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Copper |
| Pitch | 650 µm |
| Type | USB Connectors |
| Number of Terminals | 5 |
| Current Rating | 1.8 A |
| Number of Circuits | 5 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Black |
| Gender | Female |
| Number of Contacts | 5 |
| USB Standard | USB 2.0 |
| Connector Type | Receptacle, USB |
| Number of Rows | 1 |
| Housing Material | Polymer |
| Number of Ports | 1 |
| Contact Resistance | 40 mΩ |
| Max Voltage Rating (AC) | 100 V |
| Plating | Gold |
| Schedule B | 8536695050 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
| Mounting Angle | Right Angle |
Stock: 10873
Distributors
pcbx
pcbxUnit Price$0.52578
Ext.Price$0.52578
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.52578 | $0.52578 |
| 10 | $0.45739 | $4.57390 |
| 25 | $0.42576 | $10.64400 |
| 50 | $0.40866 | $20.43300 |
| 100 | $0.38900 | $38.90000 |
| 300 | $0.36745 | $110.23500 |
| 500 | $0.34710 | $173.55000 |
| 1000 | $0.30264 | $302.64000 |
