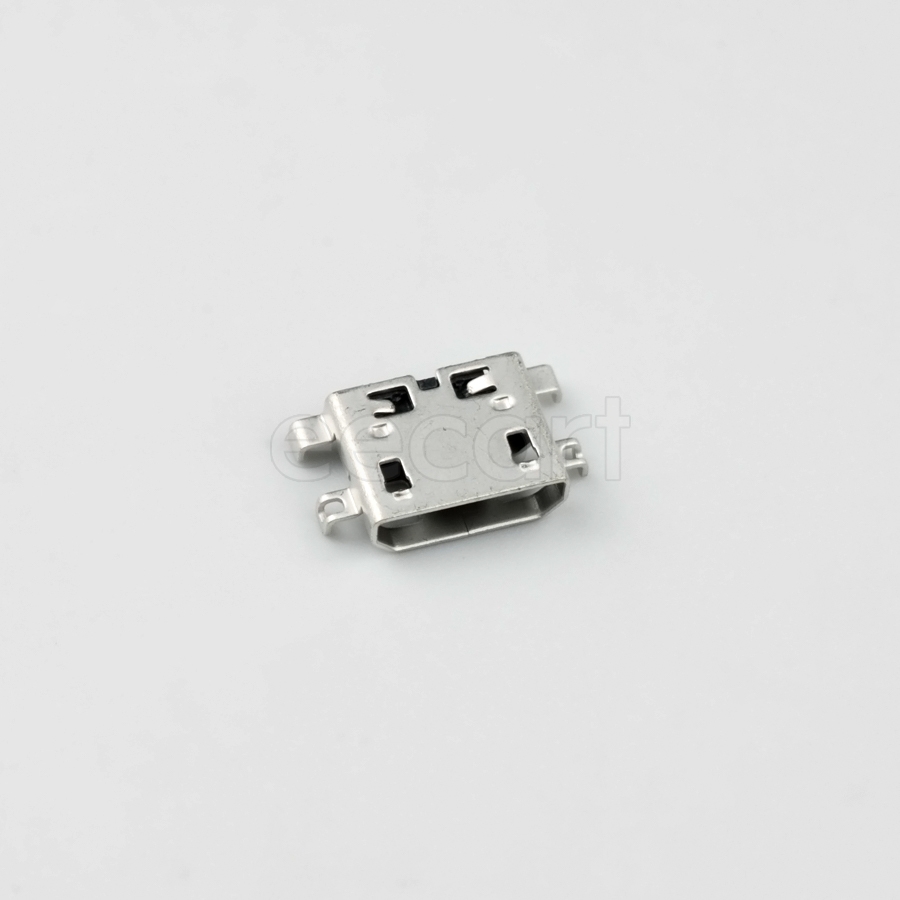

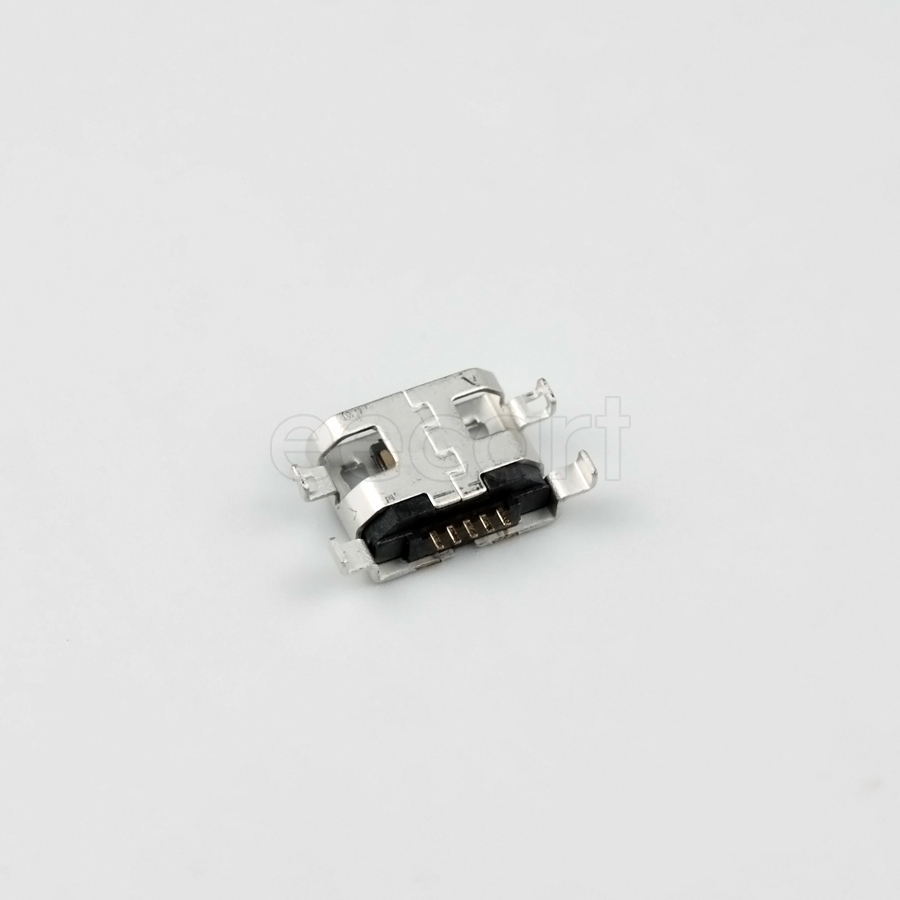

47642-0001
Manufacturer:
Molex
Mfr.Part #:
47642-0001
Datasheet:
Description:
USB Connectors SMD/SMT Receptacle Female USB 2.0
| Parameter | Value |
|---|---|
| Length | 10.2 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -30 °C |
| Voltage Rating (AC) | 30 V |
| Height | 3.19 mm |
| Packaging | Reel |
| Voltage Rating | 30 V |
| Halogen Free | Low Halogen |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Features | Board Guide, Solder Retention |
| Contact Material(Contact Finish) | Gold |
| Pitch | 650 µm |
| Type | Receptacle |
| Number of Terminals | 5 |
| Current Rating | 1.8 A |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 5 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Black |
| Gender | Female |
| Shielding | Shielded |
| Number of Contacts | 5 |
| USB Standard | USB 2.0 |
| Connector Type | Receptacle, USB |
| Number of Positions | |
| Number of Rows | 1 |
| Housing Material | Polymer |
| Number of Ports | 1 |
| Fastening Type | |
| Plating | Gold |
| Contact Gender | Receptacle |
| Shell Material | Stainless Steel |
| Schedule B | 8536695050 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | CN |
| Mounting Angle | Right Angle |
Stock: 4699
Distributors
pcbx
pcbxUnit Price$0.50697
Ext.Price$0.50697
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.50697 | $0.50697 |
| 10 | $0.45055 | $4.50550 |
| 25 | $0.40694 | $10.17350 |
| 50 | $0.39754 | $19.87700 |
| 100 | $0.37275 | $37.27500 |
| 300 | $0.35209 | $105.62700 |
| 500 | $0.33257 | $166.28500 |
| 1000 | $0.32231 | $322.31000 |
