47654-0001
Manufacturer:
Molex
Mfr.Part #:
47654-0001
Datasheet:
Description:

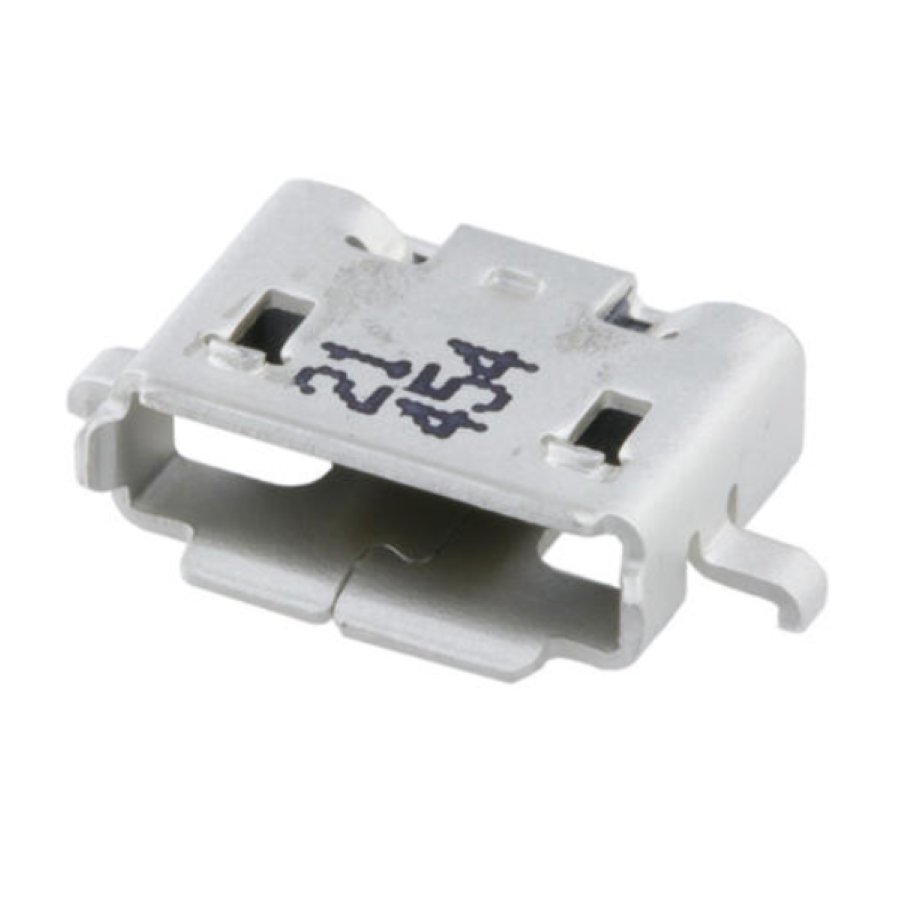

USB Connectors SMD/SMT Female Micro-AB
| Parameter | Value |
|---|---|
| Length | 10.13 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -20 °C |
| Voltage Rating (AC) | 30 V |
| Packaging | Reel |
| Depth | 6.8 mm |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Pitch | 650 µm |
| Number of Terminals | 5 |
| Current Rating | 1.5 A |
| Number of Circuits | 13 |
| Orientation | Right Angle, Vertical |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Black |
| Gender | Female |
| Shielding | Shielded |
| Number of Contacts | 5 |
| USB Standard | Micro-AB |
| Connector Type | Receptacle, USB |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Housing Material | Thermoplastic |
| Number of Ports | 1 |
| Max Voltage Rating (AC) | 100 V |
| Plating | Gold |
| glow wire compliant | Non-compliant |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | CN |
| Mounting Angle | Right Angle |
Stock: 547
Distributors
pcbx
pcbxUnit Price$0.52578
Ext.Price$0.52578
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.52578 | $0.52578 |
| 10 | $0.44713 | $4.47130 |
| 25 | $0.41891 | $10.47275 |
| 50 | $0.39925 | $19.96250 |
| 100 | $0.37959 | $37.95900 |
| 300 | $0.35893 | $107.67900 |
| 500 | $0.33940 | $169.70000 |
| 1000 | $0.33000 | $330.00000 |
