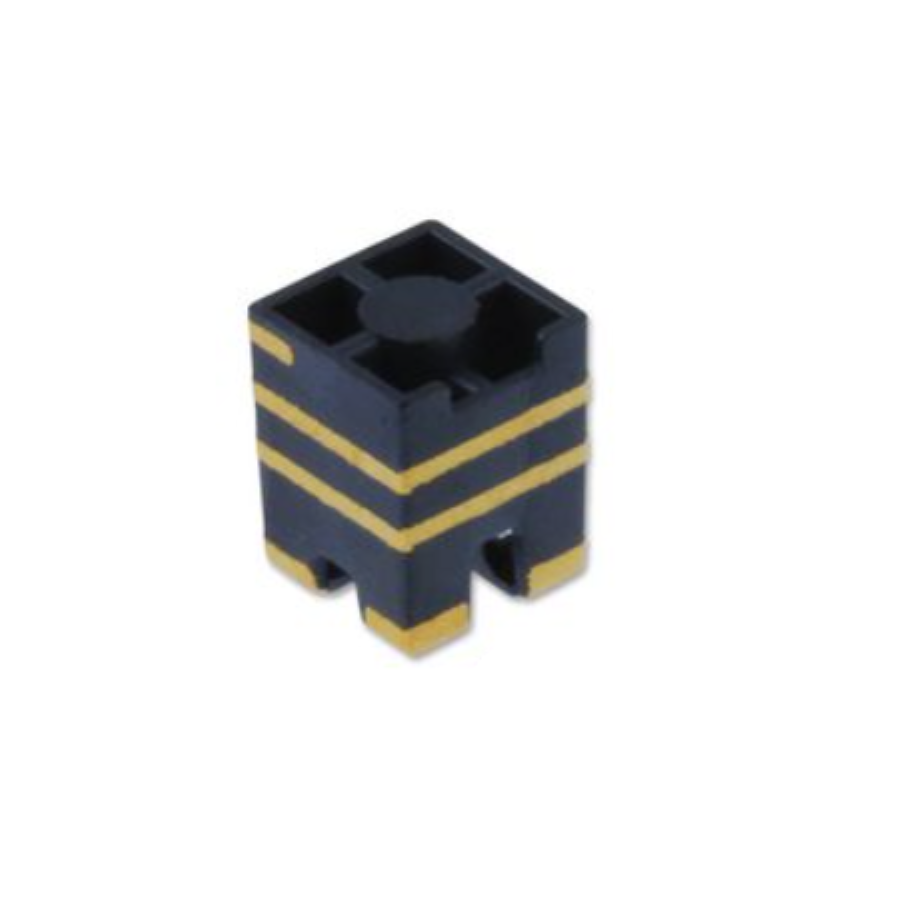

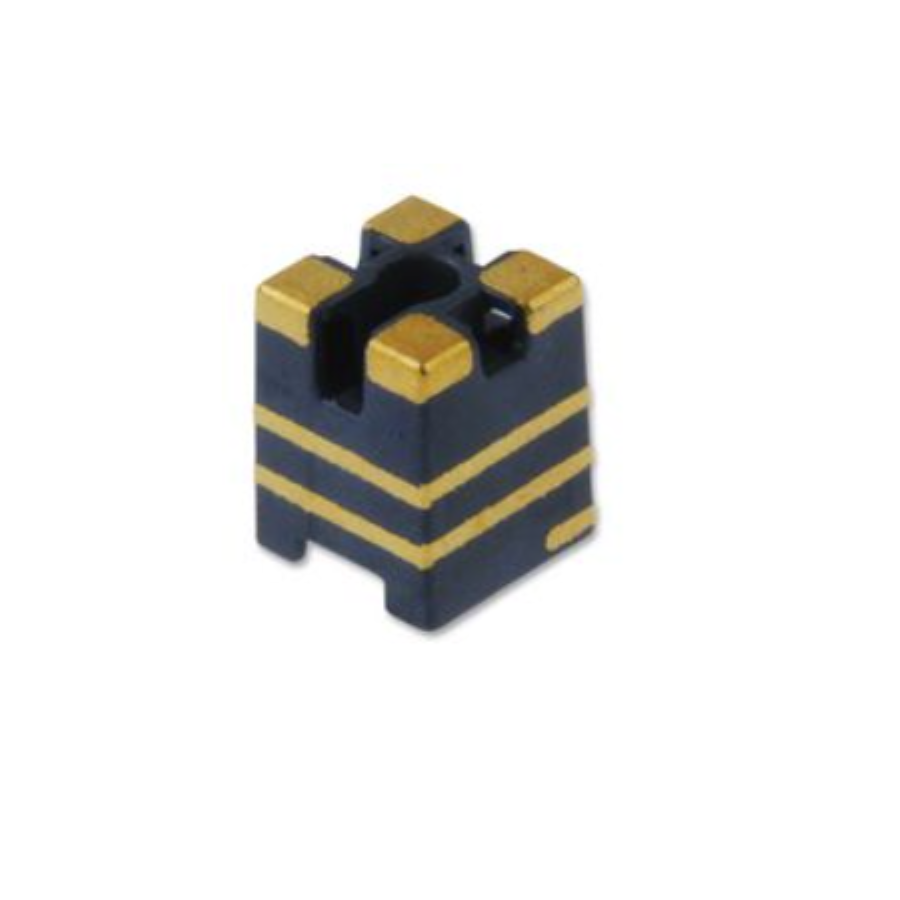

47948-0001
Manufacturer:
Molex
Mfr.Part #:
47948-0001
Datasheet:
Description:
RF - Antennas 3.14mmL×3.14mmW×4.00mmH SMD/SMT 3.6 dB
| Parameter | Value |
|---|---|
| Length | 3 mm |
| Width | 3 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Power Rating | 2 W |
| Height | 4 mm |
| Packaging | Reel |
| Thickness | 4 mm |
| Halogen Free | Low Halogen |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Impedance | 50 Ω |
| Frequency | 2.4835 GHz |
| Bandwidth | 2.4 GHz |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Gain | 3.6 dB |
| Number of Bands | 1 |
| Max Frequency | 2.4835 GHz |
| Return Loss | -7 dB |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | CN |
| Frequency Range | 2.4 GHz to 2.4835 GHz |
| Frequency Group | UHF (2 GHz to 3 GHz) |
| Antenna Type | Chip |
| Applications | Bluetooth, WLAN, Zigbee |
| Power - Max | 2 W |
Stock: 7515
Distributors
pcbx
pcbxUnit Price$1.09517
Ext.Price$1.09517
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.09517 | $1.09517 |
| 10 | $0.83270 | $8.32700 |
| 25 | $0.76345 | $19.08625 |
| 50 | $0.72486 | $36.24300 |
| 100 | $0.68822 | $68.82200 |
| 300 | $0.65627 | $196.88100 |
| 500 | $0.62581 | $312.90500 |
| 1000 | $0.62153 | $621.53000 |
| 3000 | $0.56938 | $1708.14000 |
