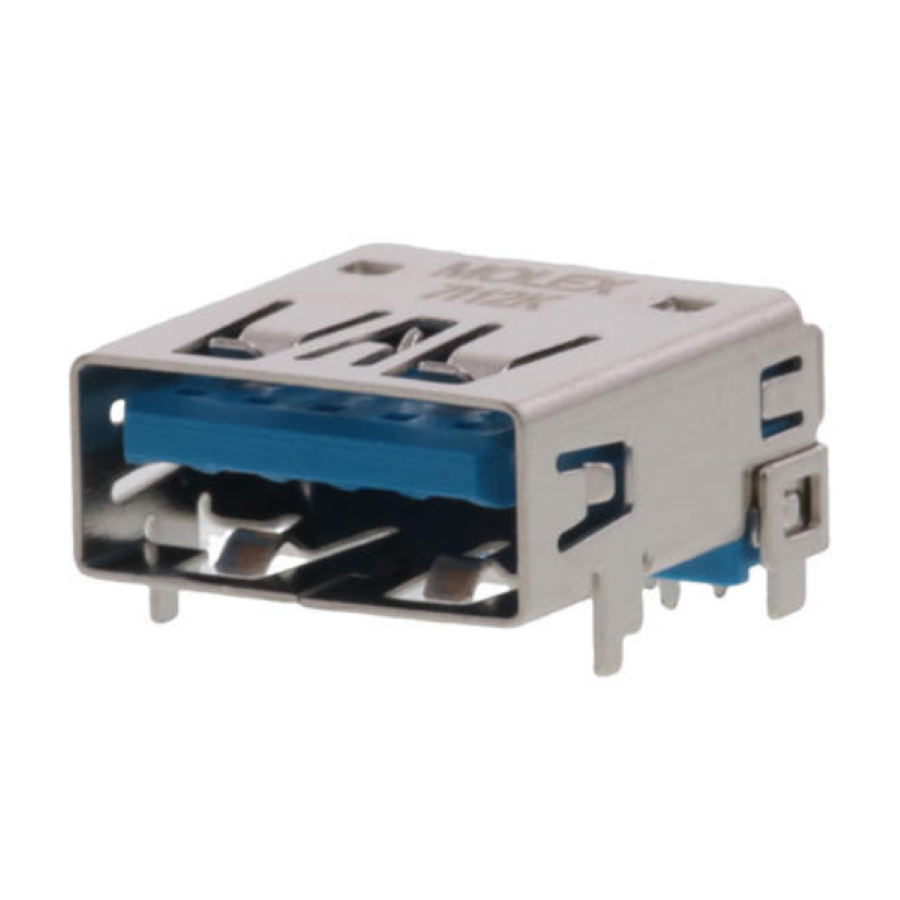

48393-0003
Manufacturer:
Molex
Mfr.Part #:
48393-0003
Datasheet:
Description:
USB Connectors Through Hole Female USB 3.0
| Parameter | Value |
|---|---|
| Length | 13.8 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -20 °C |
| Packaging | Reel |
| Voltage Rating | 30 V |
| Depth | 14.25 mm |
| Halogen Free | Low Halogen |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Copper |
| Number of Terminals | 9 |
| Current Rating | 1.8 A |
| Number of Circuits | 9 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Gender | Female |
| Shielding | Shielded |
| Number of Contacts | 9 |
| USB Standard | USB 3.0 |
| Connector Type | USB |
| Number of Rows | 2 |
| Housing Material | Thermoplastic |
| Number of Ports | 1 |
| Max Voltage Rating (AC) | 30 V |
| Plating | Gold |
| Schedule B | 8536695050 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | CN |
| Mounting Angle | Right Angle |
Stock: 2358
Distributors
pcbx
pcbxUnit Price$1.79023
Ext.Price$1.79023
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.79023 | $1.79023 |
| 10 | $1.58333 | $15.83330 |
| 25 | $1.48929 | $37.23225 |
| 50 | $1.42090 | $71.04500 |
| 100 | $1.30206 | $130.20600 |
| 300 | $1.17040 | $351.12000 |
| 500 | $1.05156 | $525.78000 |
