48471SC
Manufacturer:
Murata
Mfr.Part #:
48471SC
Datasheet:
Description:

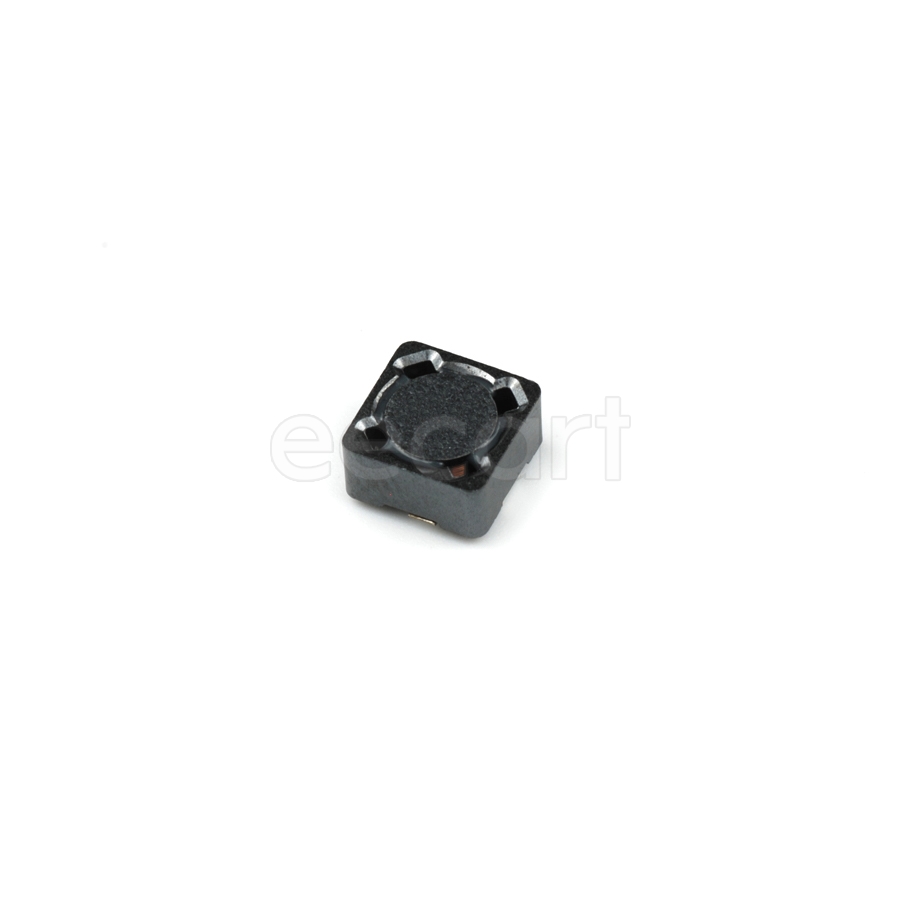

Fixed Inductors 12.20mmL×12.20mmW×6.00mmH SMD/SMT 470 µH 20 % 760 mA 900 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 6 mm |
| Length | 12.192 mm |
| Width | 12.192 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 2 |
| Composition(Kit Type) | Wirewound |
| Height | 6 mm |
| Packaging | Reel |
| Depth | 12.5 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Self Resonant Frequency | 4 MHz |
| Q Factor | 20 |
| Current Rating | 760 mA |
| DC Resistance (DCR) | 900 mΩ |
| Test Frequency | 10 kHz |
| Military Standard | Not |
| Shielding | Shielded |
| Inductance | 470 µH |
| inductance tolerance | 20 % |
| Max DC Current | 760 mA |
| DC Current | 760 mA |
| Type | Wirewound |
