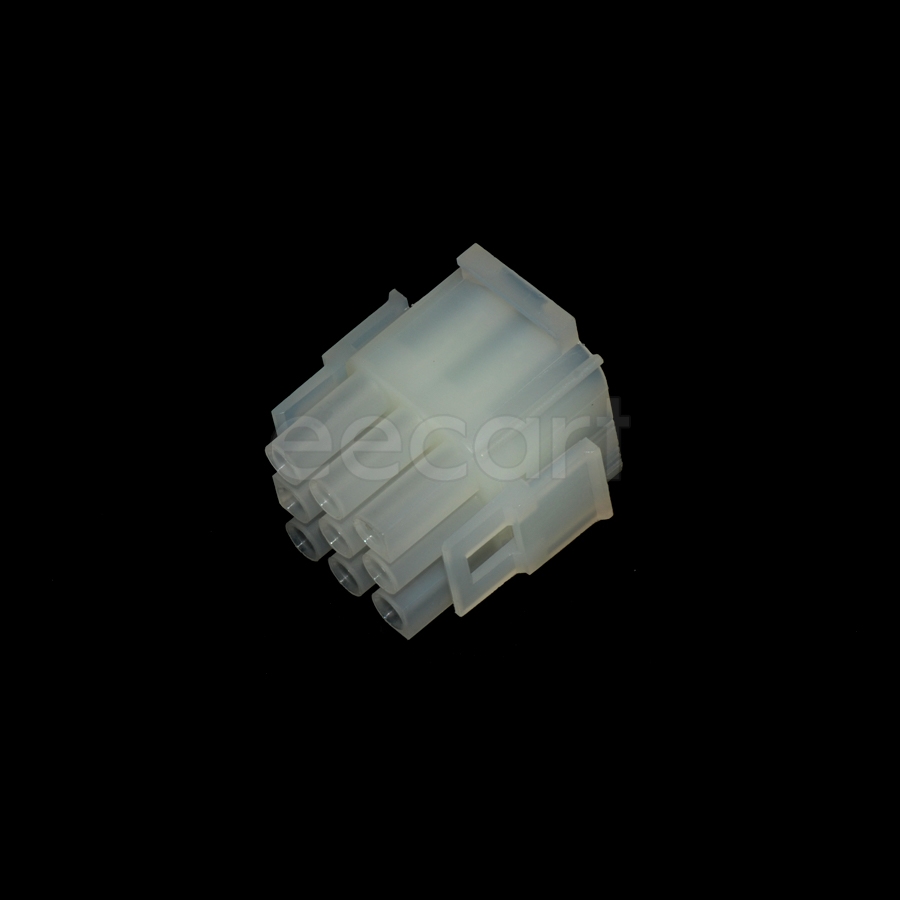

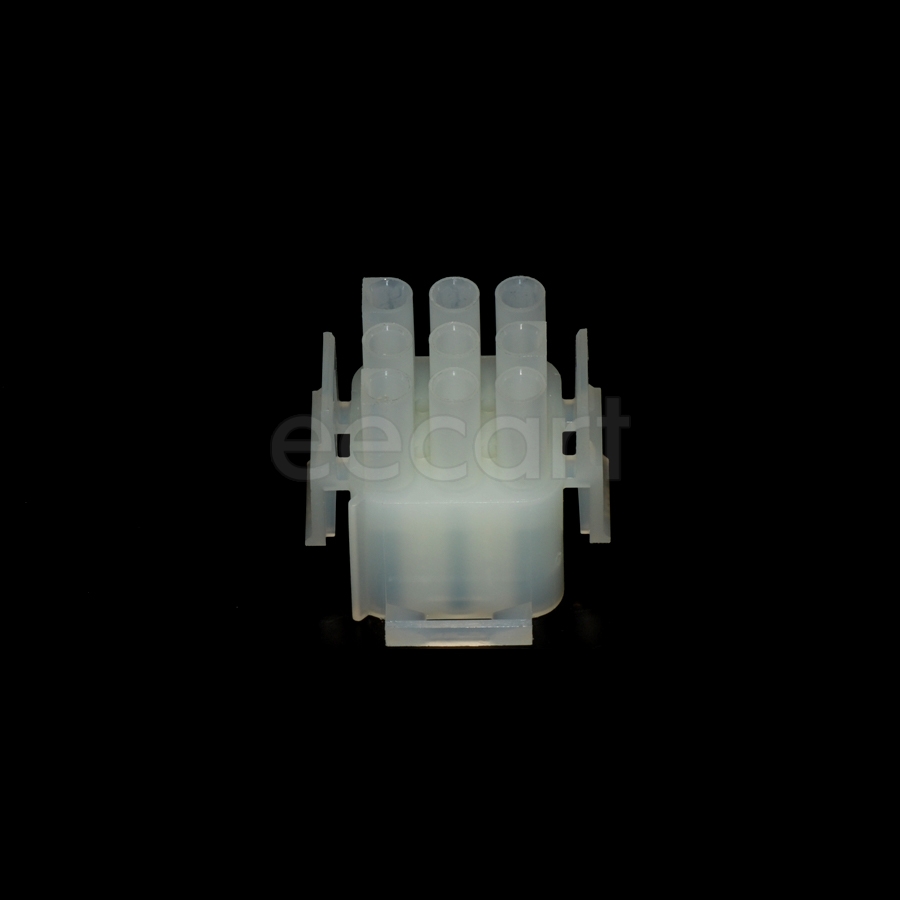

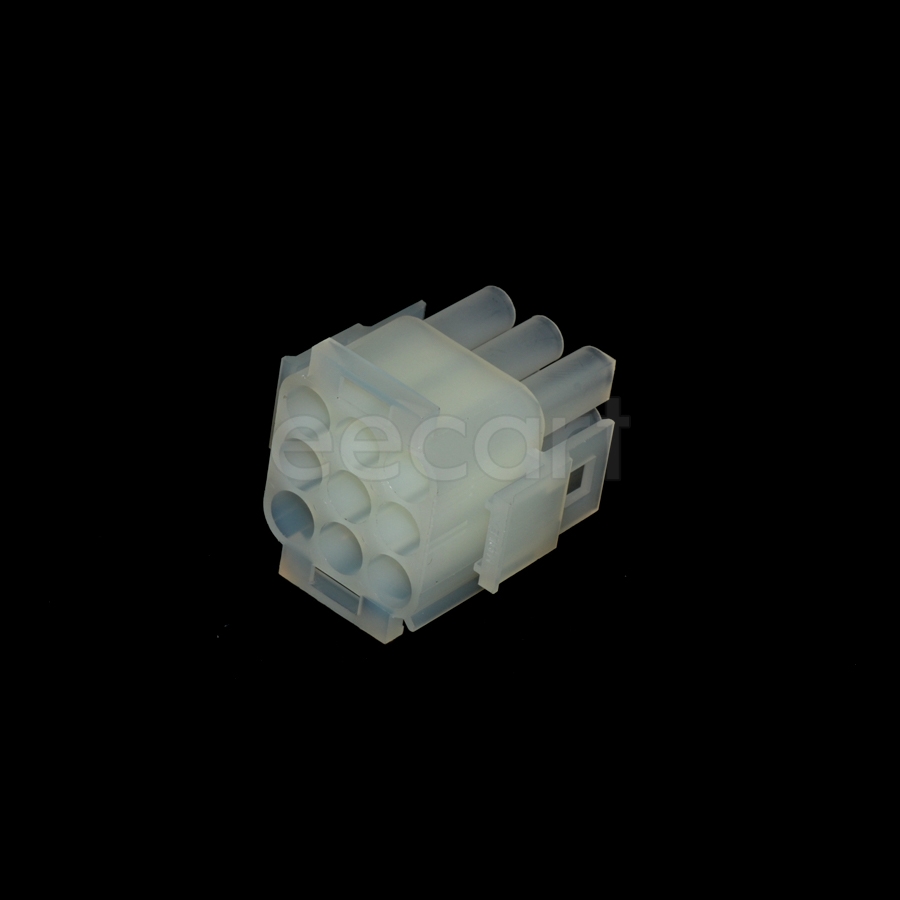

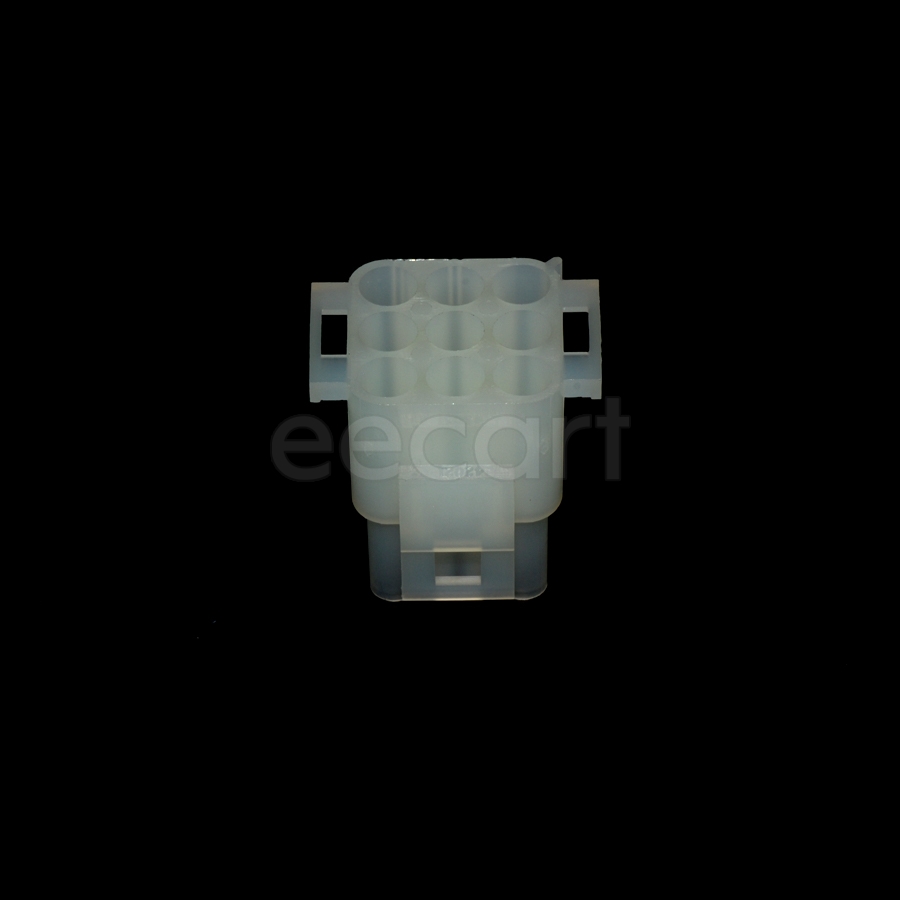

50-84-1090
Manufacturer:
Molex
Mfr.Part #:
50-84-1090
Datasheet:
Description:
Headers and Wire Housings Through Hole Plug, Socket Number of Positions:9 Pitch:6.35 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 600 V |
| Length | 20.3 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Height | 27.43 mm |
| Packaging | Bulk |
| Voltage Rating | 600 V |
| Depth | 27.43 mm |
| Halogen Free | Low Halogen |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Pitch | 6.35 mm |
| Current Rating | 11 A |
| Max Current Rating | 11 A |
| Flammability Rating | UL94 V-2 |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | White |
| Gender | Male |
| Number of Contacts | 9 |
| Connector Type | Plug, Socket |
| Number of Positions | 9 |
| Number of Rows | 3 |
| Housing Material | Nylon |
| Housing Color | Natural |
| glow wire compliant | Non-compliant |
| Contact Gender | Male |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
Stock: 7019
Distributors
pcbx
pcbxUnit Price$0.17526
Ext.Price$0.17526
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.17526 | $0.17526 |
| 10 | $0.14790 | $1.47900 |
| 50 | $0.13447 | $6.72350 |
| 100 | $0.12226 | $12.22600 |
| 500 | $0.11467 | $57.33500 |
| 1000 | $0.10755 | $107.55000 |
| 3000 | $0.10088 | $302.64000 |
