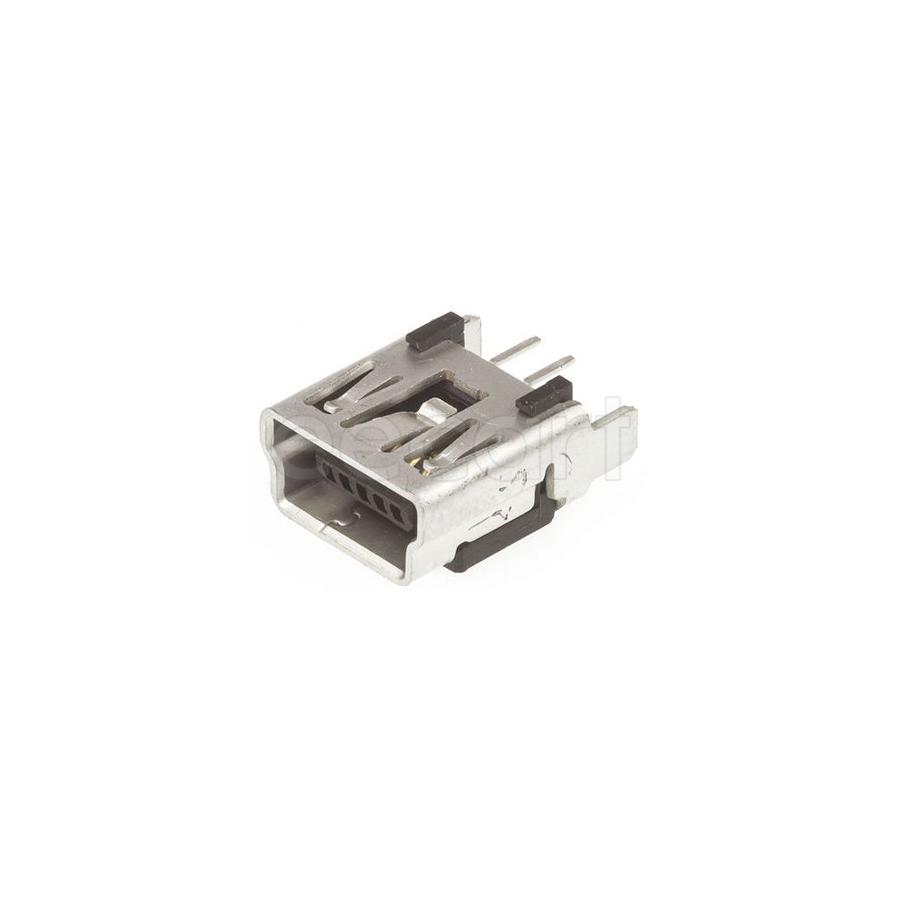

500075-1517
Manufacturer:
Molex
Mfr.Part #:
500075-1517
Datasheet:
Description:
USB Connectors Through Hole Female USB 2.0
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 30 V |
| Length | 7.7 mm |
| Width | 6.9 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 30 V |
| Number of Pins | 5 |
| Height | 7.7 mm |
| Packaging | Reel |
| Voltage Rating | 30 V |
| Depth | 4.7 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 100 MΩ |
| REACH SVHC | Unknown |
| Weight | 521.432779 mg |
| Contact Plating | Gold |
| Features | Shielded |
| Contact Material(Contact Finish) | Copper |
| Pitch | 1.6 mm |
| Number of Terminals | 5 |
| Current Rating | 100 mA |
| Max Voltage Rating (DC) | 3.03 kV |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 5 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Black, Grey |
| Gender | Female |
| Shielding | Shielded |
| Number of Contacts | 5 |
| Data Rate | 480 Mbps |
| USB Standard | USB 2.0 |
| Connector Type | USB |
| Number of Positions | 5 |
| Number of Rows | 2 |
| Housing Material | Polyamide |
| Number of Ports | 1 |
| Contact Resistance | 50 mΩ |
| Max Voltage Rating (AC) | 30 V |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | SG |
| Mounting Angle | Vertical |
Stock: 4994
Distributors
pcbx
pcbxUnit Price$2.63490
Ext.Price$2.63490
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.63490 | $2.63490 |
| 10 | $2.24077 | $22.40770 |
| 25 | $2.08488 | $52.12200 |
| 50 | $1.93983 | $96.99150 |
| 100 | $1.83383 | $183.38300 |
| 300 | $1.76367 | $529.10100 |
| 500 | $1.69618 | $848.09000 |
| 1000 | $1.61496 | $1614.96000 |
