500588000
Manufacturer:
Molex
Mfr.Part #:
500588000
Datasheet:
Description:

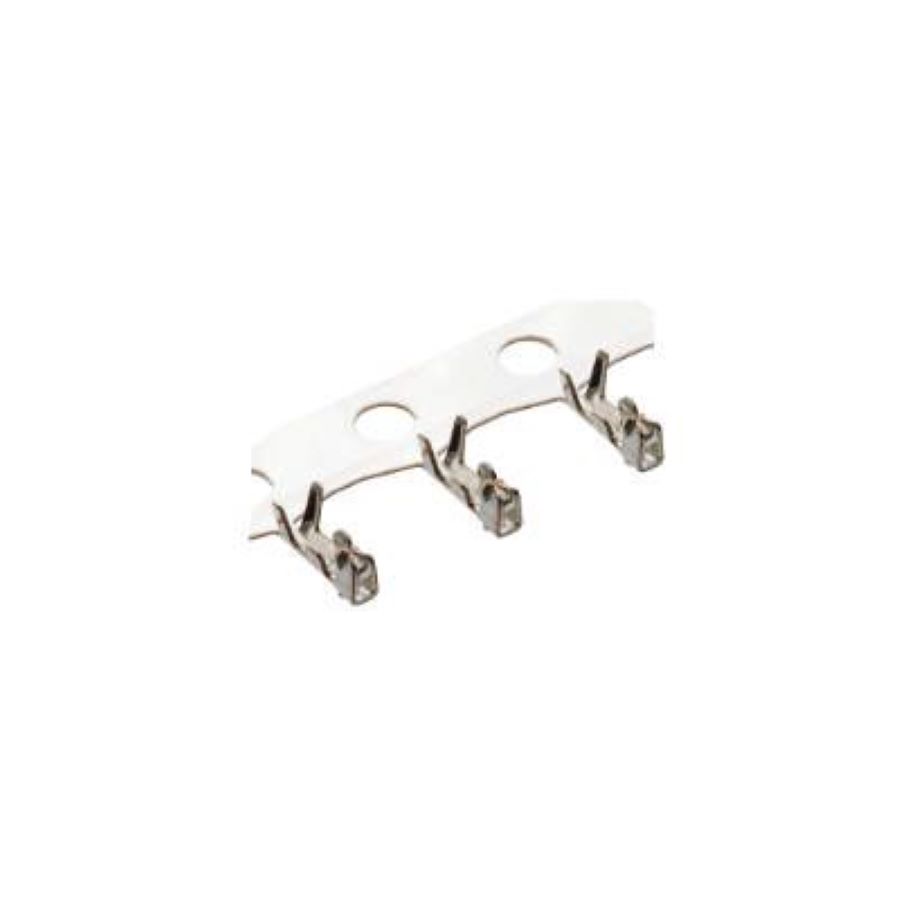

Headers and Wire Housings Cable Connector, Crimp, PCB, Signal, Socket
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 125 V |
| Length | 3.3 mm |
| Termination | Crimp |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Height | 1.62 mm |
| Packaging | Reel |
| Voltage Rating | 125 V |
| Depth | 1.35 mm |
| Halogen Free | Low Halogen |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Current Rating | 1 A |
| Max Current Rating | 1 A |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 8 months ago) |
| Gender | Female |
| Shielding | Unshielded |
| Connector Type | Connector, Crimp, PCB, Signal, Socket |
| Wire/Cable Gauge | 28 AWG |
| Contact Resistance | 20 mΩ |
| Wire Gauge (Max) | 28 AWG |
| Wire Gauge (Min) | 32 AWG |
| Plating | Tin |
| Contact Gender | Female |
| Schedule B | 8536695050 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 8 months ago) |
| Country of Origin | US |
Stock: 113156
Distributors
pcbx
pcbxUnit Price$0.01804
Ext.Price$0.01804
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.01804 | $0.01804 |
| 10 | $0.00902 | $0.09020 |
| 50 | $0.00694 | $0.34700 |
| 100 | $0.00534 | $0.53400 |
| 500 | $0.00483 | $2.41500 |
| 1000 | $0.00437 | $4.37000 |
| 3000 | $0.00382 | $11.46000 |
| 5000 | $0.00365 | $18.25000 |
| 10000 | $0.00348 | $34.80000 |
| 30000 | $0.00332 | $99.60000 |
| 50000 | $0.00317 | $158.50000 |
| 100000 | $0.00297 | $297.00000 |
