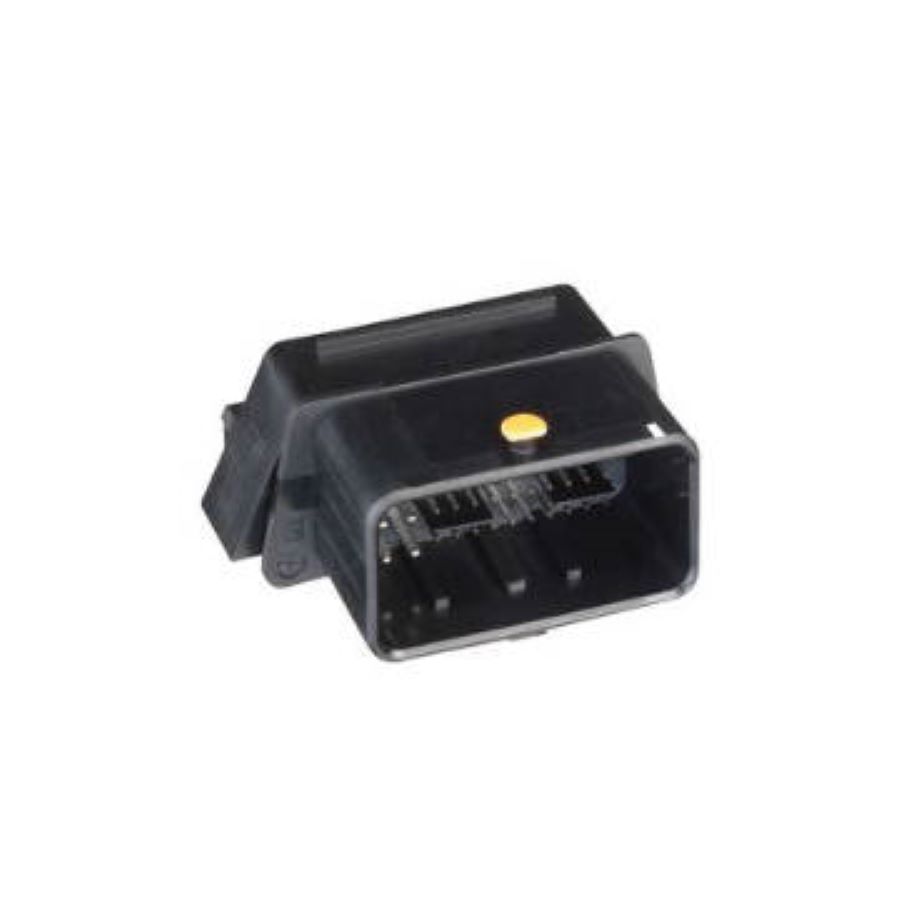

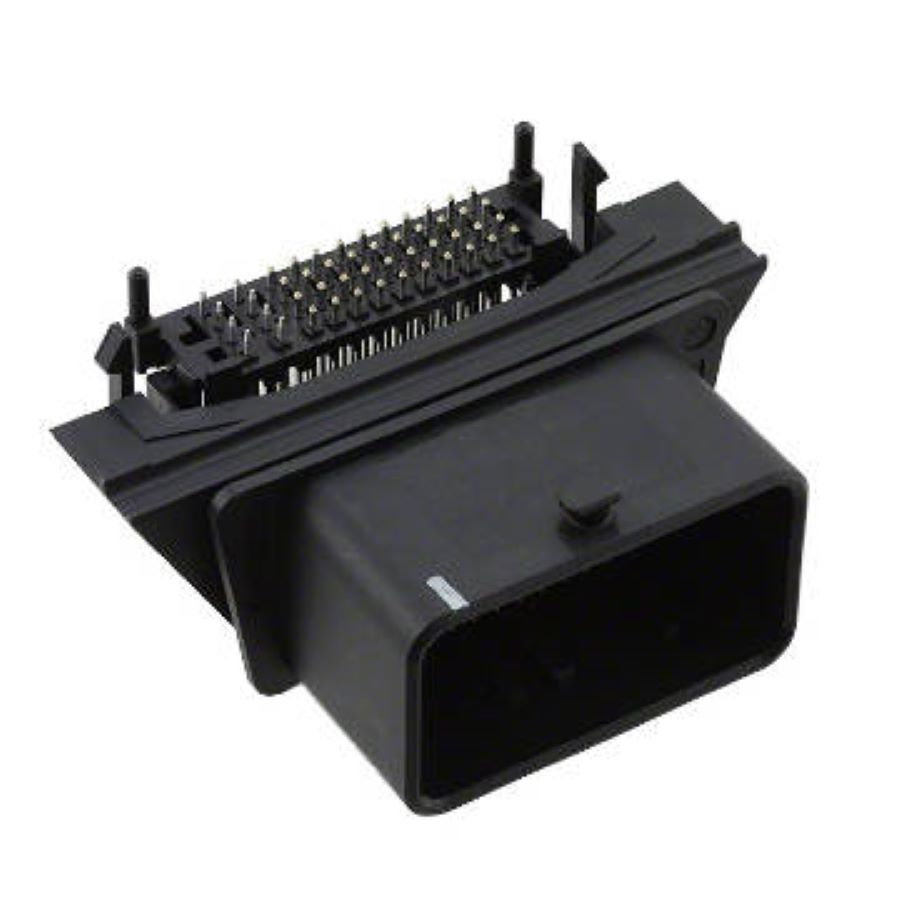

500762-0481
Manufacturer:
Molex
Mfr.Part #:
500762-0481
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:48 Pitch:2.5 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 14 V |
| Length | 69.9 mm |
| Width | 69.9 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Height | 27 mm |
| Packaging | Tray |
| Depth | 49 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Copper |
| Pitch | 2.5 mm |
| Current Rating | 6 A |
| Max Voltage Rating (DC) | 14 V |
| Number of Circuits | 48 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Black |
| Gender | Pin (Male) |
| Number of Contacts | 48 |
| Connector Type | Header |
| Number of Positions | 48 |
| Number of Rows | 4 |
| Housing Material | Polybutylene |
| Number of Ports | 1 |
| Fastening Type | Latch |
| Housing Color | Black |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Schedule B | 8536694040 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | JP |
Stock: 946
Distributors
pcbx
pcbxUnit Price$8.85536
Ext.Price$8.85536
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $8.85536 | $8.85536 |
| 10 | $8.02950 | $80.29500 |
| 25 | $7.94144 | $198.53600 |
| 50 | $7.82859 | $391.42950 |
| 100 | $6.59578 | $659.57800 |
