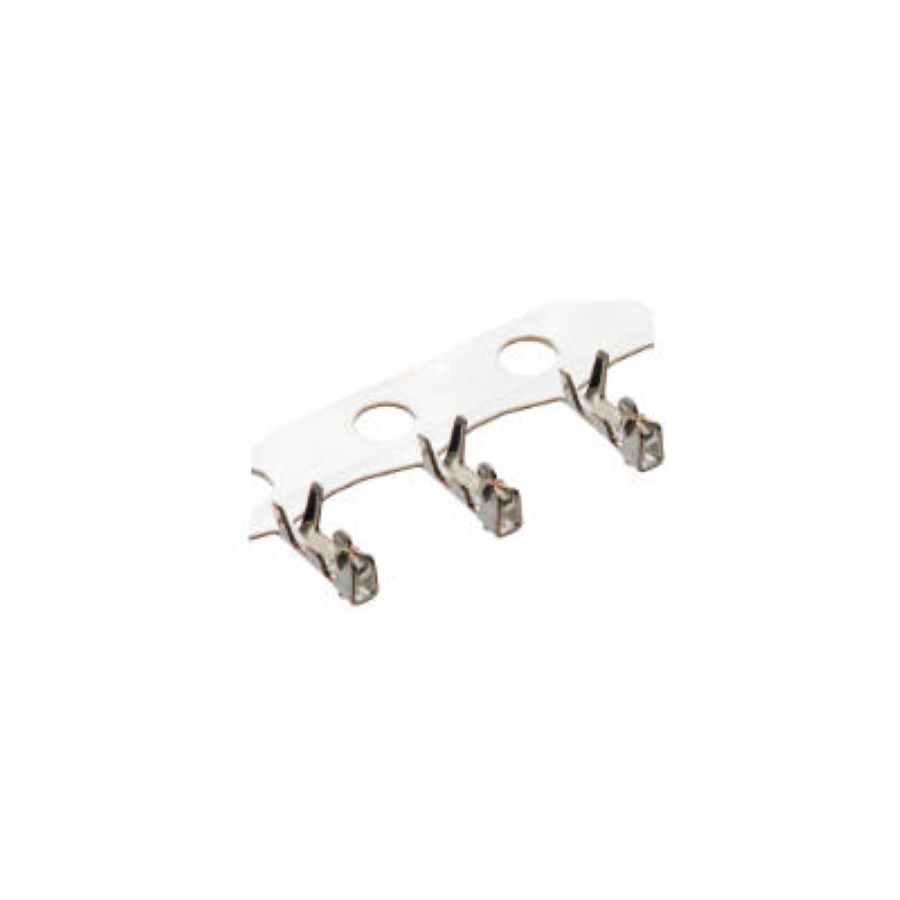

500798000
Manufacturer:
Molex
Mfr.Part #:
500798000
Datasheet:
Description:
Headers and Wire Housings Cable Connector, PCB, Signal Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 125 V |
| Length | 3.3 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Height | 1.7 mm |
| Material | Bronze |
| Packaging | Reel |
| Depth | 1.35 mm |
| Halogen Free | Low Halogen |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Current Rating | 1 A |
| Max Current Rating | 1 A |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 8 months ago) |
| Gender | Female |
| Shielding | Unshielded |
| Number of Contacts | 4 |
| Connector Type | Connector, PCB, Signal |
| Wire/Cable Gauge | 28 AWG |
| Insulation | Non-Insulated |
| Number of Rows | 1 |
| Housing Material | Polyester |
| Contact Resistance | 20 mΩ |
| Max Voltage Rating (AC) | 250 V |
| Wire Gauge (Max) | 26 AWG |
| Wire Gauge (Min) | 28 AWG |
| Housing Color | Black |
| Plating | Tin |
| Contact Gender | Female |
| Schedule B | 8536695050 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 8 months ago) |
| Country of Origin | US |
Stock: 83245
Distributors
pcbx
pcbxUnit Price$0.01674
Ext.Price$0.01674
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.01674 | $0.01674 |
| 10 | $0.00837 | $0.08370 |
| 50 | $0.00644 | $0.32200 |
| 100 | $0.00495 | $0.49500 |
| 500 | $0.00444 | $2.22000 |
| 1000 | $0.00398 | $3.98000 |
| 3000 | $0.00343 | $10.29000 |
| 5000 | $0.00325 | $16.25000 |
| 10000 | $0.00308 | $30.80000 |
| 30000 | $0.00292 | $87.60000 |
| 50000 | $0.00277 | $138.50000 |
| 100000 | $0.00267 | $267.00000 |
