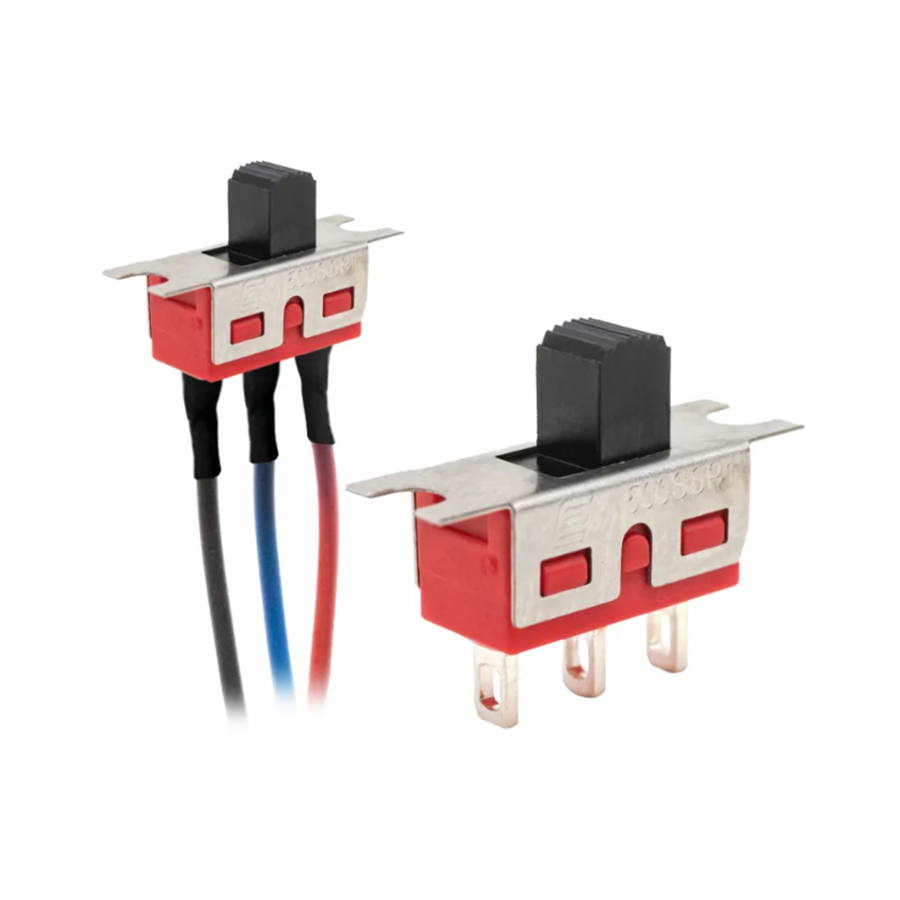

500SSP1S2M7REA
Manufacturer:
E-Switch
Mfr.Part #:
500SSP1S2M7REA
Datasheet:
Description:
Slide Switches Through Hole ON - ON SPDT Current Rating:400 mA Standard
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 20 V |
| Termination | PC Pin |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -30 °C |
| Voltage Rating (AC) | 20 V |
| Circuit Type | SPDT |
| Packaging | Bulk |
| RoHS | Compliant |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Copper Alloy |
| Current Rating | 400 mA |
| Actuator Length | 6.88 mm |
| Throw Configuration | SPDT |
| Switch Function | ON - ON |
| Electrical Life | 30 kcycles |
| Switch Travel | 2.16 mm |
| Actuator Material | Nylon, Polyamide |
| Mechanical Life | 30 kcycles |
| Actuator Type | Standard |
| Termination Style | PC Pin |
Stock: 41
Distributors
pcbx
pcbxUnit Price$2.85305
Ext.Price$2.85305
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.85305 | $2.85305 |
| 10 | $2.38389 | $23.83890 |
| 25 | $2.22059 | $55.51475 |
| 50 | $2.06847 | $103.42350 |
| 100 | $1.92677 | $192.67700 |
| 300 | $1.79478 | $538.43400 |
| 500 | $1.67183 | $835.91500 |
| 1000 | $1.55733 | $1557.33000 |
