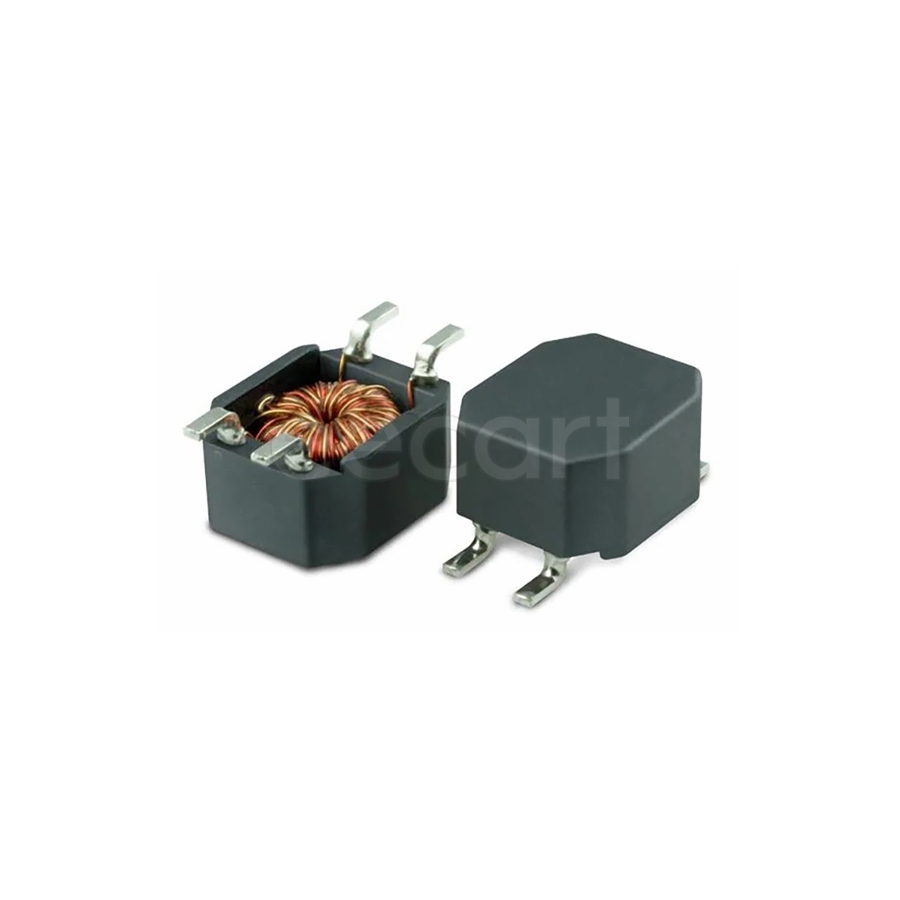

50105C
Manufacturer:
Murata
Mfr.Part #:
50105C
Datasheet:
Description:
Common Mode Chokes SMD/SMT Max Current Rating:700 mA Number of Lines:2 300 mΩ 1 mH
| Parameter | Value |
|---|---|
| Tolerance | 50 % |
| Length | 9.3 mm |
| Width | 5.8928 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 4 |
| Height | 4.4 mm |
| Packaging | Reel |
| Depth | 5.9 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Type | Power Line |
| Current Rating | 700 mA |
| DC Resistance (DCR) | 300 mΩ |
| Max Current Rating | 700 mA |
| Test Frequency | 100 kHz |
| Military Standard | Not |
| Number of Lines | 2 |
| Inductance | 1 mH |
| inductance tolerance | -30 % |
| Max DC Current | 700 mA |
| DC Current | 700 mA |
| Schedule B | 8504500000 |
Stock: 13594
Distributors
pcbx
pcbxUnit Price$0.63249
Ext.Price$0.63249
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.63249 | $0.63249 |
| 10 | $0.62093 | $6.20930 |
| 25 | $0.60958 | $15.23950 |
| 50 | $0.59844 | $29.92200 |
| 100 | $0.58750 | $58.75000 |
| 300 | $0.57676 | $173.02800 |
| 500 | $0.56622 | $283.11000 |
| 1000 | $0.55588 | $555.88000 |
