5013300800
Manufacturer:
Molex
Mfr.Part #:
5013300800
Datasheet:
Description:

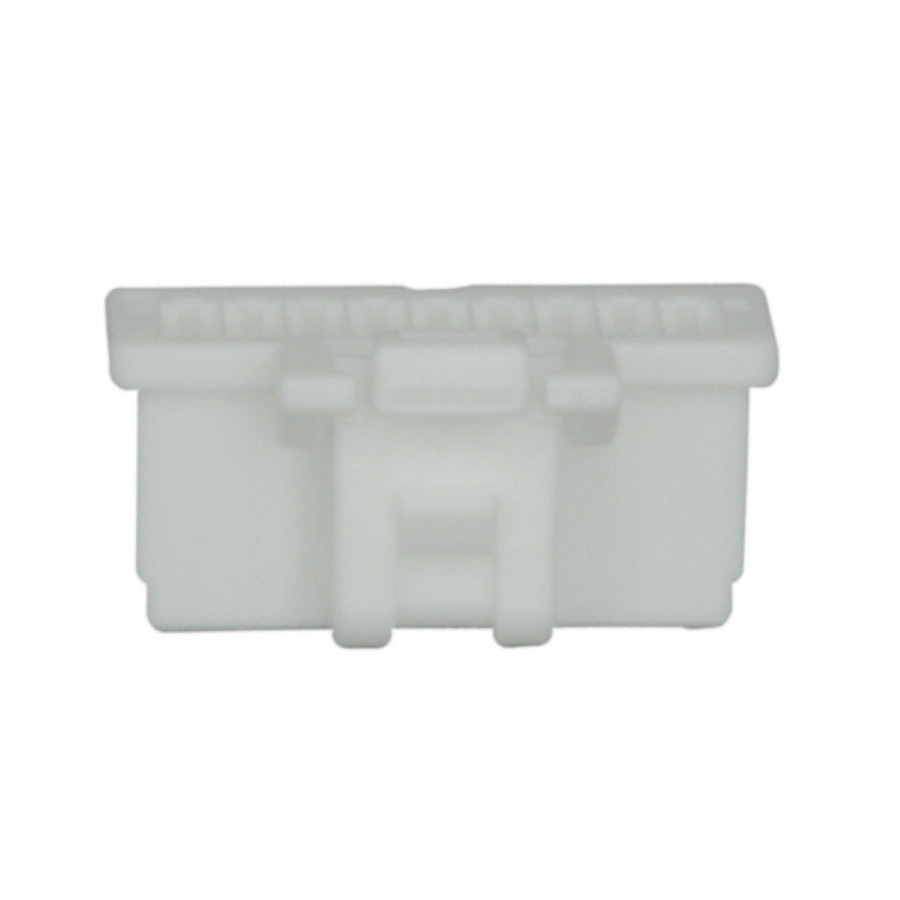

Headers and Wire Housings Cable, Free Hanging Connector, Crimp, Receptacle, Socket Number of Positions:8 Pitch:1 mm
| Parameter | Value |
|---|---|
| Length | 9.7 mm |
| Width | 4.76 mm |
| Termination | Crimp |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 8 |
| Packaging | Bulk |
| Voltage Rating | 50 V |
| Depth | 5.5 mm |
| Halogen Free | Low Halogen |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 1 mm |
| Current Rating | 1 A |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 8 months ago) |
| Color | White |
| Gender | Receptacle |
| Number of Contacts | 8 |
| Connector Type | Connector, Crimp, Receptacle, Socket |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Fastening Type | Ramp |
| Housing Color | White |
| glow wire compliant | Non-compliant |
| Contact Gender | Female |
| Schedule B | 8536695050 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 8 months ago) |
| Country of Origin | JP |
Stock: 1551
Distributors
pcbx
pcbxUnit Price$0.15340
Ext.Price$0.15340
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.15340 | $0.15340 |
| 10 | $0.07670 | $0.76700 |
| 50 | $0.07034 | $3.51700 |
| 100 | $0.06451 | $6.45100 |
| 500 | $0.05851 | $29.25500 |
| 1000 | $0.05306 | $53.06000 |
| 3000 | $0.05130 | $153.90000 |
| 5000 | $0.04959 | $247.95000 |
| 10000 | $0.04763 | $476.30000 |
