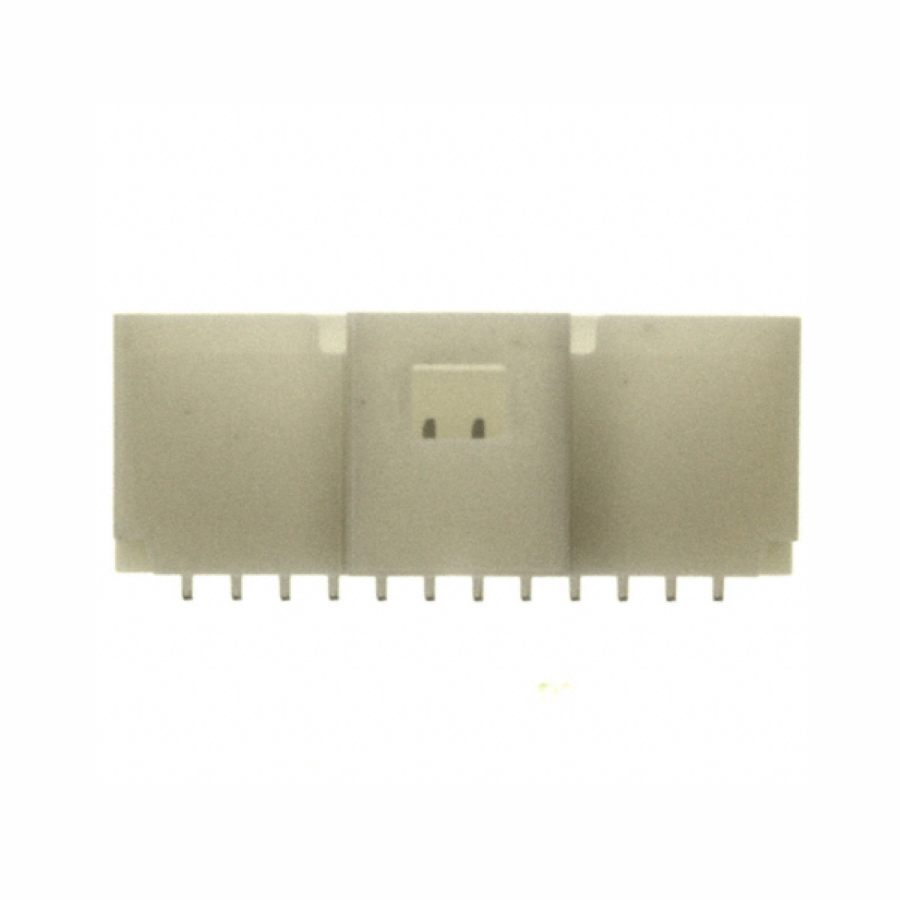

5015680207
Manufacturer:
Molex
Mfr.Part #:
5015680207
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Male Pin Number of Positions:2 Pitch:1 mm
| Parameter | Value |
|---|---|
| Length | 4 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Reel |
| Voltage Rating | 50 V |
| Depth | 5.35 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass, Bronze |
| Pitch | 1 mm |
| Current Rating | 500 mA |
| Max Voltage Rating (DC) | 50 V |
| Number of Circuits | 2 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 8 months ago) |
| Color | Natural |
| Gender | Male |
| Number of Contacts | 2 |
| Connector Type | Male Pin |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Fastening Type | Detent |
| Max Voltage Rating (AC) | 50 V |
| Housing Color | Natural |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 8 months ago) |
| Country of Origin | TW |
Stock: 10293
Distributors
pcbx
pcbxUnit Price$0.32533
Ext.Price$0.32533
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.32533 | $0.32533 |
| 10 | $0.27652 | $2.76520 |
| 25 | $0.26183 | $6.54575 |
| 50 | $0.24792 | $12.39600 |
| 100 | $0.23476 | $23.47600 |
| 300 | $0.22178 | $66.53400 |
| 500 | $0.20951 | $104.75500 |
| 1000 | $0.19156 | $191.56000 |
