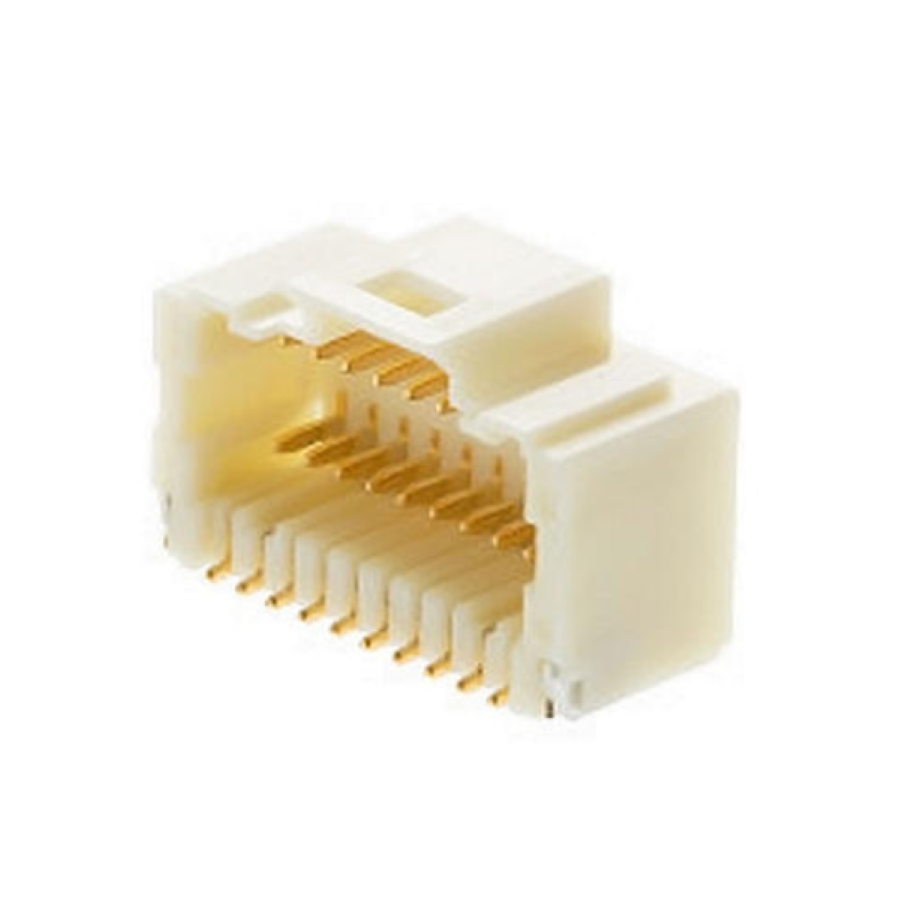

501571-3007
Manufacturer:
Molex
Mfr.Part #:
501571-3007
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Male Pin Number of Positions:30 Pitch:1 mm
| Parameter | Value |
|---|---|
| Length | 18 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 50 V |
| Packaging | Reel |
| Voltage Rating | 50 V |
| Depth | 6.5 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 1 mm |
| Current Rating | 800 mA |
| Max Voltage Rating (DC) | 5.05 kV |
| Number of Circuits | 30 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Natural |
| Gender | Male |
| Number of Contacts | 30 |
| Connector Type | Male Pin |
| Number of Positions | 30 |
| Number of Rows | 2 |
| Row Spacing | 2.667 mm |
| Housing Material | Thermoplastic |
| Fastening Type | Latch |
| Max Voltage Rating (AC) | 50 V |
| Housing Color | Natural |
| Plating | Gold |
| glow wire compliant | Non-compliant |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | VN |
Stock: 1981
Distributors
pcbx
pcbxUnit Price$1.48330
Ext.Price$1.48330
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.48330 | $1.48330 |
| 10 | $1.26444 | $12.64440 |
| 25 | $1.19835 | $29.95875 |
| 50 | $1.13572 | $56.78600 |
| 100 | $1.07636 | $107.63600 |
| 300 | $0.93597 | $280.79100 |
| 500 | $0.81390 | $406.95000 |
| 1000 | $0.74464 | $744.64000 |
