5016451020
Manufacturer:
Molex
Mfr.Part #:
5016451020
Datasheet:
Description:

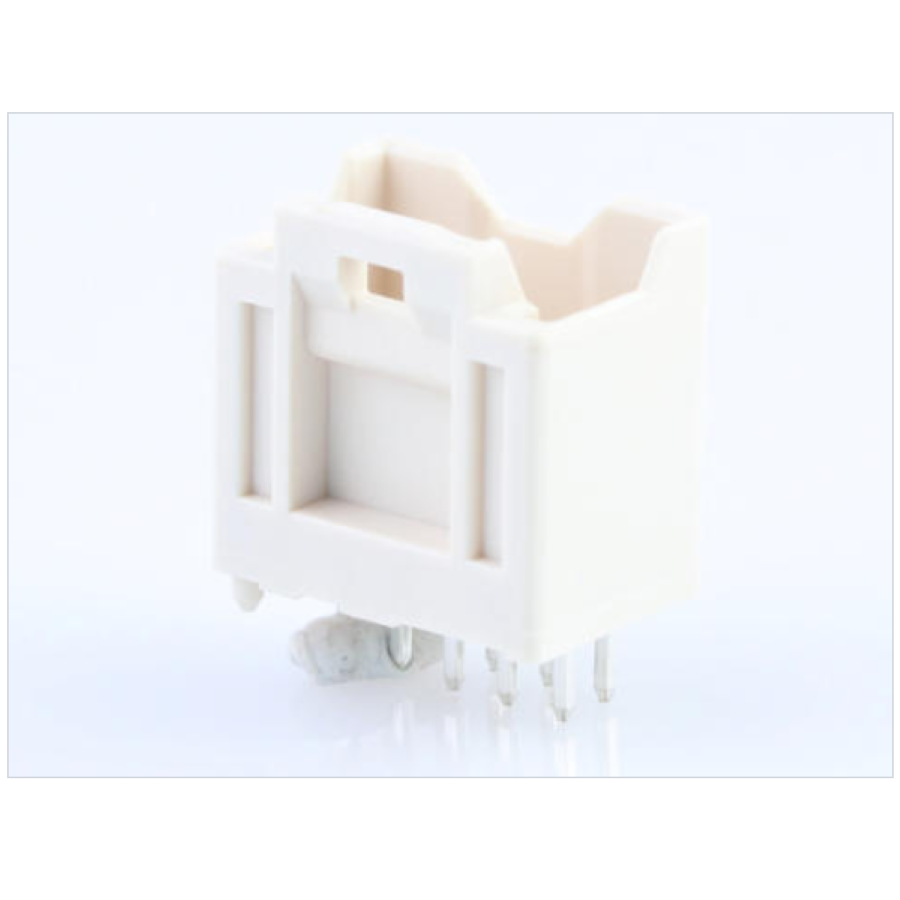

Headers and Wire Housings Through Hole Male Pin Number of Positions:10 Pitch:2 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Length | 12 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Height | 11.75 mm |
| Packaging | Tray |
| Depth | 8.2 mm |
| Lead Pitch | 2 mm |
| Contact Plating | Gold |
| Pitch | 2 mm |
| Current Rating | 300 mA |
| Max Voltage Rating (DC) | 250 V |
| Number of Circuits | 10 |
| Orientation | Vertical, Right Angle |
| Lifecycle Status | Production (Last Updated: 8 months ago) |
| Color | Natural |
| Gender | Male |
| Number of Contacts | 10 |
| Connector Type | Male Pin |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Row Spacing | 2.0066 mm |
| Housing Material | Polyamide |
| Fastening Type | Latch |
| Max Voltage Rating (AC) | 250 V |
| Housing Color | Natural |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 8 months ago) |
| Country of Origin | VN |
| Termination Post Length | 3.2 mm |
| Voltage Rating | 250 V |
| RoHS | Compliant |
| Contact Material(Contact Finish) | Brass |
Stock: 692
Distributors
pcbx
pcbxUnit Price$0.37699
Ext.Price$0.37699
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.37699 | $0.37699 |
| 10 | $0.35532 | $3.55320 |
| 25 | $0.33490 | $8.37250 |
| 50 | $0.31565 | $15.78250 |
| 100 | $0.29611 | $29.61100 |
| 300 | $0.27778 | $83.33400 |
| 500 | $0.26058 | $130.29000 |
| 1000 | $0.24445 | $244.45000 |
| 3000 | $0.22932 | $687.96000 |
| 5000 | $0.21511 | $1075.55000 |
