5016461600
Manufacturer:
Molex
Mfr.Part #:
5016461600
Datasheet:
Description:

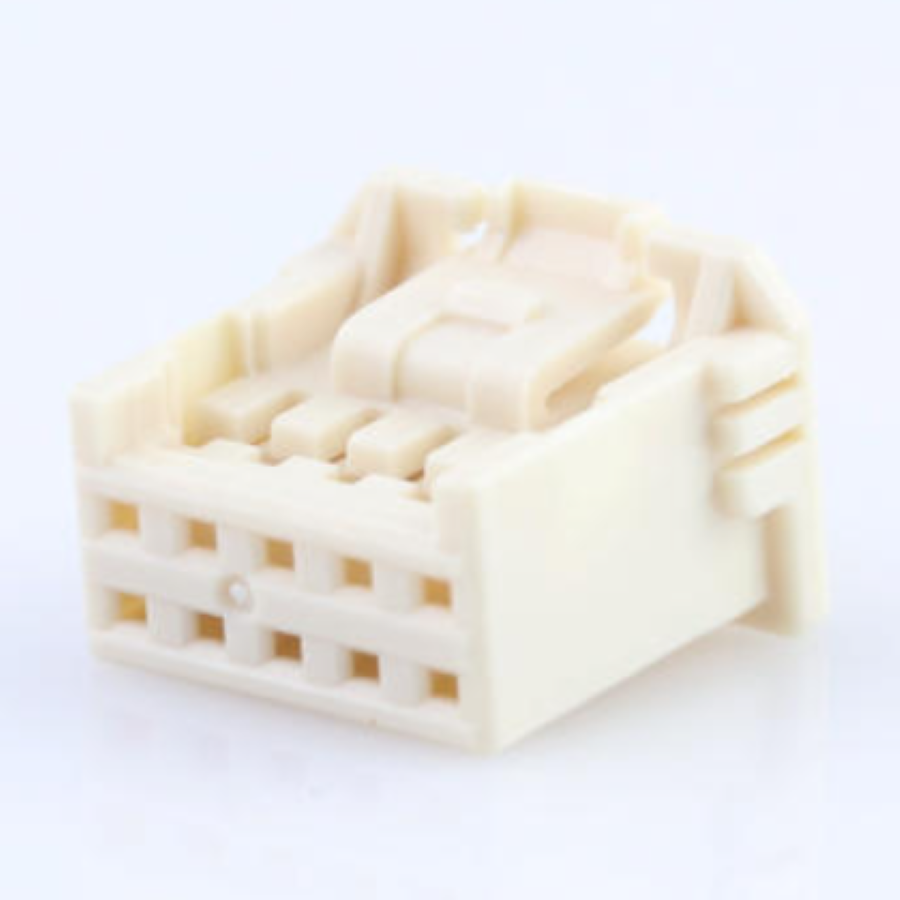

Headers and Wire Housings Cable, Free Hanging Receptacle, Socket Number of Positions:16 Pitch:2 mm
| Parameter | Value |
|---|---|
| Length | 18 mm |
| Termination | Crimp |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Packaging | Bulk |
| Depth | 11.05 mm |
| Halogen Free | Low Halogen |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Pitch | 2 mm |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 8 months ago) |
| Color | Natural |
| Gender | Receptacle |
| Number of Contacts | 16 |
| Connector Type | Receptacle, Socket |
| Wire/Cable Gauge | 28 AWG |
| Number of Positions | 16 |
| Number of Rows | 2 |
| Row Spacing | 2.0066 mm |
| Housing Material | Nylon |
| Fastening Type | Latch |
| Wire Gauge (Max) | 28 AWG |
| Wire Gauge (Min) | 22 AWG |
| Housing Color | Natural |
| glow wire compliant | Non-compliant |
| Contact Gender | Female |
| Schedule B | 8536695050 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 8 months ago) |
| Country of Origin | US |
Stock: 3433
Distributors
pcbx
pcbxUnit Price$0.23923
Ext.Price$0.23923
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.23923 | $0.23923 |
| 10 | $0.21206 | $2.12060 |
| 50 | $0.18797 | $9.39850 |
| 100 | $0.15543 | $15.54300 |
| 500 | $0.12853 | $64.26500 |
| 1000 | $0.12202 | $122.02000 |
| 3000 | $0.11584 | $347.52000 |
| 5000 | $0.10996 | $549.80000 |
