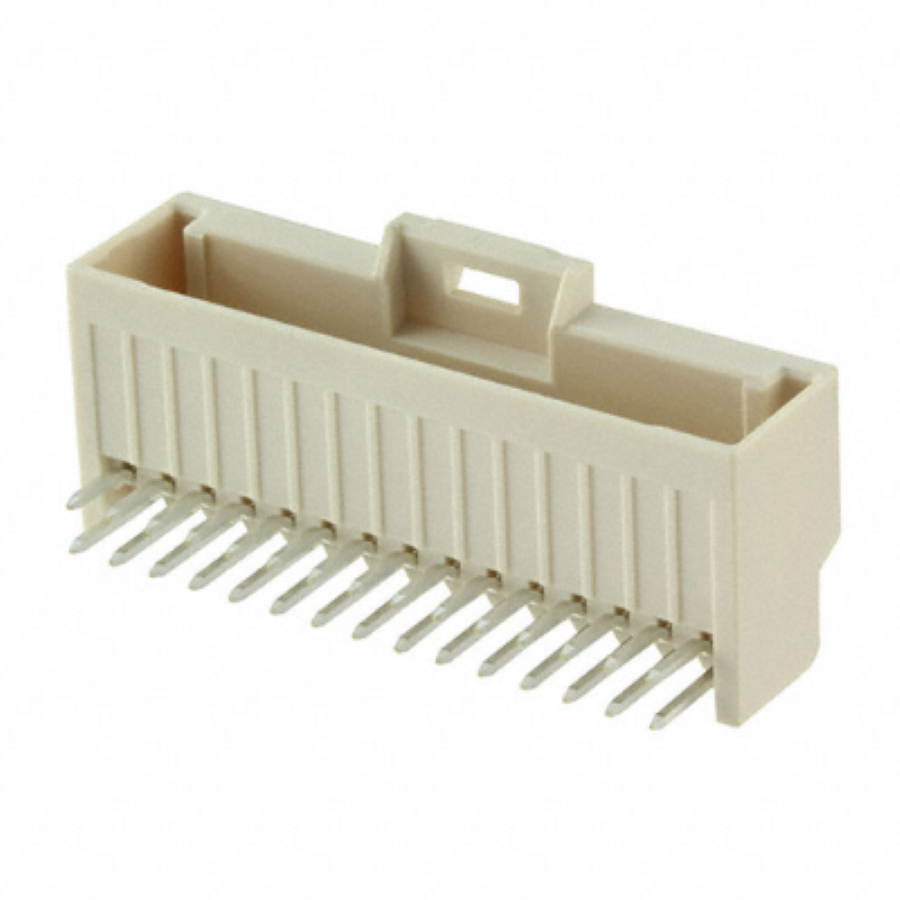

5018763040
Manufacturer:
Molex
Mfr.Part #:
5018763040
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:30 Pitch:2 mm
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Voltage Rating (AC) | 250 V |
| Packaging | Tray |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2 mm |
| Current Rating | 2 A |
| Number of Circuits | 30 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 8 months ago) |
| Color | Natural |
| Gender | Pin (Male) |
| Number of Contacts | 30 |
| Connector Type | Male Pin |
| Number of Positions | 30 |
| Number of Rows | 2 |
| Row Spacing | 2.0066 mm |
| Housing Material | Nylon |
| Fastening Type | Latch |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 8 months ago) |
| Country of Origin | US |
| Termination Post Length | 3.2 mm |
Stock: 2425
Distributors
pcbx
pcbxUnit Price$1.43900
Ext.Price$1.43900
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.43900 | $1.43900 |
| 10 | $1.22134 | $12.21340 |
| 25 | $1.15569 | $28.89225 |
| 50 | $1.09356 | $54.67800 |
| 100 | $1.03477 | $103.47700 |
| 300 | $0.97914 | $293.74200 |
| 500 | $0.92650 | $463.25000 |
| 1000 | $0.88230 | $882.30000 |
| 3000 | $0.83364 | $2500.92000 |
| 5000 | $0.78766 | $3938.30000 |
