501951-4010
Manufacturer:
Molex
Mfr.Part #:
501951-4010
Datasheet:
Description:

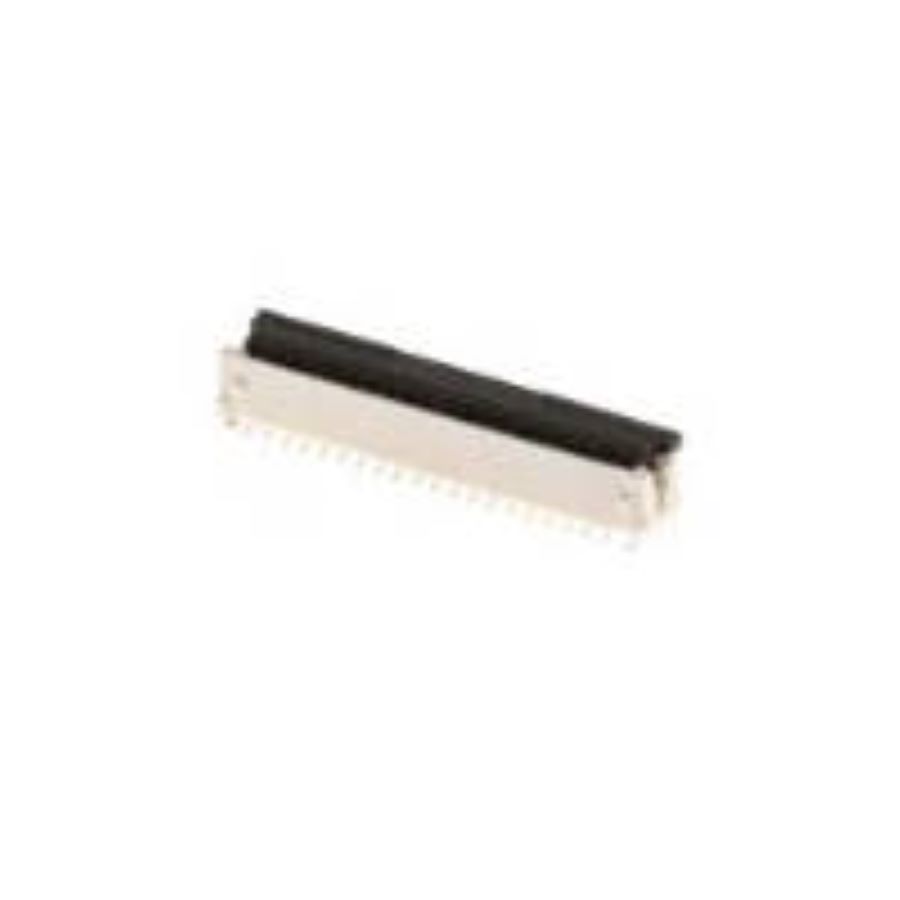

FFC / FPC SMD/SMT Number of Positions:40 400 mA 50 V
| Parameter | Value |
|---|---|
| Length | 22.8 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Voltage Rating (AC) | 50 V |
| Material | Bronze |
| Packaging | Reel |
| Voltage Rating | 50 V |
| Depth | 4.5 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 1 mm |
| Current Rating | 400 mA |
| Max Voltage Rating (DC) | 50 V |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 40 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Gender | Receptacle |
| Number of Contacts | 40 |
| ELV | Compliant |
| Number of Positions | 40 |
| Number of Rows | 1 |
| Housing Material | Polymer |
| Contact Resistance | 40 mΩ |
| Max Voltage Rating (AC) | 50 V |
| Actuator Material | Glass, Nylon, Polyamide |
| Housing Color | White |
| Plating | Gold |
| Stackable | No |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | JP |
