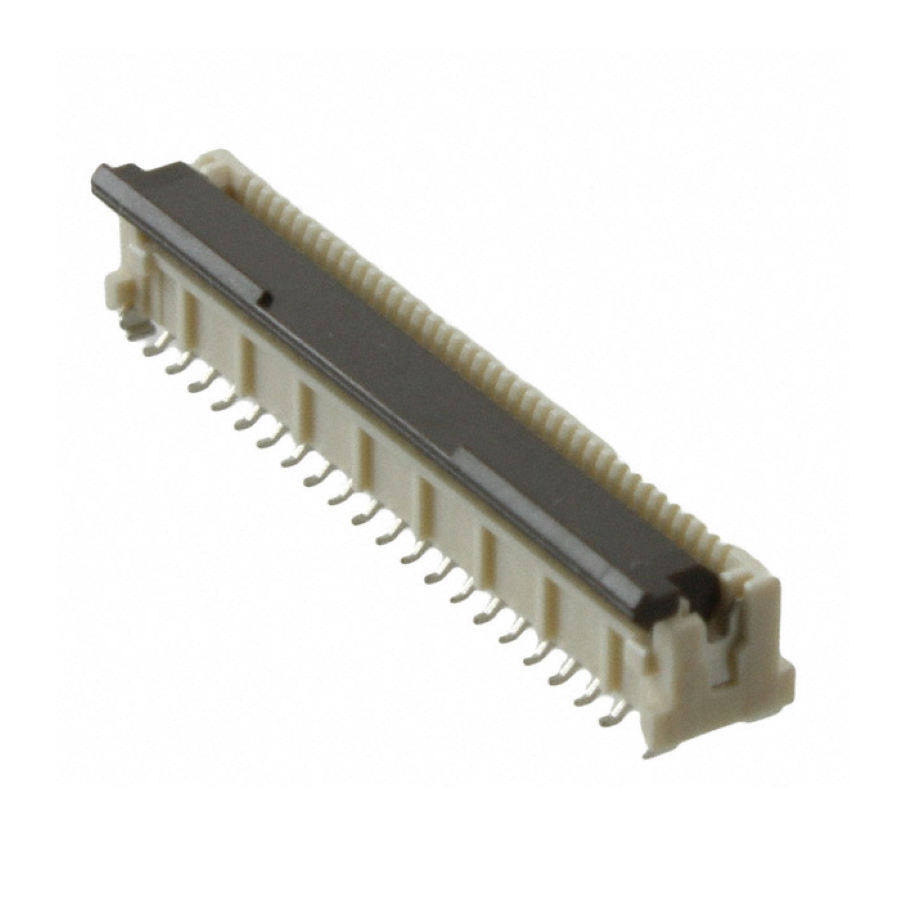

5019514000
Manufacturer:
Molex
Mfr.Part #:
5019514000
Datasheet:
Description:
FFC / FPC SMD/SMT Number of Positions:40 400 mA 50 V
| Parameter | Value |
|---|---|
| Length | 22.8 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Voltage Rating (AC) | 50 V |
| Packaging | Reel |
| Voltage Rating | 50 V |
| Depth | 4.5 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 1 mm |
| Current Rating | 400 mA |
| Max Voltage Rating (DC) | 50 V |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 40 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 8 months ago) |
| Gender | Receptacle |
| Number of Contacts | 40 |
| Number of Positions | 40 |
| Number of Rows | 1 |
| Housing Material | Polymer |
| Wire/Cable Type | Straight |
| Contact Resistance | 40 mΩ |
| Max Voltage Rating (AC) | 50 V |
| Actuator Material | Glass, Nylon, Polyamide |
| Housing Color | White |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 8 months ago) |
| Country of Origin | JP |
| Mounting Angle | Vertical |
Stock: 4327
Distributors
pcbx
pcbxUnit Price$0.88822
Ext.Price$0.88822
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.88822 | $0.88822 |
| 10 | $0.75650 | $7.56500 |
| 25 | $0.70903 | $17.72575 |
| 50 | $0.67512 | $33.75600 |
| 100 | $0.64284 | $64.28400 |
| 300 | $0.60732 | $182.19600 |
| 500 | $0.57376 | $286.88000 |
| 1000 | $0.54637 | $546.37000 |
