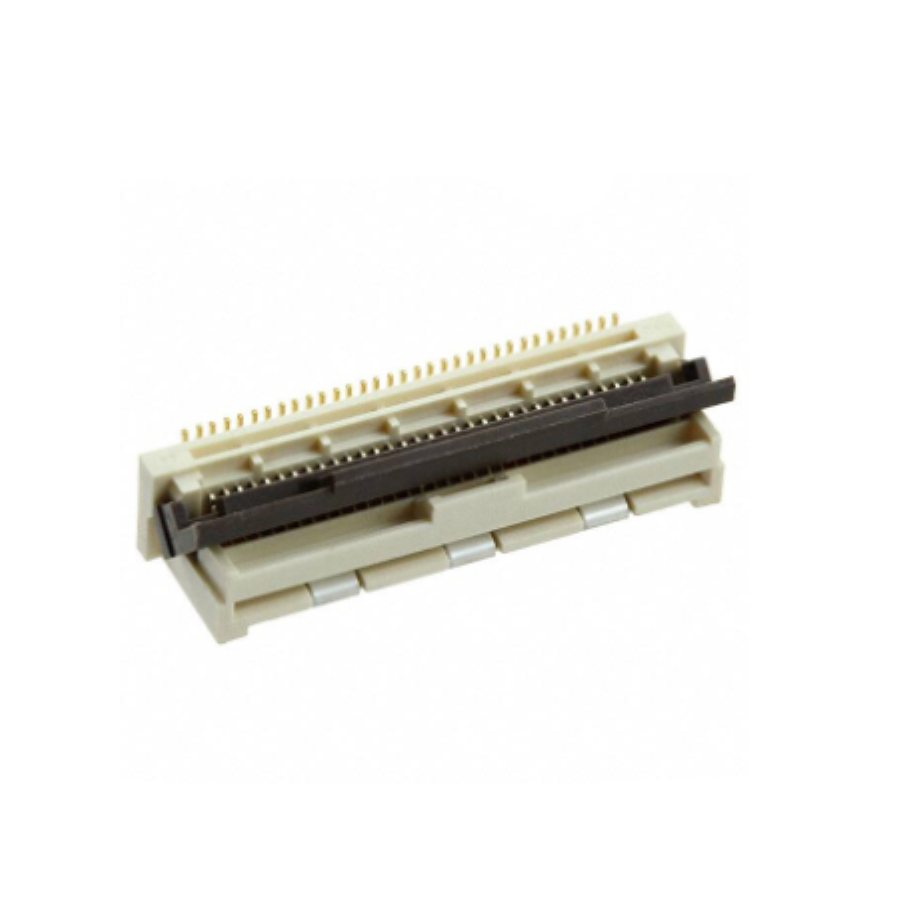

502231-3300
Manufacturer:
Molex
Mfr.Part #:
502231-3300
Datasheet:
Description:
FFC / FPC SMD/SMT Number of Positions:33 400 mA 50 V
| Parameter | Value |
|---|---|
| Length | 19.8 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Voltage Rating (AC) | 50 V |
| Packaging | Reel |
| Voltage Rating | 50 V |
| Depth | 4.3 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 500 µm |
| Current Rating | 400 mA |
| Max Voltage Rating (DC) | 50 V |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 33 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Number of Contacts | 33 |
| Number of Positions | 33 |
| Number of Rows | 1 |
| Housing Material | Polymer |
| Contact Location | Top |
| Contact Resistance | 40 mΩ |
| Max Voltage Rating (AC) | 50 V |
| Actuator Material | Glass, Nylon, Polyamide |
| Housing Color | Natural |
| Plating | Gold |
| Stackable | No |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | JP |
| Mounting Angle | Vertical |
Stock: 154
Distributors
pcbx
pcbxUnit Price$2.22152
Ext.Price$2.22152
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.22152 | $2.22152 |
| 10 | $1.81724 | $18.17240 |
| 25 | $1.67797 | $41.94925 |
| 50 | $1.66580 | $83.29000 |
